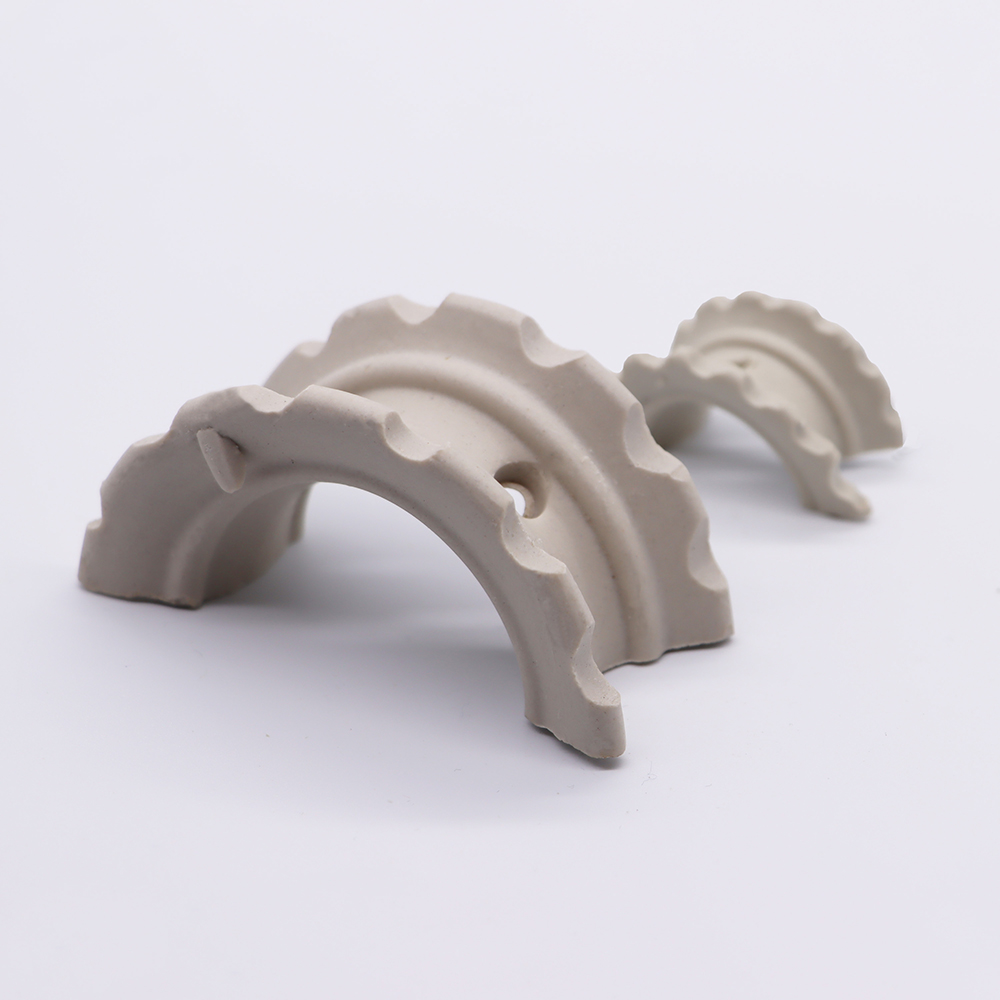

Ceramic Super Intalox Saddle with excellent acid resistance and heat resistance. They can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently their application ranges are very wide. Ceramic Intalox Saddle can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc. Ceramic Super Intalox Saddles are used in two main fields but have different properties depending on the application. One field is the chemical and petrochemical industries and another is in environmental areas such as RTO equipment.
| SiO2 + Al2O3 | >92% | CaO | <1.0% |
| SiO2 | >76% | MgO | <0.5% |
| Al2O3 | >17% | K2O+Na2O | <3.5% |
| Fe2O3 | <1.0% | Other | <1% |
| Water absorption | <0.5% | Moh's hardness | >6.5 scale |
| Porosity | <1% | Acid resistance | >99.6% |
| Specific gravity | 2.3-2.40 g/cm3 | Alkali resistance | >85% |
| Max operation temp | 950~1100℃ | ||
| Size | Thickness (mm) | Specific surface (m2/m3) | Void volume (%) | Bulk numbers (Pcs/m3) | Package density (kg/m3) |
|---|---|---|---|---|---|
| 25mm | 3-3.5 | 160 | 78 | 53000 | 650 |
| 38mm | 4-5 | 102 | 80 | 16000 | 600 |
| 50mm | 5-6 | 88 | 80 | 7300 | 580 |
| 76mm | 8.5-9.5 | 58 | 82 | 1800 | 550 |
Recommended for large volume orders and standard commercial freight.
Fast track delivery designed for sample requests and urgent testing batches.
| Package type | Container load capacity | ||
|---|---|---|---|
| 20 GP | 40 GP | 40 HQ | |
| Ton bag put on pallets | 20-22 m3 | 40-42 m3 | 40-44 m3 |
| Plastic 25kg bags put on pallets with film | 20 m3 | 40 m3 | 40 m3 |
| Cartons put on pallets with film | 20 m3 | 40 m3 | 40 m3 |
| Delivery time | Within 7 working days (for common type) | 10 working days (for common type) | 10 working days (for common type) |
