Which alumina grade of inert ceramic ball should I choose for catalyst bed support?

Standard 17–23% Al2O3 inert balls suit most hydrotreating and reforming catalyst supports. Choose 23–30% for higher crush strength, and 99% alumina where high-temperature steam could cause silica leaching that would poison downstream catalysts.

What information do you need to recommend tower packing?

Please share the tower diameter and bed height, the service (distillation, absorption, stripping or scrubbing), the medium and its corrosivity, operating temperature and pressure, and any pressure-drop or capacity targets. Our engineers then propose packing type, material and size.

Can I receive samples and technical data sheets before ordering?

Yes. Samples of standard sizes and technical data sheets covering chemical composition, bulk density, crush strength and other key properties can be provided for evaluation before a production order.

How are ceramic and metal packing products packed for export?

Depending on product and volume, we use cartons, jumbo bags, plastic drums or wooden cases on fumigation-free or fumigated pallets, with clear marking for each size and batch to simplify site receiving.

Where is Zhongtai located and can buyers visit the factory?

We are based in Pingxiang, Jiangxi Province, a recognized Chinese hub for industrial ceramics and chemical packing. Buyers and third-party inspectors are welcome to visit; Korean customers audited our ceramic production in July 2018.

China Ceramic Raschig Ring Tower Packing Manufacturers, Factory

1 / 1

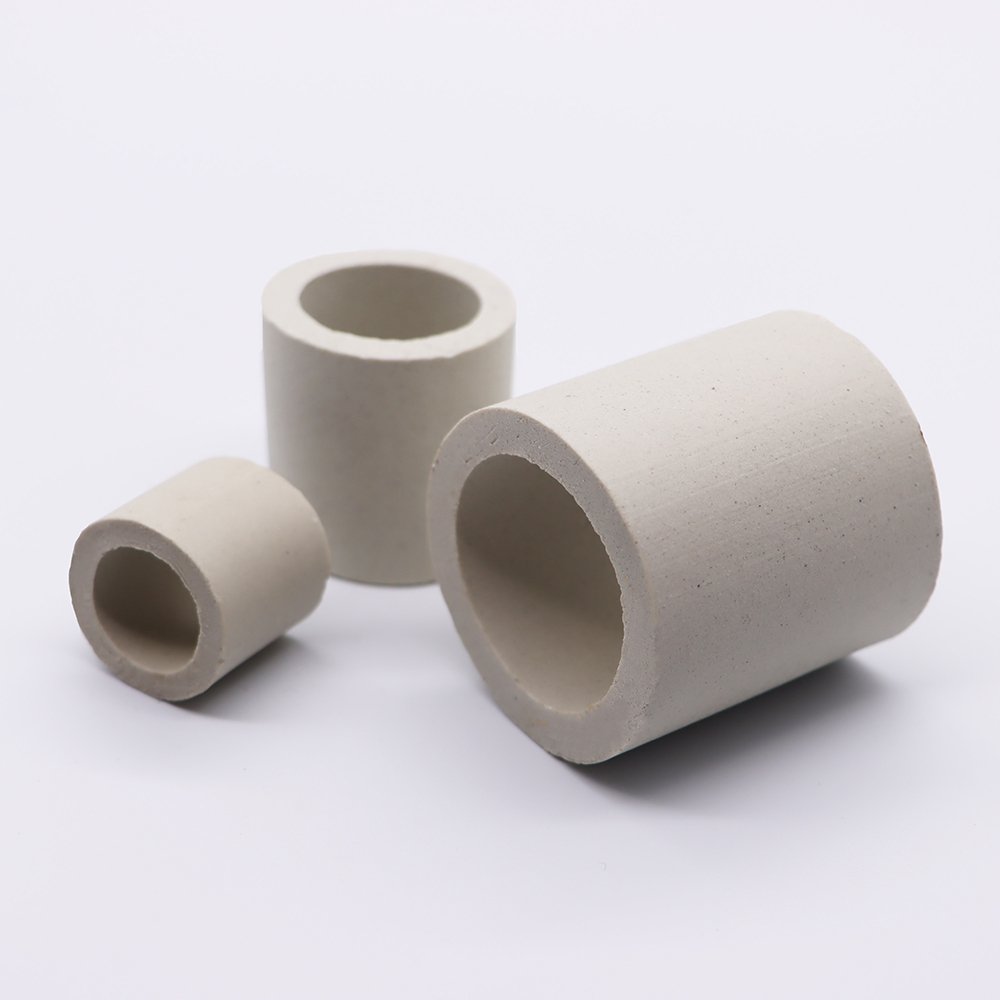

China Ceramic Raschig Ring Tower Packing Manufacturers, Factory

Ceramic Raschig Ring with excellent acid resistance and heat resistance. They can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently their application ranges are very wide. Ceramic Intalox Saddle can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.

Send Inquiry

Product Description

Technical Specification of Ceramic Raschig Ring

SiO2 + Al2O3	>92%	CaO	<1.0%
SiO2	>76%	MgO	<0.5%
Al2O3	>17%	K2O+Na2O	<3.5%
Fe2O3	<1.0%	Other	<1%

Physical & Chemical Properties of Ceramic Raschig Ring

Water absorption	<0.5%	Moh's hardness	>6.5 scale
Porosity	<1%	Acid resistance	>99.6%
Specific gravity	2.3-2.40 g/cm3	Alkali resistance	>85%
Max operation temp			1200℃

Dimension and Other Physical Properties

Sizes (mm)	Thickness (mm)	Surface Area (m2/m3)	Free Volume (%)	Number per m3	Bulk Density (kg/m3)	Packing Factor (m-1)
6 × 6	1.6	712	62	3,022,935	1050	5249
13 × 13	2.4	367	64	377,867	800	1903
16 × 16	2.5	305	73	192,500	800	900
19 × 19	2.8	243	72	109,122	750	837
25 × 25	3.0	190	74	52,000	650	508
38 × 38	5.0	121	73	13,667	650	312
40 × 40	5.0	126	75	12,700	650	350
50 × 50	6.0	92	74	5,792	600	213
80 × 80	9.5	46	80	1,953	660	280
100 × 100	10	70	70	1,000	600	172

Other size also can be provided by custom made!

Shipment for Products

OCEAN SHIPPING

Preferred method for large volume and bulk orders.

AIR or EXPRESS TRANSPORT

Fast delivery suitable for sample requests.

Packaging & Shipping

Package type	Container load capacity
Package type	20 GP	40 GP	40 HQ
Ton bag put on pallets	20-22 m3	40-42 m3	40-44 m3
Plastic 25kg bags put on pallets with film	20 m3	40 m3	40 m3
Cartons put on pallets with film	20 m3	40 m3	40 m3
Wooden case	20 m3	40 m3	40 m3
Delivery time	Within 7 working days (for common type)	10 working days (for common type)	10 working days (for common type)

Frequently Asked Questions

What is the maximum operating temperature for Ceramic Raschig Rings?

Ceramic Raschig Rings can withstand continuous operating temperatures of up to 1200℃, making them suitable for high-temperature chemical process environments.

How resistant are Ceramic Raschig Rings to acids and alkalis?

They offer exceptional chemical stability, featuring an acid resistance rating of over 99.6% and an alkali resistance exceeding 85%.

Can custom dimensions be manufactured beyond standard sizes?

Yes, while standard sizes range from 6×6 mm up to 100×100 mm, customized sizes and wall thicknesses can be manufactured to match specific tower packing requirements.

What are the standard packaging options available?

Products are commonly packed in jumbo ton bags on pallets, 25kg plastic bags on pallets with protective film, cartons on pallets, or strong wooden cases to ensure safe transport.

What is the typical delivery timeframe for standard orders?

Standard common specifications are typically ready for shipment within 7 working days for 20 GP containers, and approximately 10 working days for 40 GP/HQ containers.
