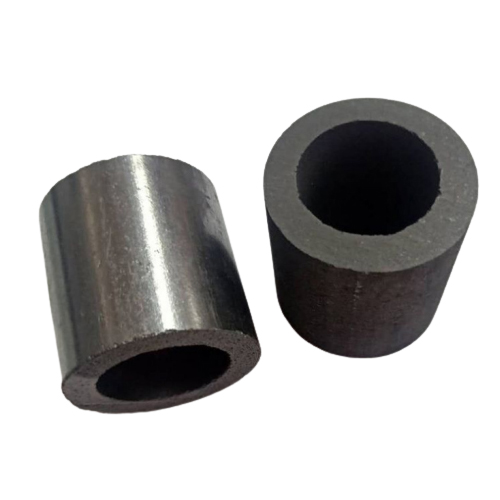

Main content of our carbon Raschig ring:
| Item | Unit | Value |
|---|---|---|
| Carbon content | % | 88-92 |
| Solid hydrogen and oxygen | % | 6-10 |
| Ash content | % | 1 |
| Others | % | 1 |
With low pressure drop, large flux, uniform liquid distribution, high mass transfer efficiency, absorption of a variety of tail gas or used in washing, gas separation, etc. It instead of a large number of black metal and various non-ferrous metals, is a kind of excellent corrosion resistance of non-metallic materials.
| Size (mm) | D*H*T (mm) | Bulk density (KG/m3) | Surface area (m2/m3) | Voidage (%) | Number per m3 |
|---|---|---|---|---|---|
| Φ19 | 19 × 19 × 3 | 650 | 220 | 73 | 109122 |
| Φ25 | 25 × 25 × 4.5 | 680 | 160 | 70 | 47675 |
| Φ38 | 38 × 38 × 6 | 640 | 115 | 69 | 13700 |
| Φ40 | 40 × 40 × 6 | 600 | 107 | 68 | 12700 |
| Φ50 | 50 × 50 × 6 | 580 | 100 | 74 | 6000 |
| Φ80 | 80 × 80 × 8 | / | 60 | 75 | 1910 |
| Φ100 | 100 × 100 × 10 | / | 55 | 78 | 1000 |
Note: the above list is the general type Carbon raschig ring, can also be customized according to customer's request size of Carbon / graphite raschig ring.
Carbon / Graphite raschig ring packing main gas absorption, acidic gas desorption, washing and chemical fertilizer production, the actual application occasions, also as a filler in propane stripping tower and acid gas used in the absorber, such as ammonium, reforming furnace, the tower of petrochemical equipment, purification of the corrosive materials, absorption, condensation, distillation, evaporation, filtration, washing device used in industries such as strong corrosion.
1. OCEAN SHIPPING for large volume.
2. AIR or EXPRESS TRANSPORT for sample request.
| Package type | Container load capacity | ||
|---|---|---|---|
| 20 GP | 40 GP | 40 HQ | |
| Drums put on pallets with film | 16 m3 | 32 m3 | 32 m3 |
| Wooden case | 20 m3 | 40 m3 | 40 m3 |
| Delivery time | Within 7 working days (for common type) | 10 Working days (for common type) | 10 Working days (for common type) |
They are predominantly used in gas absorption, acidic gas desorption, washing towers, chemical fertilizer production, propane stripping towers, and severe corrosion chemical processes.
Graphite raschig rings offer exceptional corrosion resistance against aggressive chemical substances, outperforming ferrous and non-ferrous metals in highly acidic or corrosive media.
Yes, in addition to standard dimensions ranging from Φ19 to Φ100, custom sizes and specifications can be manufactured upon request.
For standard sizes, the delivery time is generally within 7 working days for a 20 GP container, and approximately 10 working days for 40 GP or 40 HQ containers.
Products are securely packed either in wooden cases or in drums set on pallets with protective shrink film to ensure maximum protection during ocean or air transport.
