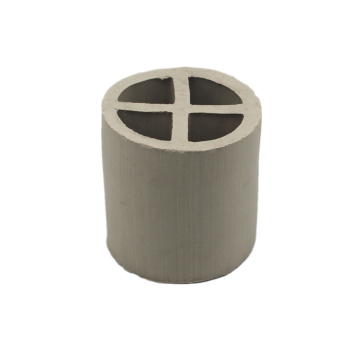

China Ceramic Cross Ring Tower Packing Manufacturer, Manufacturers

Ceramic Cross Ring is improved by ceramic raschig ring, with better surface area and compressive strength than raschig ring, with excellent acid resistance and heat resistance. They can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently their application ranges are very wide. Ceramic Cross Ring can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.

Send Inquiry

Product Description

Technical Specification of Ceramic Cross Ring

SiO2 + Al2O3	>92%	CaO	<1.0%
SiO2	>76%	MgO	<0.5%
Al2O3	>17%	K2O+Na2O	<3.5%
Fe2O3	<1.0%	Other	<1%

Physical & Chemical Properties of Ceramic Cross Ring

Water absorption	<0.5%	Moh's hardness	>6.5 scale
Porosity	<1%	Acid resistance	>99.6%
Specific gravity	2.3-2.40 g/cm3	Alkali resistance	>85%
Max operation temp			1200℃

Dimension and Other Physical Properties

Size (mm)	Thickness (mm)	Surface area (m2/m3)	Voidage (%)	Number per M3	Bulk density (Kg/m3)
25	3.5	220	52	50000	850
50	5.5	150	53	6400	800
80	8	120	54	1960	916
100	10	110	53	1000	930
150	15	60	58	296	960

Other size also can be provided by custom made!

Shipment for Products

1. OCEAN SHIPPING

For large volume orders, providing cost-effective and secure container transportation.

2. AIR or EXPRESS TRANSPORT

For sample requests and urgent consignments demanding minimal transit time.

Packaging & Shipping

Package type	Container load capacity
Package type	20 GP	40 GP	40 HQ
Ton bag put on pallets	20-22 m3	40-42 m3	40-44 m3
Plastic 25kg bags put on pallets with film	20 m3	40 m3	40 m3
Cartons put on pallets with film	20 m3	40 m3	40 m3
Wooden case	20 m3	40 m3	40 m3
Delivery time	Within 7 working days (for common type)	10 working days (for common type)	10 working days (for common type)

Frequently Asked Questions (FAQ)

What is the maximum operating temperature for ceramic cross rings?

The ceramic cross ring can withstand a maximum continuous operating temperature of up to 1200℃, making it suitable for high-temperature chemical process columns.

What are the primary chemical components of the ceramic cross ring?

It is mainly composed of SiO2 (>76%) and Al2O3 (>17%), ensuring high chemical stability with total SiO2 + Al2O3 content exceeding 92%.

How resistant is the ceramic cross ring to acids and alkalis?

It exhibits exceptional chemical resistance, with an acid resistance exceeding 99.6% and alkali resistance of more than 85%.

Can customized sizes and specifications be manufactured?

Yes, beyond standard dimensions (25mm to 150mm), customized sizes and specifications are available upon request to meet distinct project needs.

What packaging methods are available for shipment?

Packaging options include ton bags on pallets, 25kg plastic bags palletized with wrap film, cartons on pallets with film, and sturdy wooden cases to prevent damage during transit.

What is the typical lead time for order delivery?

For common types, shipment within 20 GP containers typically takes 7 working days, while 40 GP and 40 HQ orders are delivered within 10 working days.
