Which alumina grade of inert ceramic ball should I choose for catalyst bed support?

Standard 17–23% Al2O3 inert balls suit most hydrotreating and reforming catalyst supports. Choose 23–30% for higher crush strength, and 99% alumina where high-temperature steam could cause silica leaching that would poison downstream catalysts.

What information do you need to recommend tower packing?

Please share the tower diameter and bed height, the service (distillation, absorption, stripping or scrubbing), the medium and its corrosivity, operating temperature and pressure, and any pressure-drop or capacity targets. Our engineers then propose packing type, material and size.

Can I receive samples and technical data sheets before ordering?

Yes. Samples of standard sizes and technical data sheets covering chemical composition, bulk density, crush strength and other key properties can be provided for evaluation before a production order.

How are ceramic and metal packing products packed for export?

Depending on product and volume, we use cartons, jumbo bags, plastic drums or wooden cases on fumigation-free or fumigated pallets, with clear marking for each size and batch to simplify site receiving.

Where is Zhongtai located and can buyers visit the factory?

We are based in Pingxiang, Jiangxi Province, a recognized Chinese hub for industrial ceramics and chemical packing. Buyers and third-party inspectors are welcome to visit; Korean customers audited our ceramic production in July 2018.

China Ceramic Mini Lessing Ring Tower Packing Supplier, Quotes

1 / 1

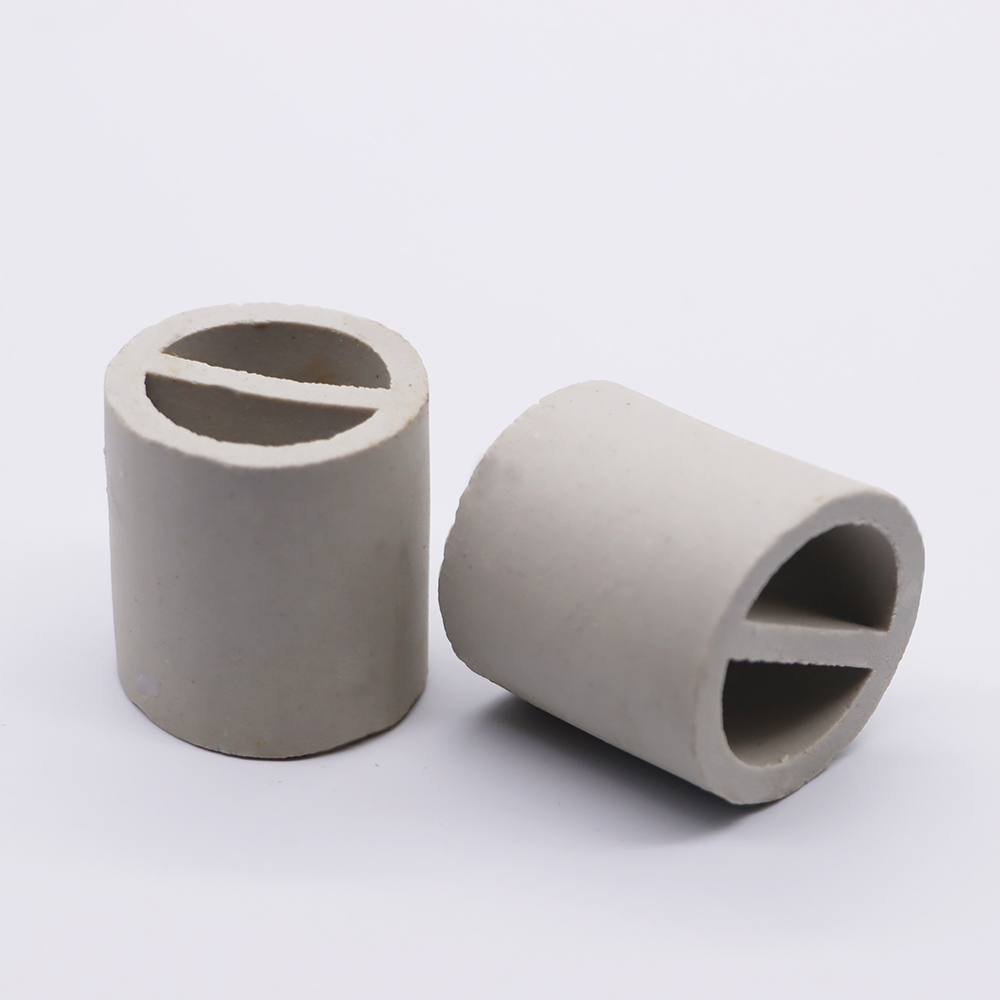

China Ceramic Mini Lessing Ring Tower Packing Supplier, Quotes

Ceramic Mini Lessing Ring is improved by ceramic raschig ring, with better surface area and compressive strength than raschig ring, with excellent acid resistance and heat resistance. They can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently their application ranges are very wide. Ceramic Mini Lessing Ring can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, As tower packing in mass transfer application, As heat transfer media in RTO, etc. This products all after calcination 24 hours, sintering temperature is more than 1000℃ is inert products.

Send Inquiry

Product Description

Technical Specification of Ceramic Mini Lessing Ring

SiO2 + Al2O3	>92%	CaO	<1.0%
SiO2	>70% or >47%	MgO	<0.5%
Al2O3	>17-23% or >23~45%	K2O+Na2O	<3.5%
Fe2O3	<1.0%	Other	<1%

Physical & Chemical Properties of Ceramic Mini Lessing Ring

Water absorption	<0.5%	Moh's hardness	>6.5 scale
Porosity	<1%	Acid resistance	>99.6%
Specific gravity	2.3-2.40 g/cm3	Alkali resistance	>85%
Max operation temp			1200℃

Dimension and Other Physical Properties

Ceramic Mini Lessing Rings are available in variable sizes: 12*9*2mm, 10*8*2mm, 10*6*2mm, etc as below:

Size	ODIDH*T (mm)	Weight per M3 (kg/m3)	Number per M3 (Pcs/m3)	Surface area (m2/m3)	Dry packing factor m-1
10mm	1068*2	800	750000	420	1250
2” (50mm)	504050*5	600	6500	145	565
3” (80mm)	806480*8	820	1950	120	356
4” (100mm)	10080100*10	850	1000	110	252
5” (120mm)	12096120*12	860	370	75	146
6” (150mm)	150120150*15	980	296	60	101

Other size also can be provided by custom made!

Shipment for Products

OCEAN SHIPPING Suitable for large volume cargo transportation.

AIR OR EXPRESS TRANSPORT Fast and reliable for sample requests.

Packaging & Shipping

Package type	Container load capacity
Package type	20 GP	40 GP	40 HQ
Ton bag put on pallets	20-22 m3	40-42 m3	40-44 m3
Plastic 25kg bags put on pallets with film	20 m3	40 m3	40 m3
Cartons put on pallets with film	20 m3	40 m3	40 m3
Wooden case	20 m3	40 m3	40 m3
Delivery time	Within 7 working days (for common type)	10 working days (for common type)	10 working days (for common type)

Frequently Asked Questions (FAQ)

What is the maximum operating temperature for ceramic mini lessing rings?

Ceramic mini lessing rings can withstand continuous operating temperatures up to 1200℃, making them suitable for high-temperature mass transfer applications.

How well do these rings resist acids and alkalis?

They offer outstanding corrosion protection with an acid resistance exceeding 99.6% and an alkali resistance above 85%.

Can ceramic mini lessing rings be produced in custom dimensions?

Yes, in addition to standard dimensions like 10mm, 2", 3", 4", 5", and 6", non-standard configurations can be fully customized upon request.

What standard packaging options are offered?

Standard packaging solutions include ton bags on pallets, 25kg plastic bags on pallets wrapped with film, cartons on pallets with film, and fumigated wooden cases.

What is the expected delivery timeframe for standard shipments?

For common sizes, a 20 GP container typically dispatches within 7 working days, while 40 GP and 40 HQ orders ship within 10 working days.
