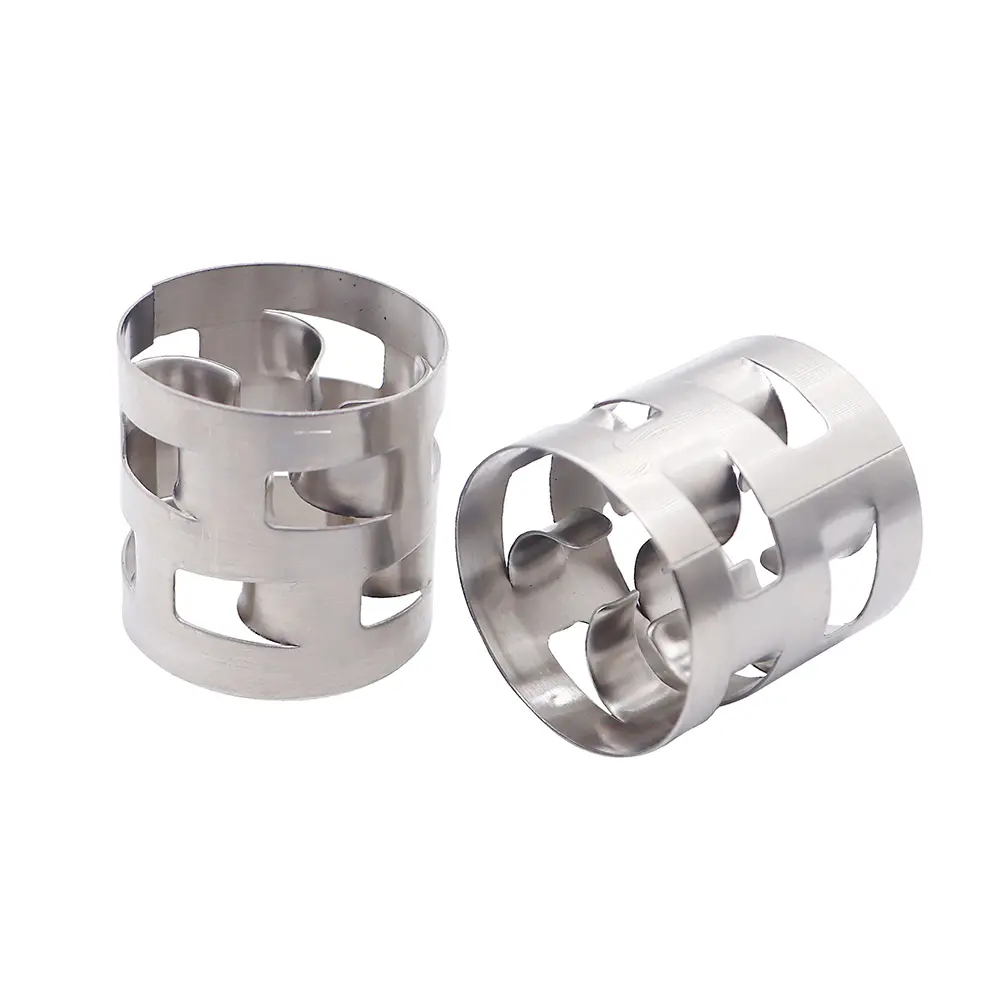

Metal Pall Ring Tower Packing
Windowed ring walls with internal tongues raise liquid distribution and capacity versus Raschig rings, ideal for distillation and absorption.
Sizes16–76 mmServiceDistillation
01/ 03 Scroll
Since 2003 · Pingxiang, Jiangxi, China
Ceramic Ball, Tower Packing & Honeycomb Ceramic Manufacturer for Global Process Plants
Pingxiang Zhongtai Environmental Chemical Packing Co., Ltd. engineers and exports inert ceramic balls, ceramic, metal and plastic random packing, structured packing, RTO honeycomb ceramic, ceramic foam filters and molecular sieves. We are based in Pingxiang — China's best-known cluster for industrial ceramics and chemical packing — so raw materials, kilns and specialist labor sit within one supply radius, which keeps lead times short and quality consistent.
Factory-Direct Supply
Ceramic, metal and plastic media produced and inspected under one roof.
Batch-Level QC
Composition, crush strength and dimensional checks recorded per batch.
Export Documentation
Data sheets, packing lists and certificates of origin prepared for customs.
Engineering Support
Packing selection based on your tower data and operating conditions.
Product Families
All Products Eight Product Families, One Engineering Team
From catalyst bed support to VOC heat recovery and molten-metal filtration, each family is developed for a specific process duty — not repackaged from a generic catalog.
01
Ceramic Ball
Inert support balls from 17% to 99% Al₂O₃, plus alumina grinding media and water-treatment ceramic balls.
View range 02Ceramic Tower Packing
Intalox saddles, Raschig and pall rings for acid absorption, drying and high-temperature corrosive service.
View range 03Metal Tower Packing
SS304 / SS316L pall rings, Intalox saddles and corrugated structured packing for distillation columns.
View range 04Honeycomb Ceramic
RTO/RCO heat-storage blocks and catalyst carriers for VOC abatement and thermal energy recovery.
View range 05Ceramic Foam Filter
Alumina, silicon carbide and zirconia foam filters that trap inclusions in aluminum, iron and steel casting.
View range 06Molecular Sieve
3A, 4A, 5A and 13X zeolite adsorbents for gas drying, air separation and solvent dehydration.
View range 07Aquarium Filter Media
Porous bio-ceramic rings and balls offering high surface area for nitrifying bacteria colonization.
View range 08Laundry Supplies
Ceramic-based laundry products for distributors, wholesalers and private-label household brands.
View range Featured Products
View All Proven Media for Mass Transfer, Grinding & Heat Recovery
Our most-specified items by overseas EPC contractors, refinery maintenance teams and environmental equipment builders.

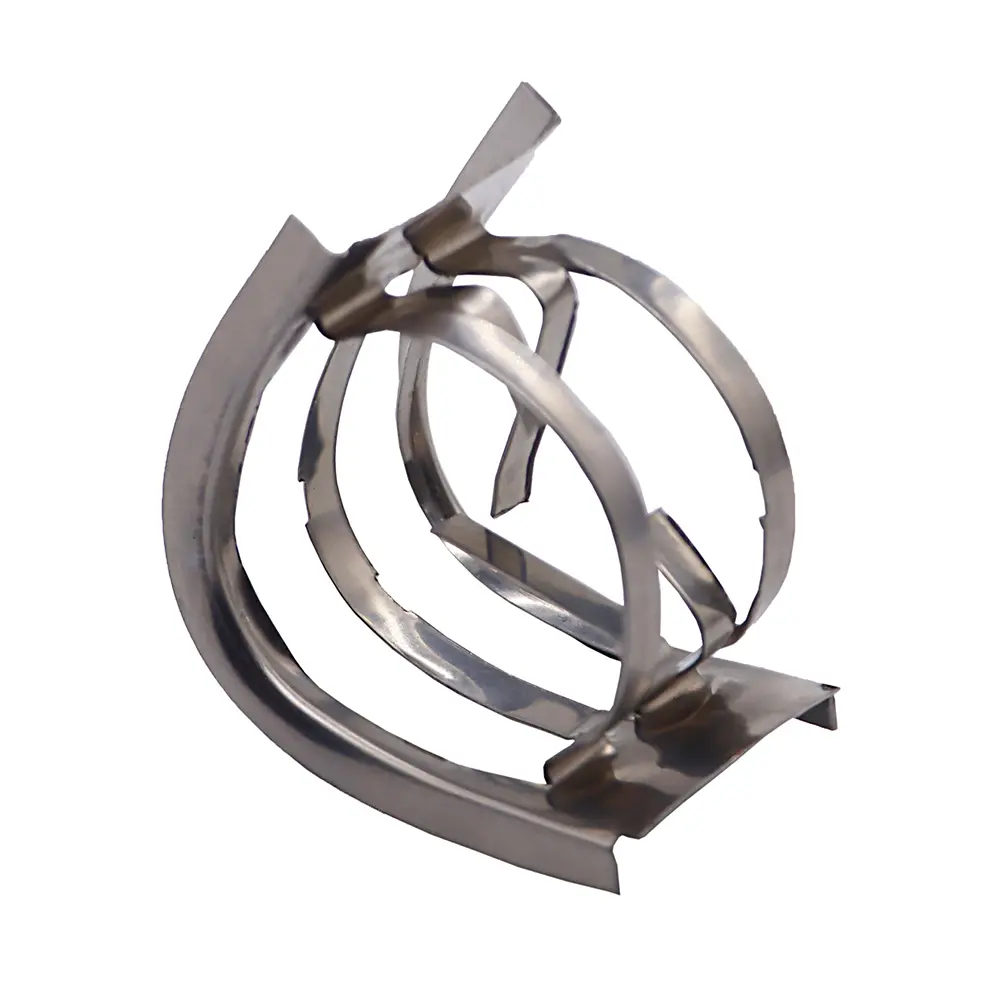

Metal Intalox Saddle Ring Tower Packing
Combines ring and saddle geometry for lower pressure drop and higher throughput in atmospheric and vacuum refinery towers.
Sizes#15–#70ServiceRefining

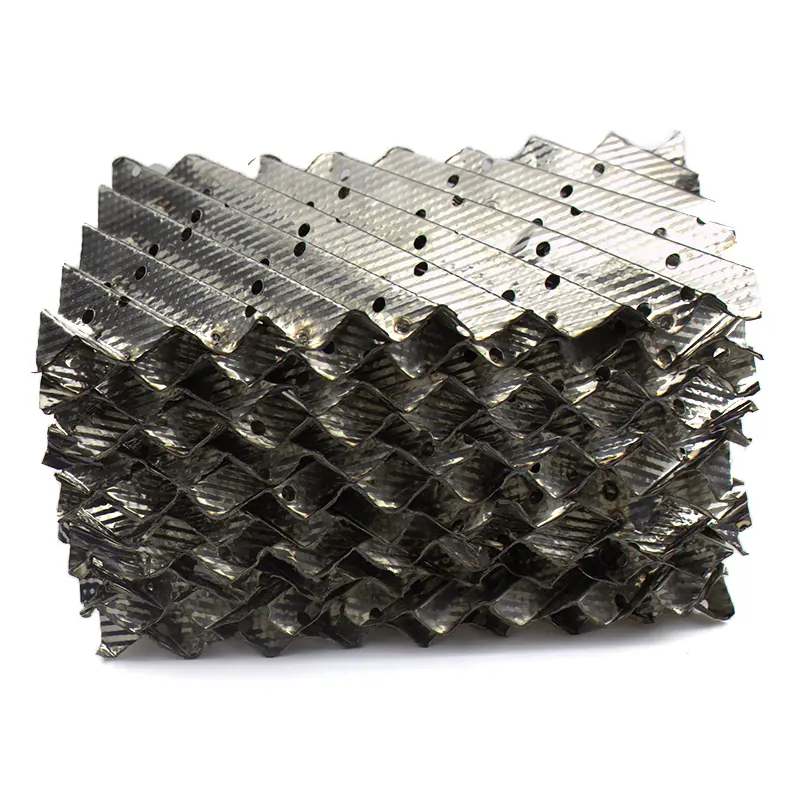

SS304 / SS316 Metal Corrugated Plate Structured Packing
Very low pressure drop per theoretical stage — the standard choice for vacuum distillation and capacity revamps.
Built toTower IDServiceVacuum

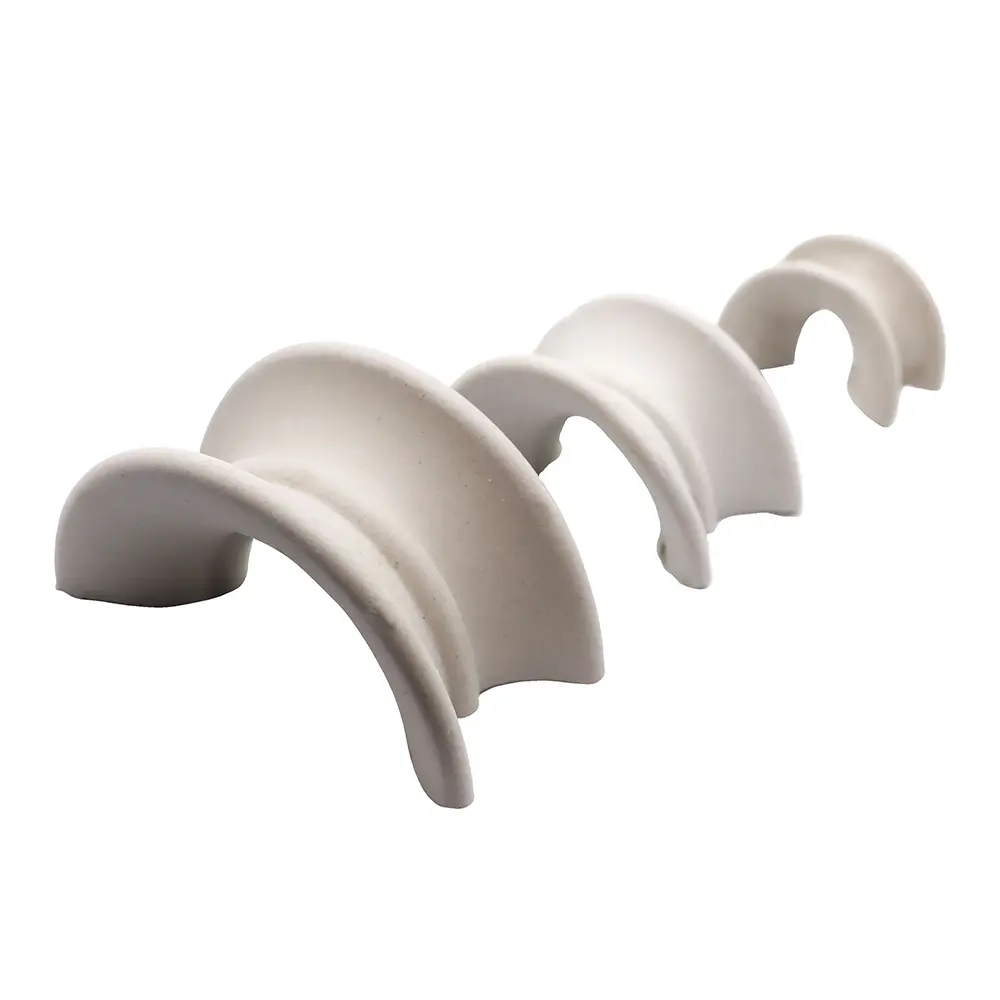

Ceramic Intalox Saddle Ring Tower Packing
Resists hot inorganic and organic acids (except hydrofluoric acid), widely used in sulfuric acid drying and absorption towers.
Sizes25–76 mmServiceAcid Plants

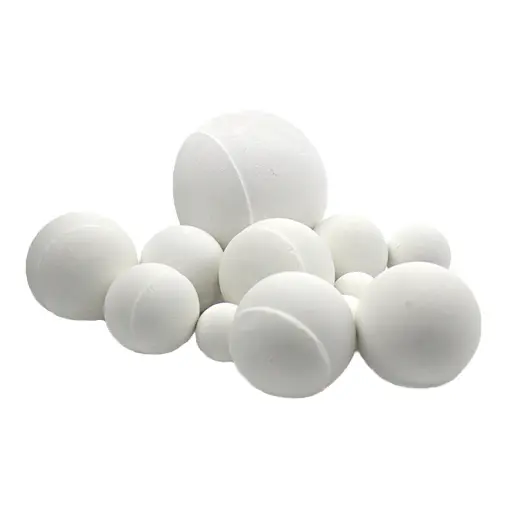

Alumina Grinding Ball for Ball Mills
High density and low wear loss for ceramic glaze, mineral and pigment milling, reducing iron contamination of the product.
UseBall MillsIndustryCeramics, Mining

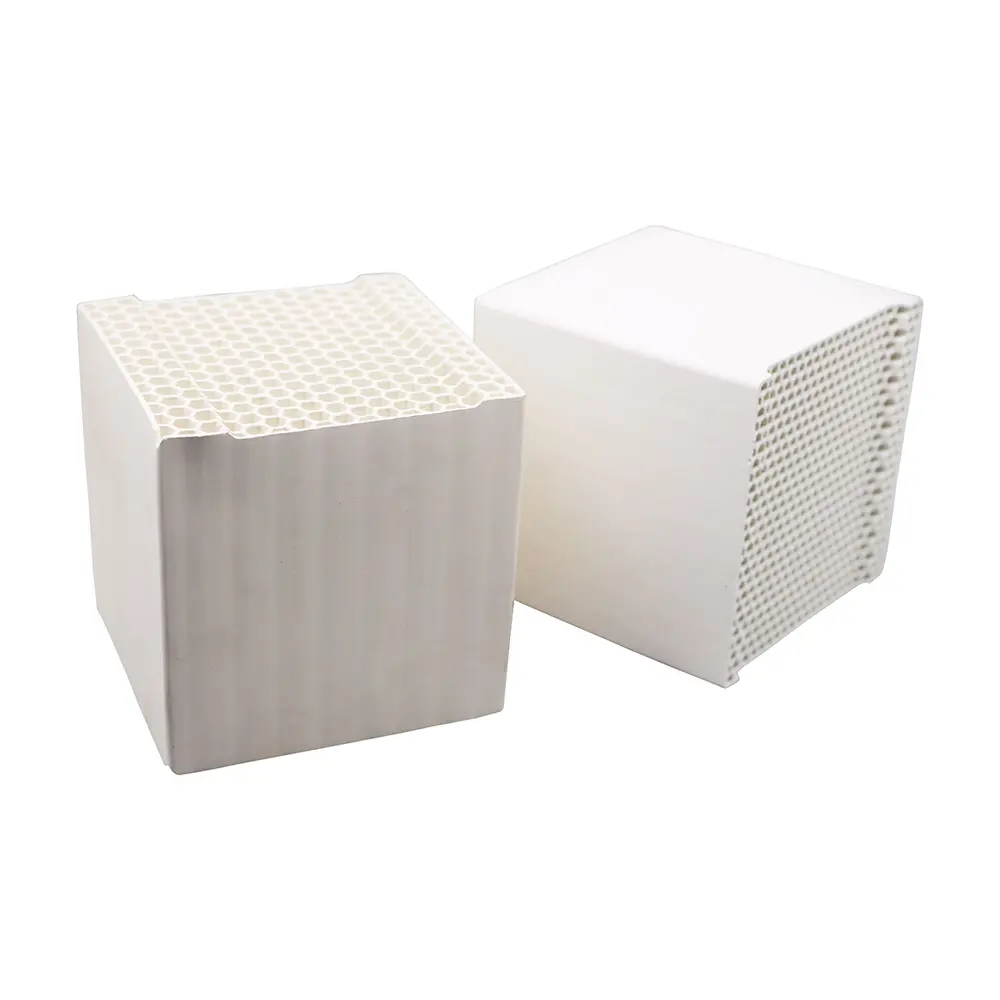

RTO Heat Exchange Honeycomb Ceramic
Thin-wall channels store and release heat in regenerative thermal oxidizers, cutting fuel use in VOC treatment lines.
Block150×150 mmServiceRTO / RCO

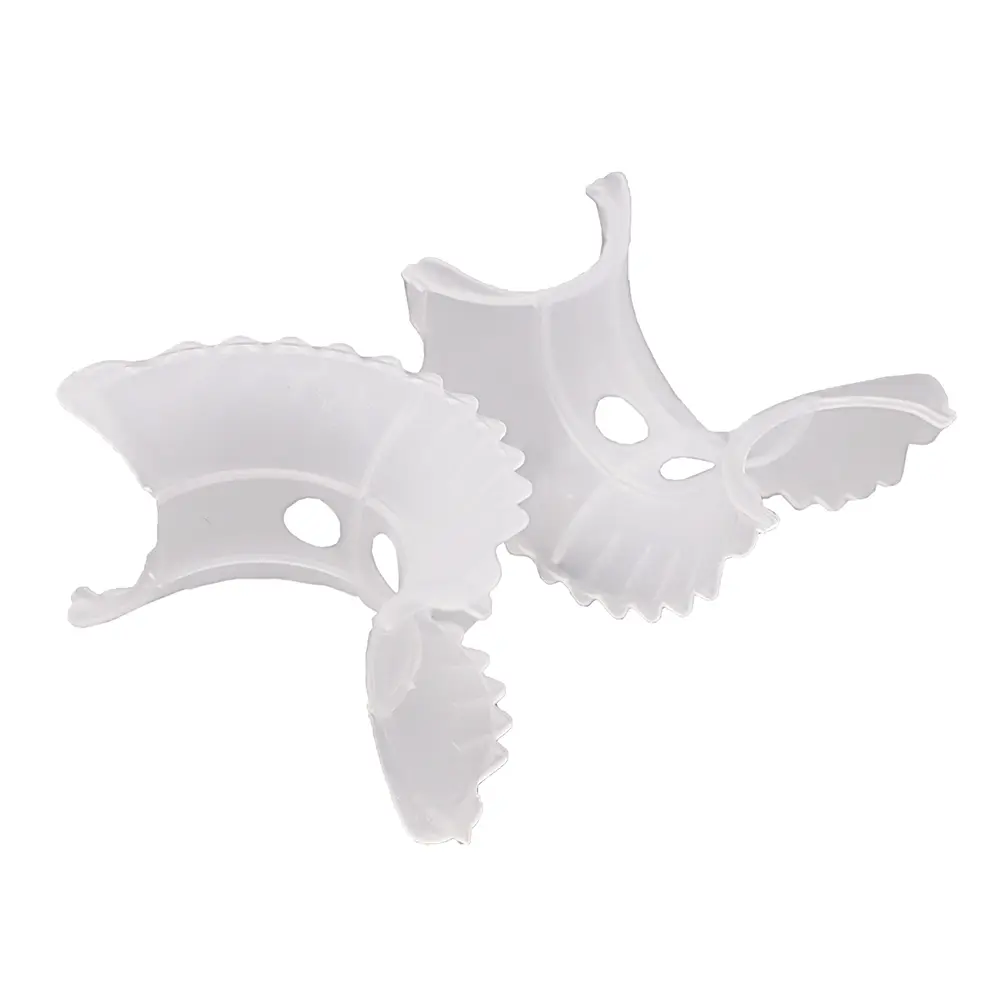

Plastic Super Intalox Saddle Ring Tower Packing
Scalloped edges and drain holes improve wetting and gas flow in scrubbers, strippers and corrosive gas absorption.
Sizes25–76 mmServiceScrubbing
Plastic Tri-Pak Ball Packing for Water Treatment
Symmetrical spherical shape packs uniformly without nesting, suited to degassing towers, odor control and wastewater stripping.
ShapeSphericalServiceDegassing

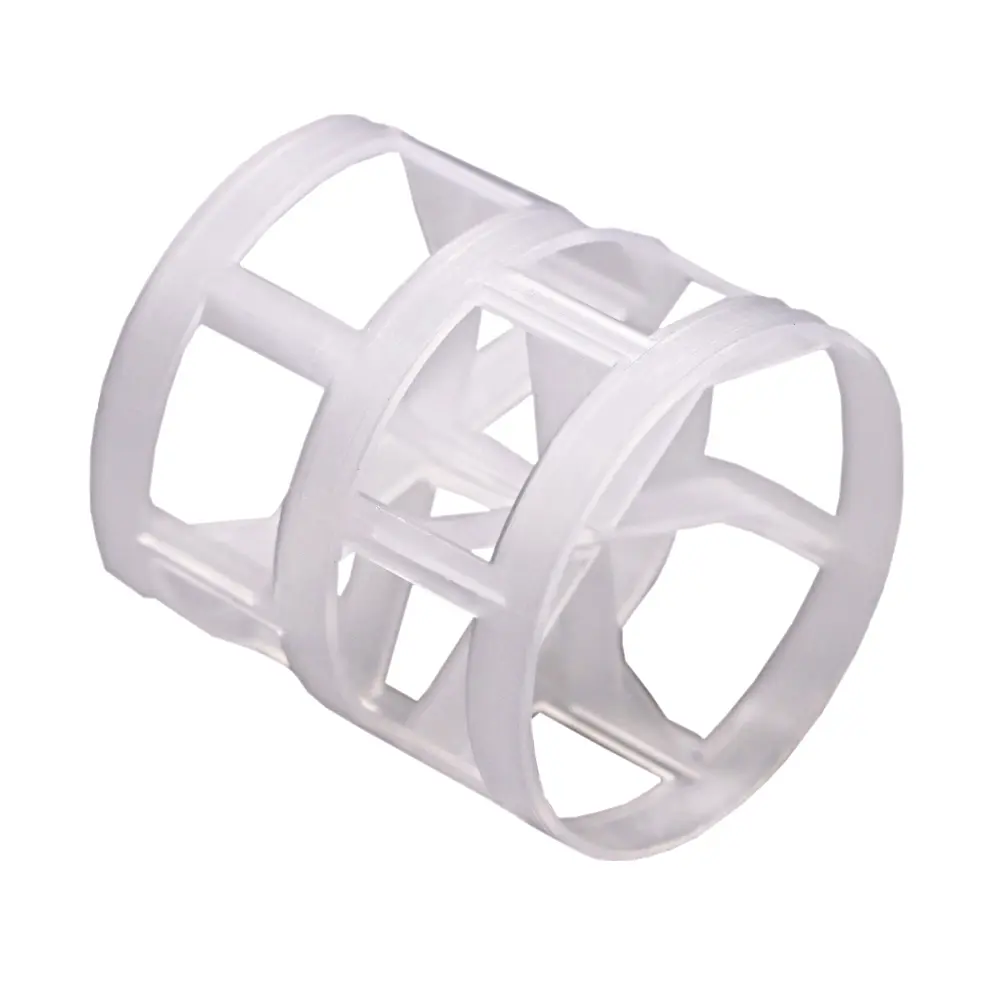

Plastic Pall Ring Tower Packing (25–76 mm)
Economical, chemically inert random packing for acid gas scrubbers, chlorine and ammonia absorption and cooling towers.
MaterialPP, PE, PVDFServiceAbsorption
About Zhongtai
Two Decades of Making Media That Run Inside Real Towers
Founded in 2003, Pingxiang Zhongtai Environmental Chemical Packing Co., Ltd. grew from a ceramic packing workshop into a multi-material manufacturer and exporter. Our production base sits in the West Section Hi-Tech Industry Park of Pingxiang City, with our commercial office in the city's Economic Development Zone.
Every order is built to the buyer's process data rather than a catalog code, and every batch leaves with test records you can file with your plant's quality system.
2003
Year founded in Pingxiang20+
Years in chemical packing3
Material platforms: ceramic, metal, plastic8
Specialized product families- 2003Company established in Pingxiang, China's industrial ceramics hub.
- 2018Korean buyers visited our plant to audit ceramic production before placing orders.
- 2019Met South American partners at the Canton Fair to develop honeycomb ceramic supply.
- 2024Exhibited at the China International E-commerce Industry Expo and Indonesia Product Selection Exhibition.

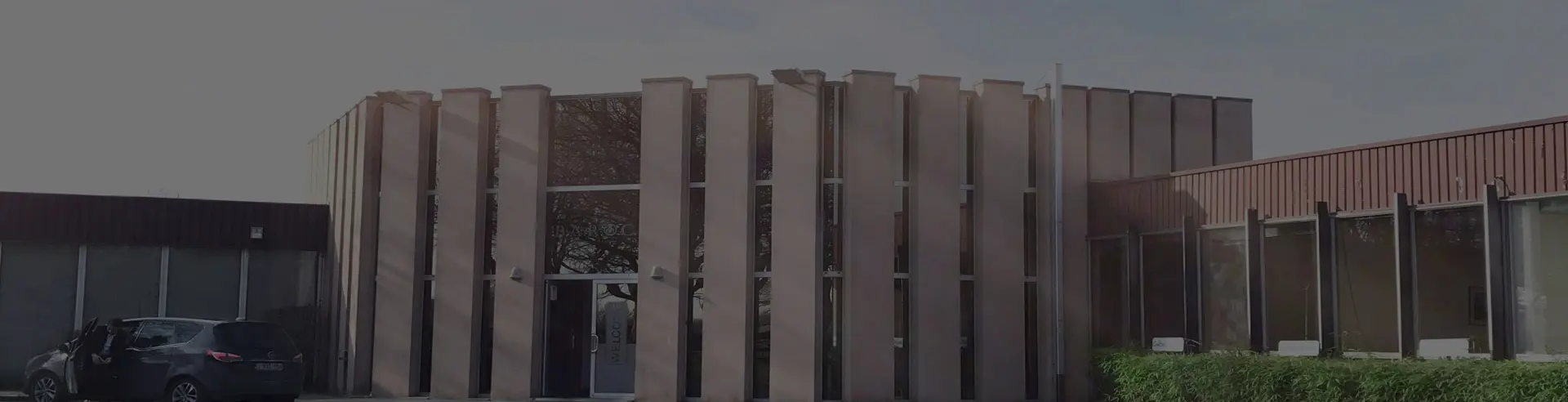

Production BasePingxiang Hi-Tech Industry Park
Buyer's Engineering Guide
How to Specify the Right Media Before You Order
Wrong media selection is the most common cause of premature bed failure, high pressure drop and catalyst contamination. Use these field-proven reference points to shortlist options.
Inert Ceramic Ball Grades by Alumina Content
Alumina content drives strength, temperature limit and silica leaching — the three factors that matter most under a catalyst bed.
| Grade | Al₂O₃ | Key Property | Typical Application |
|---|---|---|---|
| Standard Inert | 17–23% | Chemically stable, cost-efficient | Catalyst bed support & hold-down in hydrotreaters, reformers |
| Medium Alumina | 23–30% | Higher crush strength | Higher-pressure reactors, gas dryers, deep beds |
| High Alumina | 90–92% | High hardness, low wear | Grinding media, abrasive service |
| Super High Alumina | ≥99% | Minimal silica leaching, high temperature | Steam reformers, secondary reformers, ammonia units |
Industry-typical ranges. Exact composition, bulk density and crush strength for each batch are listed on our technical data sheet.
Random vs. Structured Packing at a Glance
Match geometry and material to your service, corrosivity and pressure-drop budget.
| Packing | Material | Strength | Best For |
|---|---|---|---|
| Metal Pall Ring | SS304, SS316L, CS | High capacity, good wetting | Distillation, absorption, stripping |
| Metal Intalox Saddle | SS304, SS316L | Lower ΔP than pall ring | Refinery atmospheric & vacuum towers |
| Ceramic Saddle | Acid-proof ceramic | Acid & heat resistance | Sulfuric acid, chlorine drying |
| Plastic Ring / Saddle | PP, PE, PVC, PVDF | Light, corrosion proof | Gas scrubbers, water degassing |
| Structured Packing | SS304, SS316L | Lowest ΔP per stage | Vacuum distillation, revamps |
| Honeycomb Ceramic | Cordierite, mullite | Thermal storage | RTO / RCO heat recovery |
Ceramic packing is not recommended for hydrofluoric acid or hot concentrated caustic; plastic resin limits depend on operating temperature.
Applications
Industries That Rely on Zhongtai Media
Our products are specified wherever gas, liquid or molten metal must be contacted, separated, filtered or heat-exchanged reliably.
01
Petrochemical & Refining
Reactor bed support, fractionation and vacuum columns.
Inert balls · Metal packing
02
Sulfuric Acid & Fertilizer
Drying, absorption and SO₃ towers under hot acid attack.
Ceramic saddles & rings
03
VOC & Air Pollution Control
Regenerative thermal oxidizers and catalytic oxidizers.
Honeycomb ceramic
04
Foundry & Metal Casting
Inclusion removal from aluminum, iron and steel melts.
Ceramic foam filters
05
Natural Gas & Air Separation
Dehydration, CO₂ removal and solvent drying.
Molecular sieves
06
Water & Wastewater
Degassing, dechlorination and odor scrubbing.
Plastic packing · Ceramic balls
07
Ceramics, Paint & Mining
Fine wet grinding in ball mills with low contamination.
Alumina grinding balls
08
Aquaculture & Aquarium
Biological filtration in ponds, tanks and RAS systems.
Bio-ceramic filter media
Global Service
From First Technical Question to Delivery at Your Site
A transparent five-step export workflow refined through years of shipments to Asia, the Americas, Europe and the Middle East.
01
Technical Review
Share tower size, service and operating conditions; our engineers propose type, material and size.
02
Samples & Data Sheets
Evaluate physical samples and full property data before committing to production.
03
Production & QC
Controlled firing or forming with batch tests on composition, strength and dimensions.
04
Export Packing
Cartons, jumbo bags, drums or wooden cases, palletized and marked by size and batch.
05
Shipping & Documents
Sea, air or rail freight with complete customs paperwork and shipment tracking.
News & Insights
Visit Hot Blog Company News & Technical Articles
Updates from our factory, exhibitions and the engineering questions buyers ask us most often.

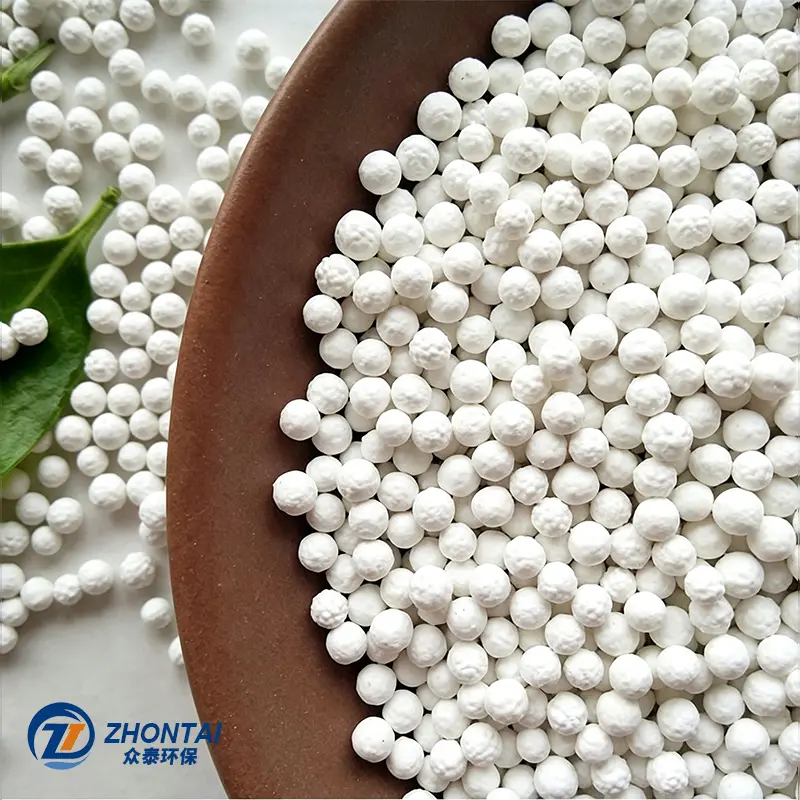

High-Efficiency Dechlorination Ceramic Balls: Innovations in Water Quality Enhancement
How refined formulations and firing processes improve chlorine removal efficiency in shower filters, purifiers and municipal pre-treatment systems.
Read more How U.S. Trade Policy Shapes China's Chemical Packing Manufacturing
An exporter's view of tariffs, supply-chain diversification and what overseas buyers of chemical fillers should plan for in sourcing strategies.
Read more 2024 China International E-commerce Industry Expo & Indonesia Product Selection Exhibition
Our team presented ceramic and environmental media to Southeast Asian distributors and met buyers sourcing for Indonesia's growing process industry.
Read more
What Does Conjugated Ring Mean in Tower Packing?
A plain-language explanation of conjugated ring geometry, how it differs from pall rings, and where it improves gas–liquid contact efficiency.
Read more Buyer FAQ
Answers for Procurement & Process Engineers
Can't find your question? Our technical sales team replies in English with practical, specification-level answers.
Which alumina grade of inert ceramic ball should I choose for catalyst bed support?
Standard 17–23% Al₂O₃ inert balls suit most hydrotreating and reforming catalyst supports. Choose 23–30% for higher crush strength, and 99% alumina where high-temperature steam could cause silica leaching that would poison downstream catalysts.
What information do you need to recommend tower packing?
Please share the tower diameter and bed height, the service (distillation, absorption, stripping or scrubbing), the medium and its corrosivity, operating temperature and pressure, and any pressure-drop or capacity targets. Our engineers then propose packing type, material and size.
Can I receive samples and technical data sheets before ordering?
Yes. Samples of standard sizes and technical data sheets covering chemical composition, bulk density, crush strength and other key properties can be provided for evaluation before a production order.
How are ceramic and metal packing products packed for export?
Depending on product and volume, we use cartons, jumbo bags, plastic drums or wooden cases on fumigation-free or fumigated pallets, with clear marking for each size and batch to simplify site receiving.
Where is Zhongtai located and can buyers visit the factory?
We are based in Pingxiang, Jiangxi Province, a recognized Chinese hub for industrial ceramics and chemical packing. Buyers and third-party inspectors are welcome to visit; Korean customers audited our ceramic production in July 2018.
Product Catalog
Get the Full Catalog & Technical Data Sheets
Dimensions, materials and physical properties for every ceramic, metal and plastic product — ready for your engineering review.
