13X-HP Molecular Sieve, is a new type of X Molecular Sieve. It is suitable for household and medical oxygen making machines.
"Packing-mall" 13X-HP Molecular Sieve, the characteristics of higher N2 adsorption capacity and N2 with O2 selectivity, easy desorption and etc.
13X-HP molecular sieve is specialized for pressure swing adsorption (PSA) and vacuum pressure swing adsorption (VPSA) oxygen generation systems, providing high N2 adsorption capacity and exceptional N2/O2 selectivity.
What particle sizes are available for the 13X-HP model?

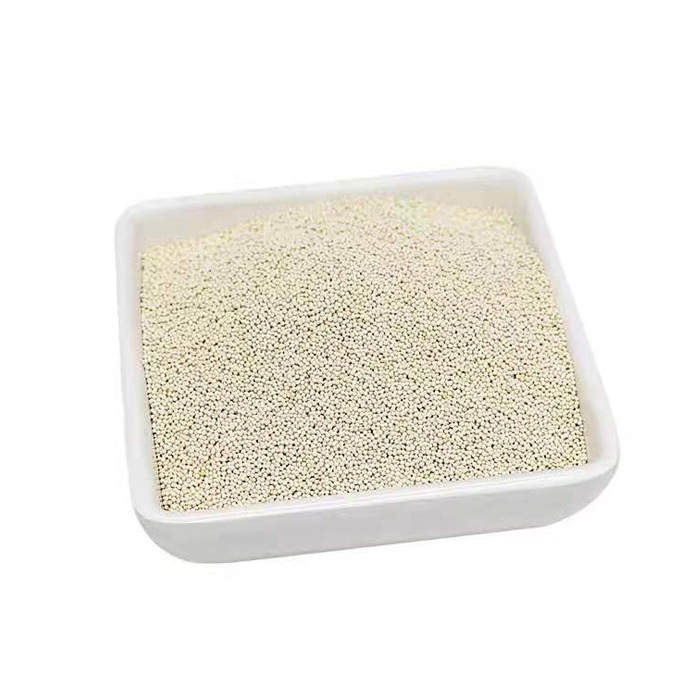

It is standardly available in spherical bead shapes with diameter options of 0.4-0.8 mm (commonly used in portable medical oxygen concentrators) and 1.6-2.5 mm (standard for industrial PSA systems).
What does a nominal pore diameter of 10 angstroms signify?
A 10 angstrom (1 nm) pore aperture allows molecules with kinetic diameters below this threshold to enter the crystal lattice and be selectively adsorbed, optimizing nitrogen separation from oxygen streams.
How wear-resistant is this adsorbent during continuous operation?
13X-HP features an attrition rate of ≤0.2 wt% and a crushing strength of ≥30 N/piece (for the 1.6-2.5 mm specification), ensuring minimal dust formation and an extended operational service life.
What are the standard storage and handling recommendations?
Due to its strong static H2O and CO2 adsorption capacities, the product must be kept in airtight containers and stored in a dry environment to prevent premature moisture pre-adsorption before operational loading.
