| Model | 13X | |||||
| Color | Light gray | |||||
| Nominal pore diameter | 10 angstroms | |||||
| Shape | Sphere | Pellet | ||||
| Diameter (mm) | 1.7-2.5 | 3.0-5.0 | 1.6 | 3.2 | ||
| Size ratio up to grade (%) | ≥98 | ≥98 | ≥96 | ≥96 | ||
| Bulk density (g/ml) | ≥0.7 | ≥0.68 | ≥0.65 | ≥0.65 | ||
| Wear ratio (%) | ≤0.20 | ≤0.20 | ≤0.20 | ≤0.20 | ||
| Crushing strength (N) | ≥35/piece | ≥85/piece | ≥30/piece | ≥45/piece | ||
| Static H2O adsorption (%) | ≥25 | ≥25 | ≥25 | ≥25 | ||
| Static CO2 adsorption (%) | ≥17 | ≥17 | ≥17 | ≥17 | ||
| Water content (%) | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Typical chemical formula |
Na2O · Al2O3 · (2.8 ± 0.2) SiO2 · (6~7)H2O SiO2 : Al2O3 ≈ 2.6-3.0 |
|||||
| Typical application |
a) Removal of CO2 and moisture from air (air pre-purification) and other gases. b) Separation of enriched oxygen from air. c) Removal of n-chained compositions from aromatics. d) Removal of R-SH and H2S from hydrocarbon liquid streams (LPG, butane etc.) e) Catalyst protection, removal of oxygenates from hydrocarbons (olefin streams). f) Production of bulk oxygen in PSA units. |
|||||
| Package | Carton box; Carton drum; Steel drum | |||||
| MOQ | 1 Metric Ton | |||||
| Payment terms | T/T; L/C; PayPal; West Union | |||||
| Warranty | a) By National Standard HG-T_2690-1995 | |||||
| b) Offer lifetime consultation on problems occurred | ||||||
| Container | 20GP | 40GP | Sample order | |||
| Quantity | 12MT | 24MT | < 5kg | |||
| Delivery time | 3 days | 5 days | Stock available | |||
Removal of CO2 and moisture from air (air pre-purification) and other gases.
Separation of enriched oxygen from air.
Removal of mercaptans and hydrogen sulphide from natural gas.
Removal of mercaptans and hydrogen sulphide from hydrocarbon liquid streams (LPG, butane, propane etc.)
Catalyst protection, removal of oxygenates from hydrocarbons (olefin streams).
Production of bulk oxygen in PSA units.
Production of medical oxygen in small scale oxygen concentrators.
Molecular sieve Type 13X can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 13X molecular sieve, a temperature of 250-300°C is required.
A properly regenerated molecular sieve can give moisture dew points below -100°C, or mercaptan or CO2 levels below 2 ppm.
The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.
13X - Zeolites are available in beads of 1-2 mm(10x18 mesh), 2-3 mm(8x12 mesh), 2.5-5 mm(4x8 mesh) and as powder, and in pellet 1.6mm, 3.2mm.
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
13X Type Molecular Sieve has a nominal pore diameter of 10 angstroms and a typical chemical formula of Na2O · Al2O3 · (2.8 ± 0.2) SiO2 · (6~7)H2O with a SiO2:Al2O3 ratio of approximately 2.6-3.0.

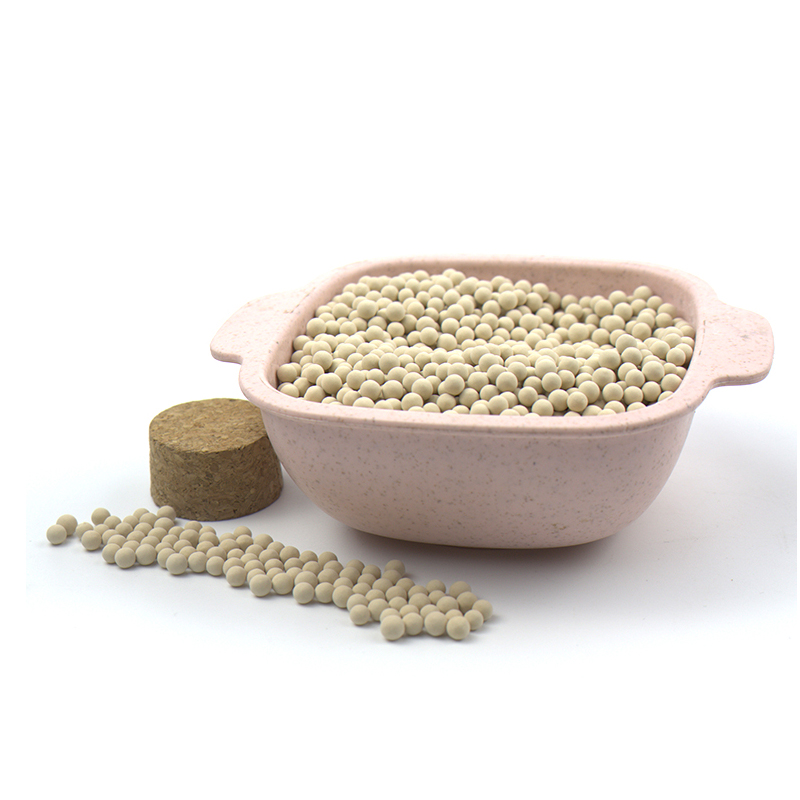

It is available in sphere/beads (1.7-2.5 mm, 3.0-5.0 mm, 1-2 mm, 2-3 mm, 2.5-5 mm), pellets (1.6 mm, 3.2 mm), and as powder.
It can be regenerated by thermal swing processes (requiring a temperature of 250-300°C to remove moisture) or by pressure swing processes (by reducing pressure).
A properly regenerated molecular sieve can provide moisture dew points below -100°C, and achieve mercaptan or CO2 residual levels below 2 ppm.
Standard packaging options include carton boxes, carton drums, and steel drums. The minimum order quantity (MOQ) is 1 Metric Ton, with sample orders under 5 kg available from stock.
It must be kept protected from dampness and pre-adsorption of organic substances prior to system operation, otherwise it must be reactivated prior to service.
