Primary Material
Cordierite
Softening Temp.
>1280ºC
CO Emission
≤0.006%
NOx Emission
≤5ppm
| Item | Index | Specifications |
|---|---|---|
| Materials | Cordierite |
Round Size:
Square Size:
|
| Water Absorption | 50.40% | |
| Open Porosity | 61% | |
| Specific Gravity | 0.6-0.9g/cm³ | |
| Thermal Expansion Coefficient | 1.5-3(×10⁻⁶K⁻¹) | |
| Temperature Softening | >1280ºC | |
| Cooking Surface Temperature | 1000-1200ºC | |
| CO Release | ≤0.006% | |
| NOx Release | ≤5ppm |

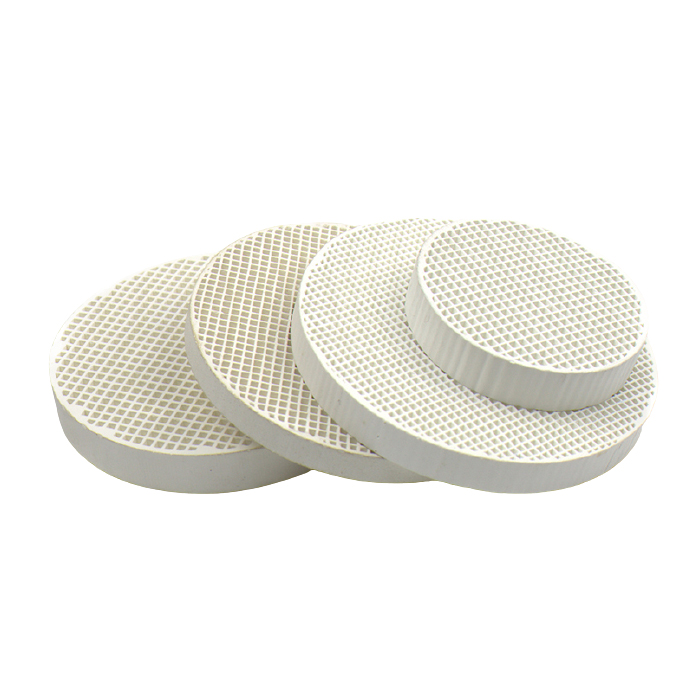

The components are manufactured from high-performance Cordierite, known for its superior structural durability and low thermal expansion rate.
Standard round configurations include Φ80×12.5mm, Φ100×50mm, Φ125×12.5mm, Φ150×12.5mm, Φ160×13.5mm, and Φ168×13.5mm.
Square and rectangular options include 100×50×13.5mm, 132×68×13.5mm, 110×110×12.5mm, 132×76×13.5mm, 132×92×13.5mm, 158×72×13.5mm, 198×136×13mm, and 202×148×12.5mm.
The material supports normal cooking surface operating temperatures between 1000–1200ºC and features a softening point exceeding 1280ºC.
The material ensures clean combustion with Carbon Monoxide (CO) emissions kept at ≤0.006% and Nitrogen Oxides (NOx) emissions at ≤5ppm.
It features an open porosity of 61%, water absorption capacity of 50.40%, and a specific gravity ranging from 0.6 to 0.9 g/cm³.
