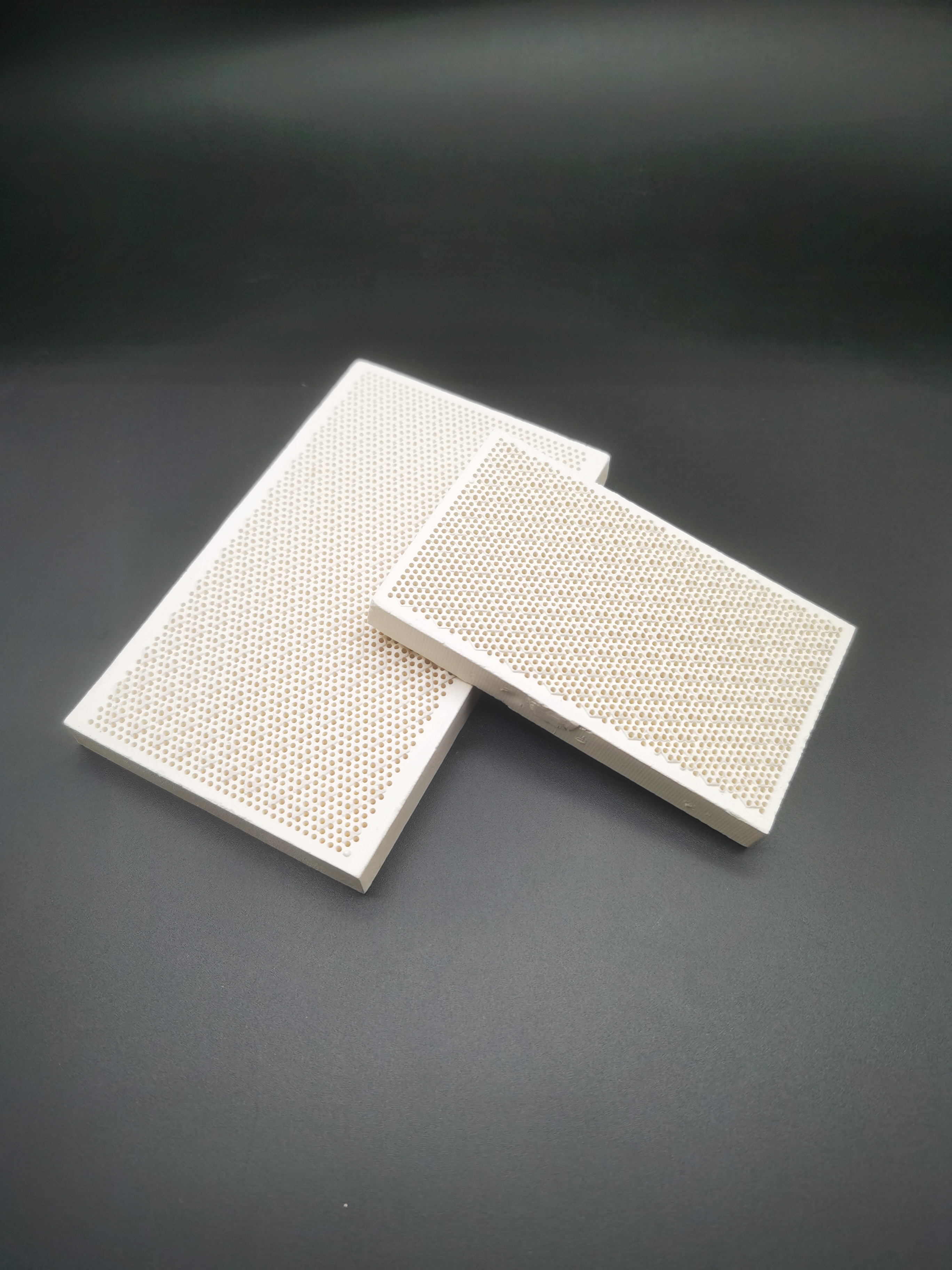

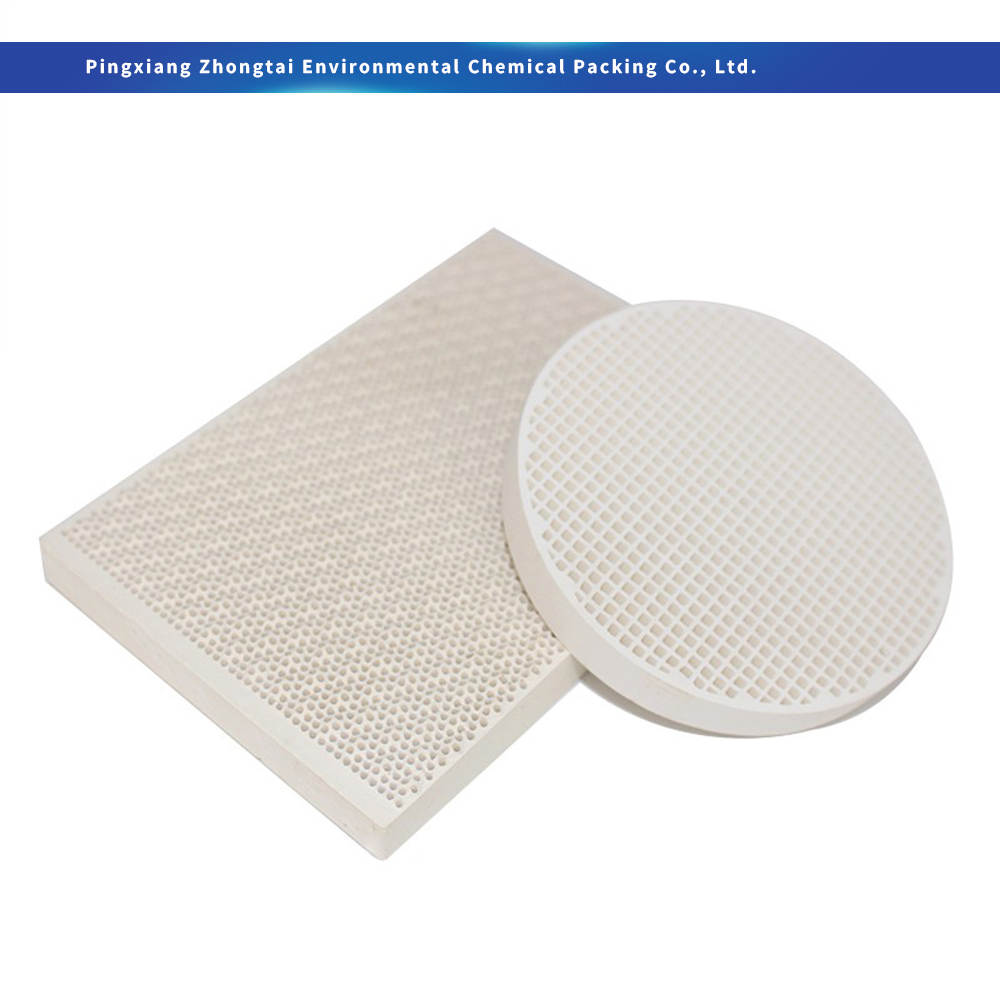

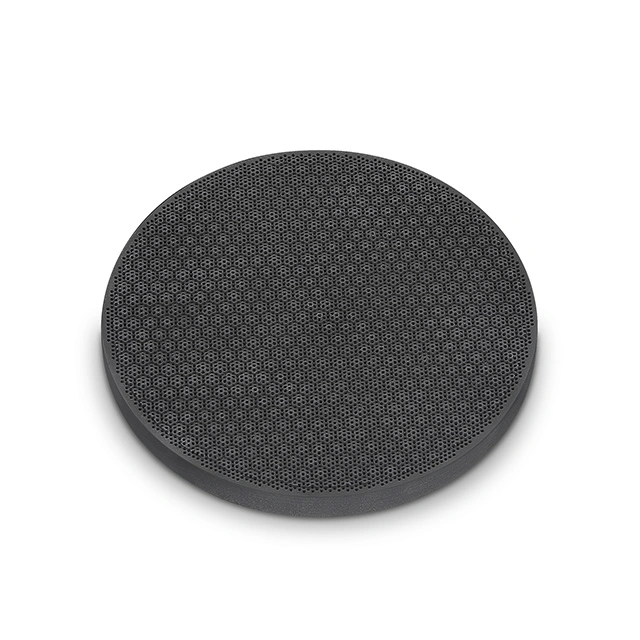

The Ceramic Honeycomb Plate is a high-performance industrial component featuring a porous cellular structure. It is renowned for its exceptional thermal conductivity, high-temperature stability, and corrosion resistance. Manufactured from advanced ceramic materials such as cordierite and mullite, it is precision-formed into a honeycomb configuration that significantly increases the effective surface area. This design enables efficient heat transfer and uniform fluid distribution, making it ideal for industrial heating, exhaust treatment, energy recovery, and catalytic processes. It serves as a reliable solution for improving energy efficiency and reducing emissions.
The honeycomb structure ensures even heat distribution and a rapid thermal response, leading to lower energy consumption.
It withstands extreme temperatures and thermal shock while maintaining structural integrity under demanding conditions.
This component resists chemical erosion from acids, alkalis, and oxidizing environments, ensuring long-term durability.
We support tailored specifications in cell density, size, and shape to meet diverse application requirements.
The design promotes complete fuel combustion and reduces harmful emissions such as NOx.
| Ceramic material performance index | |||||
| Alumina Ceramic | Zirconia Ceramic | ||||
| Performance | Unit | ≧95 | ≧99 | ≧99.5 | - |
| Bulk density | g /cm3 | 3.7 | 3.85 | 3.85 | 6 |
| Hardness | HRA ≥ | 86 | 88 | 88 | 92 |
| Flexure strength | Mpa≧ | 300 | 350 | 400 | 1100 |
| The max.temperature | ℃ | 1500 | 1500 | 1500 | 1450 |
| Linear expansion coefficient | ×10-6/℃ | 7.5 | 8.2 | 8.2 | 10.2 |
| Dielectric constant | εr20℃, 1MHz | 9 | 9.2 | 9.2 | 28 |
| Dielectric loss | tanδ×10-4, 1MHz | 3 | 2 | 2 | 10 |
| Volume resistivity | Ω·cm 20℃ | 10^13 | 10^14 | 10^14 | 10^14 |
| Disruptive strength | KV/mm , DC≥ | 20 | 20 | 20 | 20 |
| Acid resistance | mg/cm2 ≤ | 0.7 | 0.7 | 0.7 | 2 |
| Alkali resistance | mg/cm2 ≤ | 0.2 | 0.1 | 0.1 | 0.08 |
| Abrasive resistance | g/cm2 ≤ | 0.2 | 0.1 | 0.1 | 0.05 |
| Compressive strength | MPa ≥ | 2500 | 2500 | 2500 | 3000 |
| Rupture strength | MPa ≥ | 200 | 350 | 350 | 600 |
| Elasticity modulus | GPa | 300 | 350 | 350 | 210 |
| Poisson ratio | - | 0.2 | 0.22 | 0.22 | 0.23 |
| Heat conductivity | W/m·K( 20℃) | 20 | 25 | 25 | 2.6 |
They are manufactured from high-grade technical ceramics, primarily cordierite, mullite, and alumina, selected for their superior thermal shock resistance, mechanical strength, and high operating temperatures.
The uniform cellular micro-channel matrix dramatically maximizes the active surface area, allowing more balanced fluid distribution, faster preheating, and even heat emission while cutting down fuel use.
Depending on the specific ceramic formulation (such as Alumina or Zirconia ceramics), our plates can operate reliably up to 1450°C - 1500°C without compromising structural integrity.

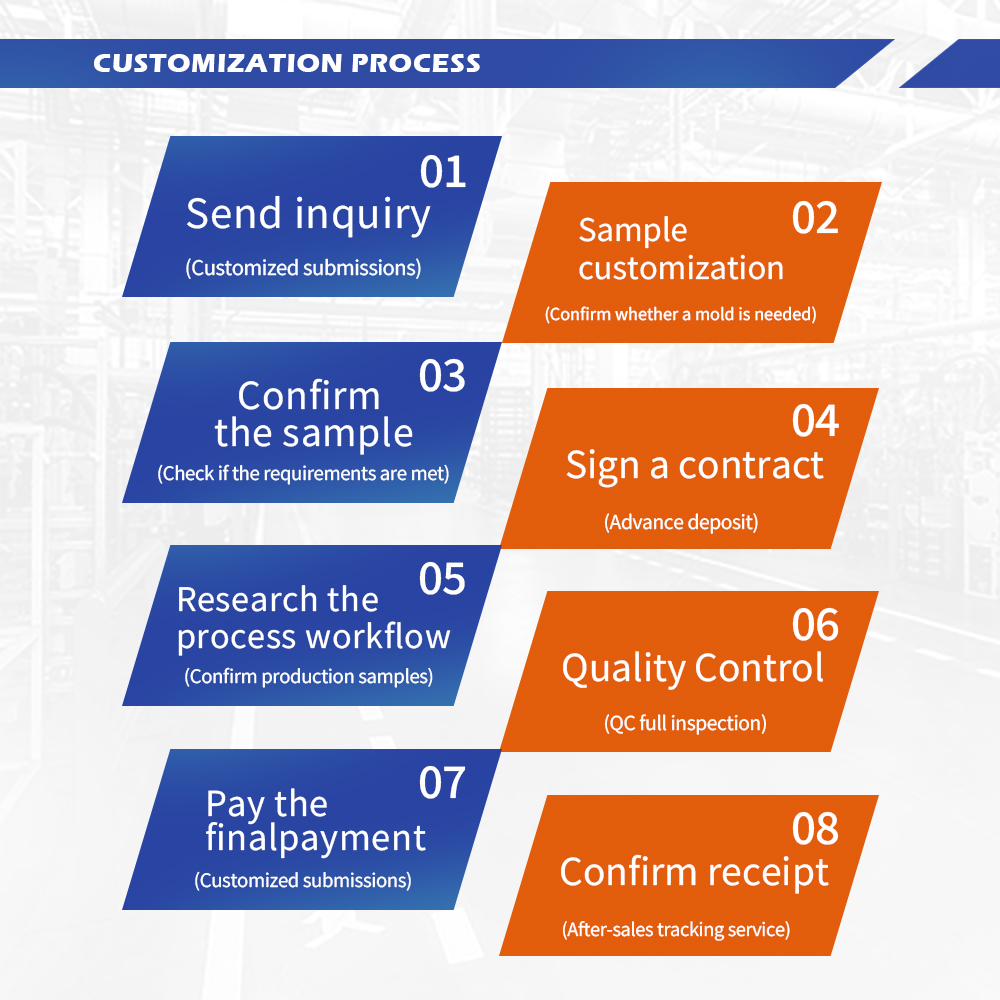

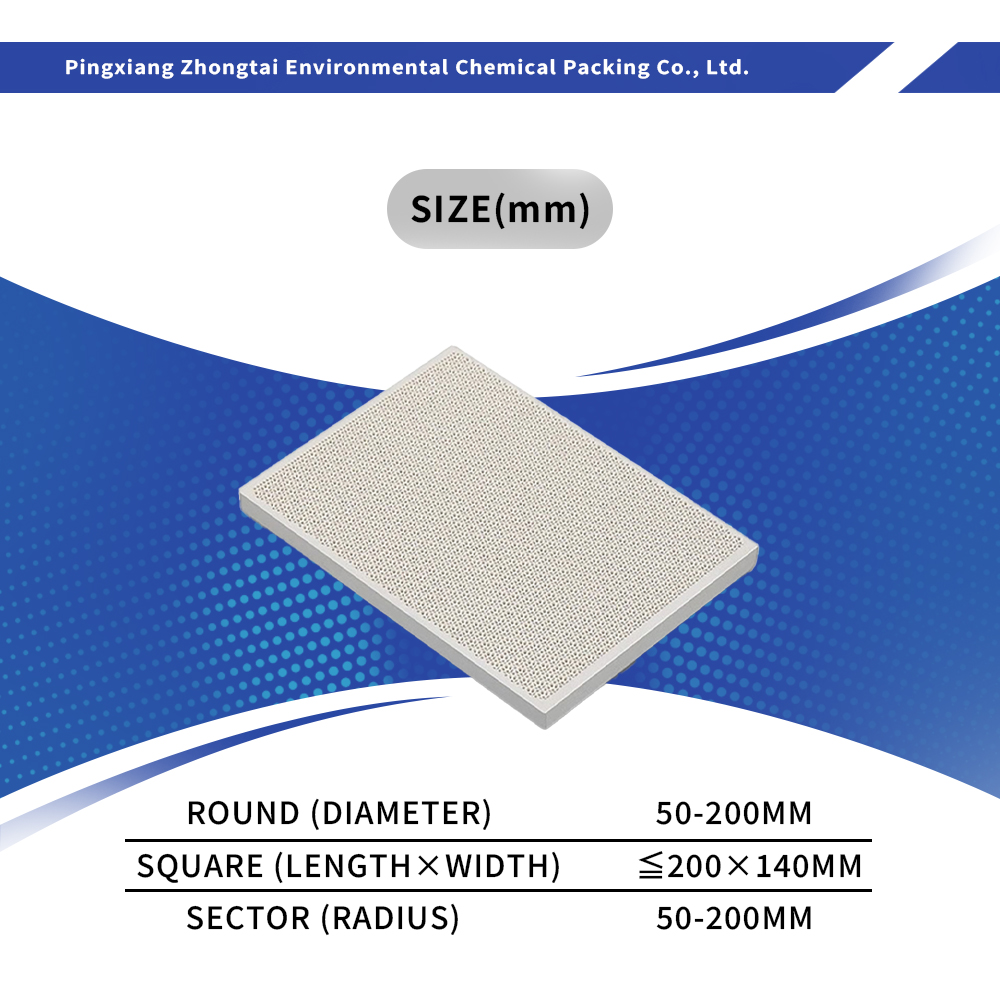

Yes. We support custom orders tailored to your specifications, including custom outer dimensions, thicknesses, hole configurations, and specific cell densities (CPSI) suited to your equipment.

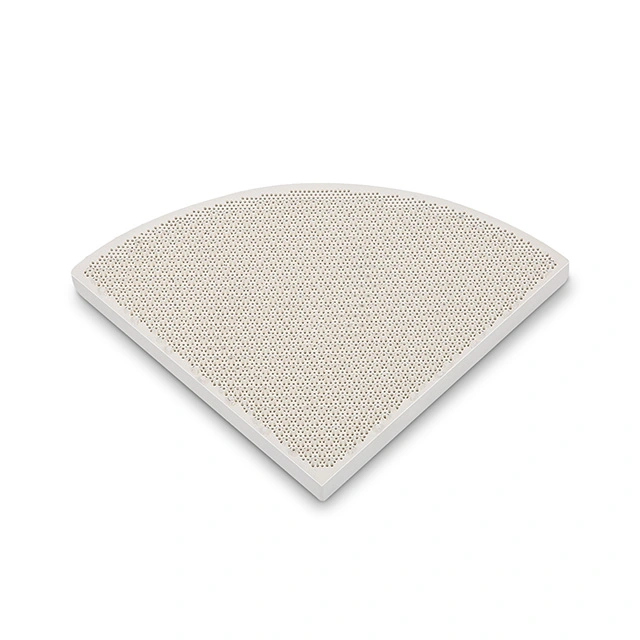

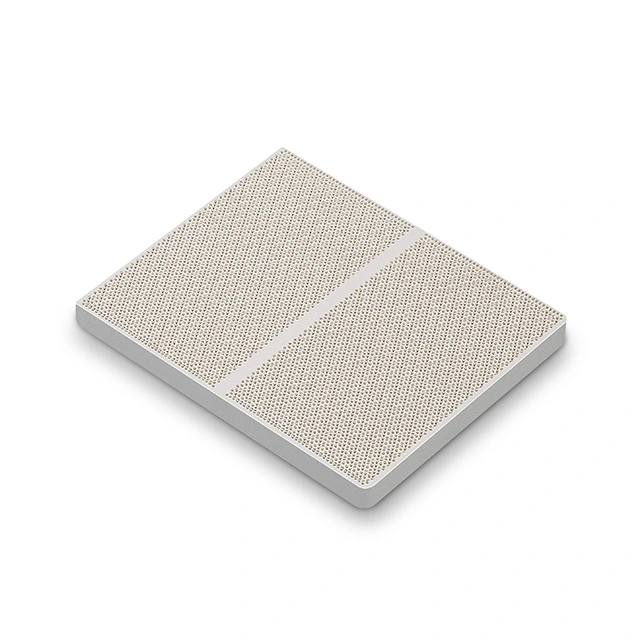

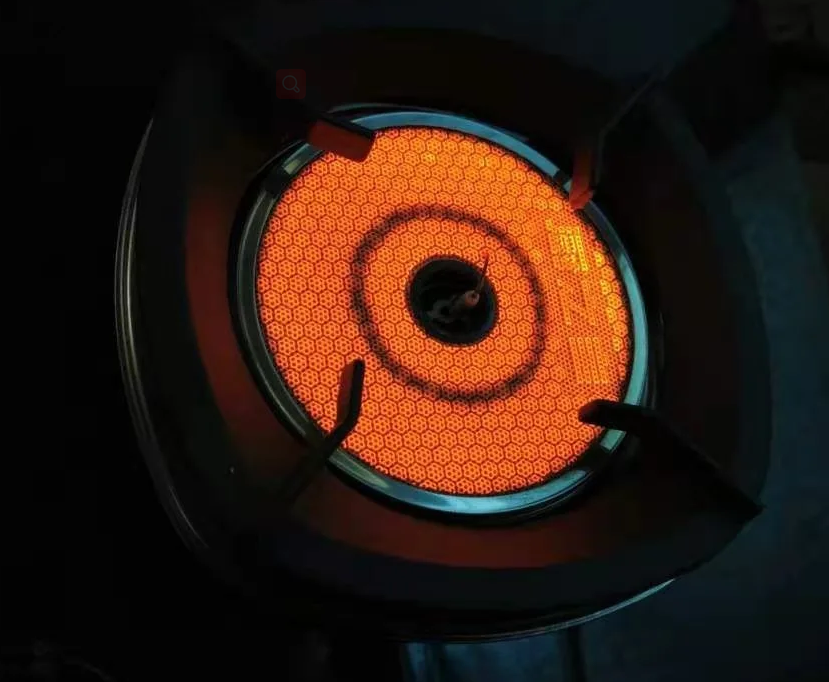

Key applications include commercial gas stoves, infrared gas heaters, thermal regenerators, industrial burner assemblies, exhaust gas purification systems, and high-temperature catalytic units.

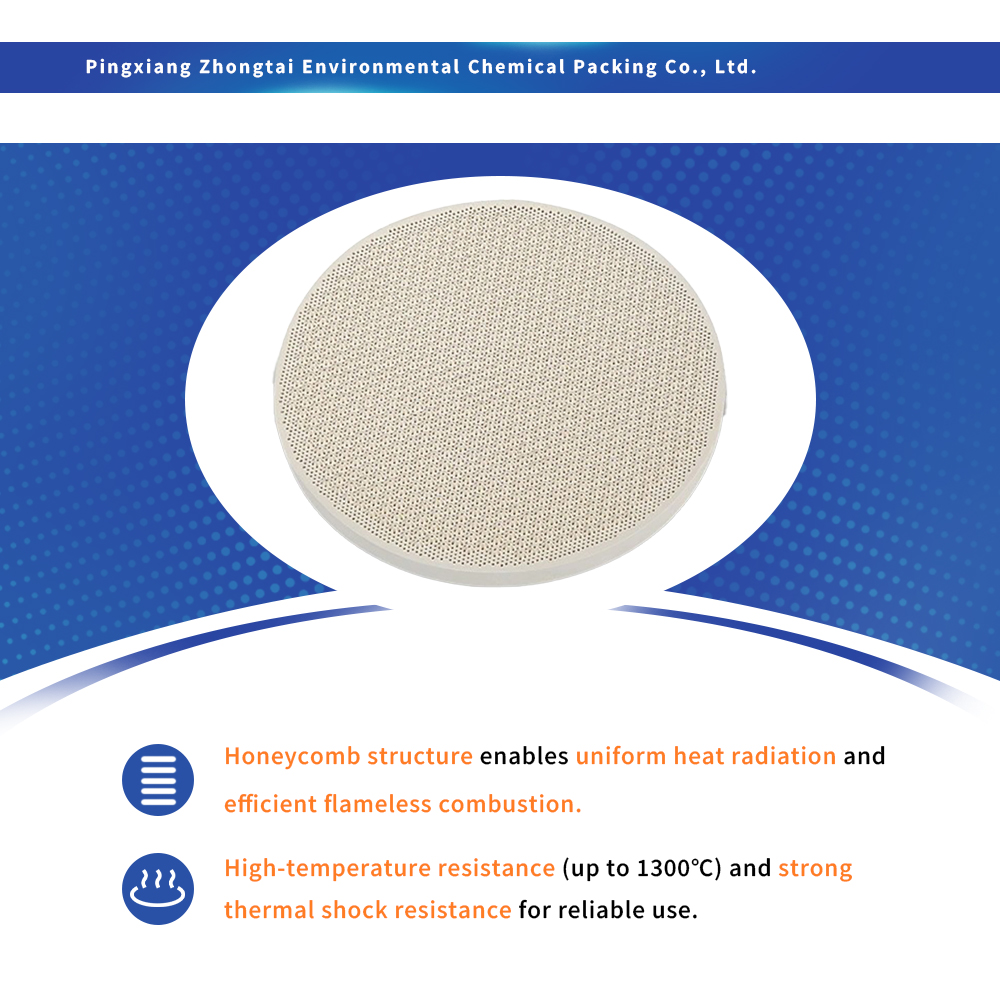

By ensuring uniform gas-air mixing and flameless catalytic/infrared radiation heating, the plate guarantees complete fuel combustion, significantly reducing toxic emissions such as carbon monoxide (CO) and nitrogen oxides (NOx).
