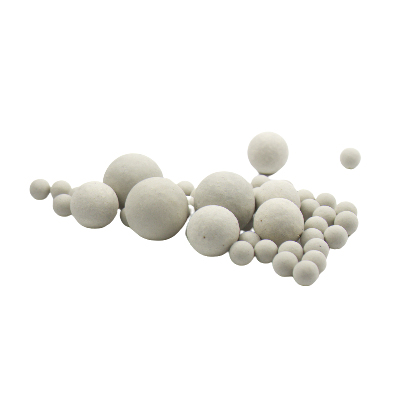

China 17%AL2O3 Inert Alumina Ceramic Ball Manufacturer, Factories
17%AL2O3 Inert Alumina Ceramic Ball (Catalyst Support Media) are the most widely used as Catalyst Support Media in the world wide because of their excellent consistence and reliability. It produced by very high quality chemical-porcelain clay materials, which has quite excellent stability, high mechanical strength and resistance to thermal shock, This makes them all ideal choice for support of all types of catalyst.
It's widely used in petroleum, chemical, fertilizer, gas and environmental protection industries, as a catalyst in the reactor to cover support material and tower packing. It has a high temperature and high pressure resistance, bibulous rate is low, the characteristics of the chemical performance is stable. Can withstand the erosion of acid, alkali and other organic solvents, and can endure in the production process of temperature changes. Its main function is to increase gas or liquid distribution points, support and protection intensity is not high activity of the catalyst.
Chemical Composition of 17% AL2O3 Inert Alumina Ceramic Ball
Al2O3 + SiO2
Al2O3
Fe2O3
MgO
K2O + Na2O + CaO
Other
> 93%
17-19%
< 1%
< 0.5%
< 4%
< 1%
Leachable Fe2O3 is less than 0.1%.
Physical Properties of 17% AL2O3 Inert Alumina Ceramic Ball
Item
Value
Water absorption (%)
< 0.5
Bulk density (g/cm³)
1.35 - 1.4
Specific gravity (g/cm³)
2.3 - 2.4
Free volume (%)
40%
Operation temp. (max) (℃)
1200
Moh's hardness (scale)
> 6.5
Acid resistance (%)
> 99.6
Alkali resistance (%)
> 86
Crush Strength of 17% AL2O3 Inert Alumina Ceramic Ball
Size
Crush Strength
Kg / particle
KN / particle
1/8" (3mm)
> 35
> 0.35
1/4" (6mm)
> 60
> 0.60
3/8" (10mm)
> 85
> 0.85
1/2" (13mm)
> 185
> 1.85
3/4" (19mm)
> 487
> 4.87
1" (25mm)
> 850
> 8.5
1-1/2" (38mm)
> 1200
> 12
2" (50mm)
> 5600
> 56
Other sizes can be customized.
Size and Tolerance of 17% AL2O3 Inert Alumina Ceramic Ball
Size and tolerance (mm)
Size
3 / 6 / 9
9 / 13
19 / 25 / 38
50
Tolerance
± 1.0
± 1.5
± 2.0
± 2.5
Frequently Asked Questions (FAQ)
Q: What is the main application of 17% inert alumina ceramic balls?
They are primarily utilized as catalyst bed support media and tower packing in petroleum, chemical, fertilizer, gas, and environmental protection processing plants.
Q: What is the maximum operating temperature they can endure?
The maximum continuous operation temperature for 17% Al2O3 ceramic balls is up to 1200℃, making them suitable for high-thermal operating environments.
Q: How do these ceramic balls perform under acidic and alkaline conditions?
They provide superior chemical resistance, offering over 99.6% acid resistance and greater than 86% alkali resistance against industrial solvents and reagents.
Q: Why are they used to support catalyst beds?
They offer high mechanical crush strength and chemical stability to reliably support the catalyst load while distributing gas and liquid uniformly through the reactor column.
Q: Are custom sizes available for order?
Yes, beyond standard dimensions (ranging from 3mm to 50mm), customized sphere sizes and specific technical requirements can be supplied upon request.
