Wholesale Metal Cascade Mini Ring Tower Packing Supplier, Quotes

1 / 2

Wholesale Metal Cascade Mini Ring Tower Packing Supplier, Quotes

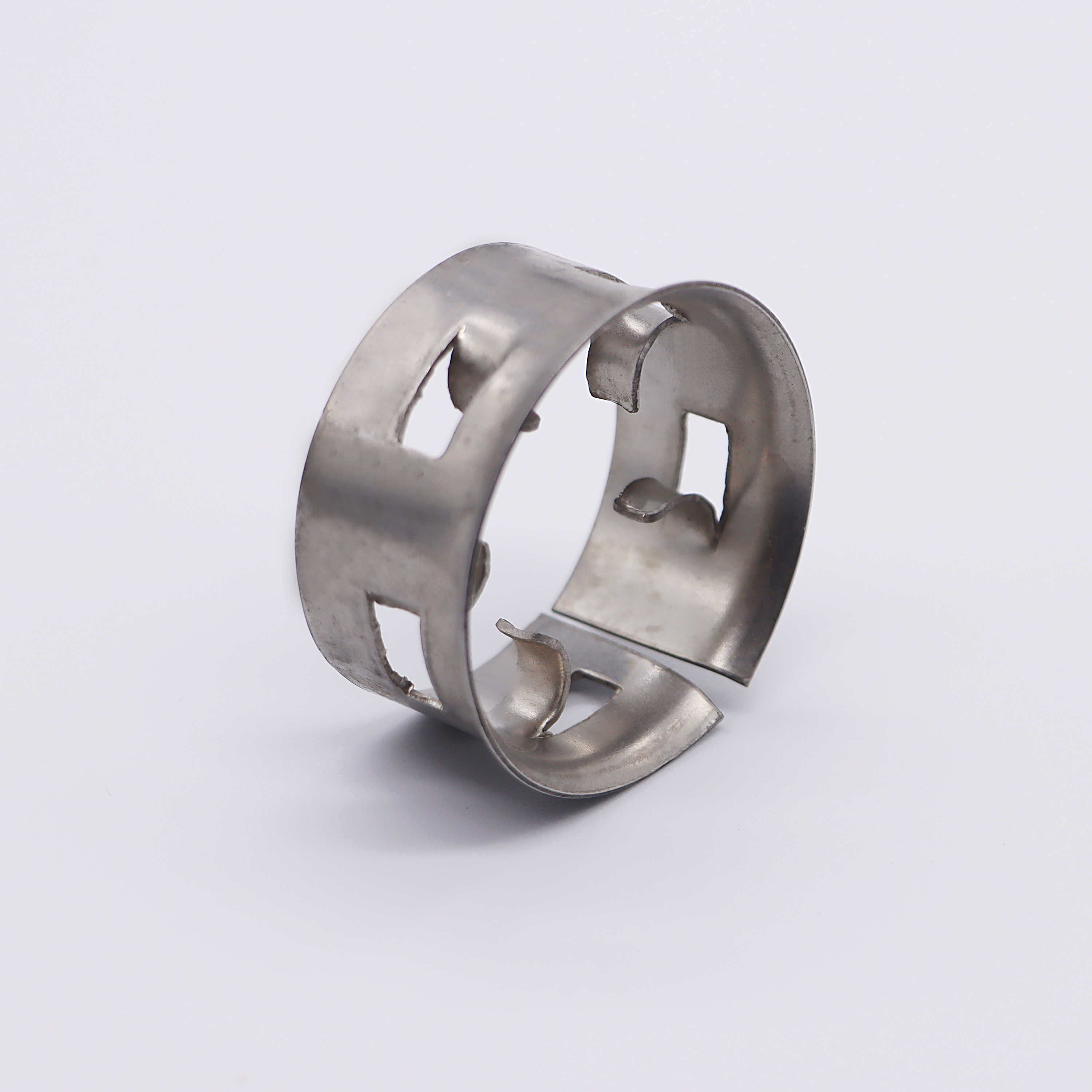

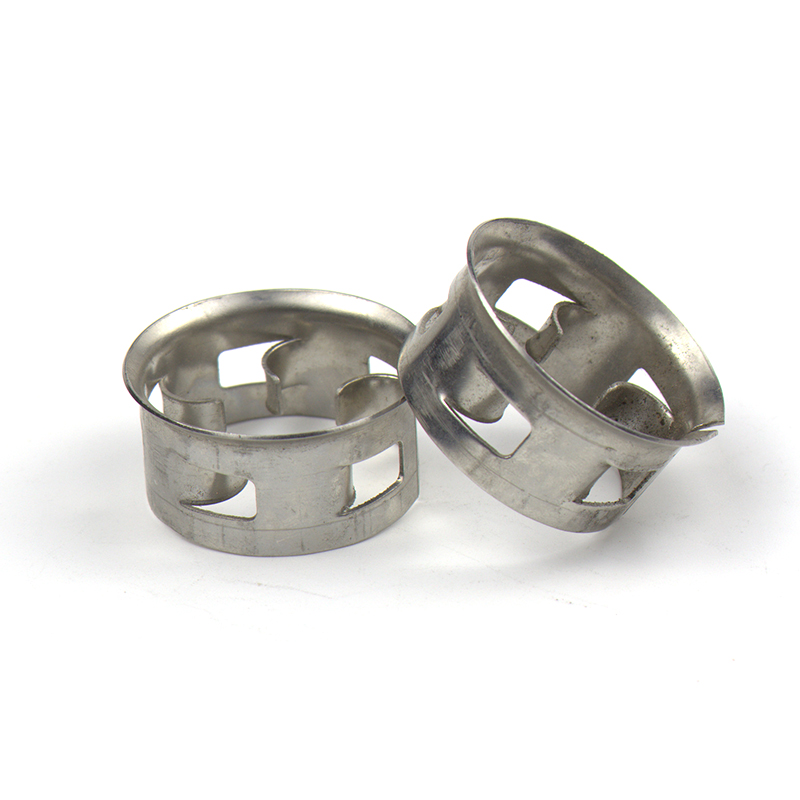

Metal cascade-mini rings random tower packings, with one or two bevel edges in their sidepieces, are of more mechanical strength and better gas through capacity than pall rings. In random packed tower, most of the rings point contact (not linearity contact) to each other, contribute to the liquid film liquidity and mass transfer efficiency. Zhongtai's Metal cascade-mini rings are widely used in petroleum, chemicals, Chlor-Alkali and environmental industries.

Send Inquiry

Product Description

Technical Specification of Metal Cascade Mini Ring

A: Metal Cascade-mini Rings With TWO Bevel Edges

Type	Size	Surface Area	Void Ratio	Bulk Number	Packing Factor
Type	(mm)	(m²/m³)	(%)	(Pieces/m³)	(m⁻¹)
0P	17×15×6×0.3	427	94	530,000	55
1P	25×22×8×0.3	230	96	150,000	40
1.5P	34×29×11×0.3	198	97	60,910	29
2P	43×38×14×0.4	164	97	29,520	22
2.5P	51×44×17×0.4	127	97	17,900	17
3P	66×57×21×0.4	105	98	8,800	14
4P	86×76×89×0.4	90	98	5,000	10
5P	131×118×41×0.6	65	98	1,480	7

B: Metal Cascade-mini Rings With ONE Bevel Edge

Size	Surface Area	Void Ratio	Bulk Number	Packing Dry Factor
(mm)	(m²/m³)	(%)	(Pieces/m³)	(m⁻¹)
25	220	96.5	97,160	273.54
38	154.3	95.9	31,800	185.8
50	109.2	96.1	12,300	127.4
76	73.5	97.6	3,540	81

Other specifications are available upon request.

The above data is reference to material stainless steel in the material thickness shown. Other wall thicknesses are available on request.

Material available: Carbon steel, stainless steel including 304, 304L, 410, 316, 316L, etc.

Advantages of Metal Cascade Mini Ring

Lower pressure drop.

Good liquid/gas distribution and higher mass transfer efficiency.

High resistance to fouling, high temperature.

High Mechanical Strength, suitable for deeper beds.

High temperature resistance.

Application of Metal Cascade Mini Ring

Absorption Aeration Degassing Desorption Distillation Stripping Heat Recovery Extraction

Packaging & Shipping

Package	Carton box, Jumbo bag, Wooden case
Container	20GP	40GP	40HQ	Normal order	Minimum order	Sample order
Quantity	25 CBM	54 CBM	68 CBM	<25 CBM	1 CBM	< 5 pcs
Delivery time	7 days	14 days	20 days	7 Days	3 days	Stock
Comments	Customized making is allowed.

Frequently Asked Questions (FAQ)

What materials are available for the Metal Cascade Mini Ring?

We supply metal cascade mini rings in carbon steel and various grades of stainless steel, including 304, 304L, 410, 316, and 316L. Other alloys can be accommodated upon request.

What makes the cascade mini ring design superior to standard random packing rings?

Its beveled edges allow the rings to orient predominantly along their vertical axis, ensuring a lower pressure drop, reduced fouling tendency, and significantly higher liquid-gas mass transfer efficiency.

Can wall thickness and dimensions be customized?

Yes, while our standard specifications cover 0P through 5P and various bevel types, customized wall thicknesses, diameter sizes, and dimensions are available to match your specific tower design.

What is the minimum order quantity (MOQ) and sample lead time?

Our standard minimum order is 1 CBM. For small sample orders (< 5 pcs), samples can be dispatched directly from stock.

What are the common packaging methods for export?

Depending on the order volume and transport method, products are packed securely in standard carton boxes, jumbo bags, or export-grade wooden cases to ensure safe transit.
