| Size | Number (per m³) |
Surface Area (m²/m³) |
Free Volume (%) |
|
|---|---|---|---|---|
| Inch | mm | |||
| 2” | 50 × 25 × 0.8 | 19,180 | 112.8 | 96.2% |
| 3” | 75 × 75 × 1.0 | 5,460 | 64.1 | 97.3% |
| 4” | 100 × 45 × 1.2 | 2,520 | 53.4 | 97.3% |
| Package | Carton box, Jumbo bag, Wooden case | |||||
| Container / Mode | 20GP | 40GP | 40HQ | Normal Order | Minimum Order | Sample Order |
| Quantity | 25 CBM | 54 CBM | 68 CBM | < 25 CBM | 1 CBM | < 5 pcs |
| Delivery Time | 7 days | 14 days | 20 days | 7 days | 3 days | In Stock |

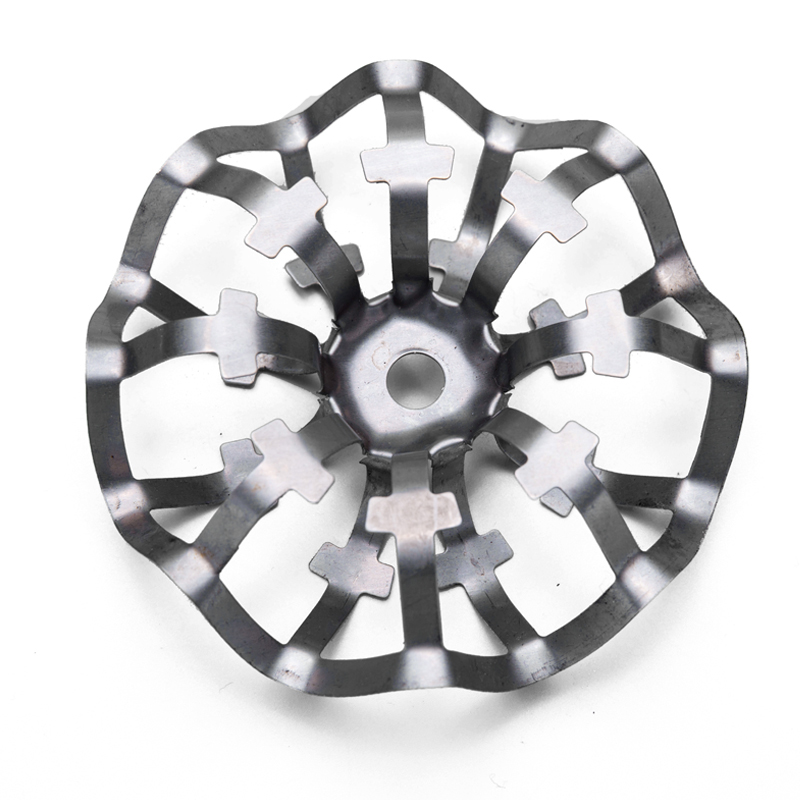

Metal Tellerette Rings are supplied in three primary dimensions: 2-inch (50×25×0.8 mm), 3-inch (75×75×1.0 mm), and 4-inch (100×45×1.2 mm). Custom sizes can also be engineered upon request.
Depending on the diameter, the surface area ranges from 53.4 m²/m³ (4”) up to 112.8 m²/m³ (2”). The free volume ranges from 96.2% to 97.3%, ensuring high void fraction, minimal liquid hold-up, and low pressure drop.
Shipments can be packed in carton boxes, industrial jumbo bags, or secure wooden cases to protect product structural integrity during intermodal transport.
The minimum standard order quantity is 1 CBM. For testing and quality assessment, sample orders of under 5 pieces are available ex-stock.
Sample orders are dispatched immediately from stock. Standard lead times include 3 days for MOQs (1 CBM), 7 days for 20GP containers (<25 CBM), 14 days for 40GP (54 CBM), and 20 days for 40HQ (68 CBM).
Yes, customized manufacturing is available according to specific drawing requirements, material grades, or project operational specifications.
