Which alumina grade of inert ceramic ball should I choose for catalyst bed support?

Standard 17–23% Al2O3 inert balls suit most hydrotreating and reforming catalyst supports. Choose 23–30% for higher crush strength, and 99% alumina where high-temperature steam could cause silica leaching that would poison downstream catalysts.

What information do you need to recommend tower packing?

Please share the tower diameter and bed height, the service (distillation, absorption, stripping or scrubbing), the medium and its corrosivity, operating temperature and pressure, and any pressure-drop or capacity targets. Our engineers then propose packing type, material and size.

Can I receive samples and technical data sheets before ordering?

Yes. Samples of standard sizes and technical data sheets covering chemical composition, bulk density, crush strength and other key properties can be provided for evaluation before a production order.

How are ceramic and metal packing products packed for export?

Depending on product and volume, we use cartons, jumbo bags, plastic drums or wooden cases on fumigation-free or fumigated pallets, with clear marking for each size and batch to simplify site receiving.

Where is Zhongtai located and can buyers visit the factory?

We are based in Pingxiang, Jiangxi Province, a recognized Chinese hub for industrial ceramics and chemical packing. Buyers and third-party inspectors are welcome to visit; Korean customers audited our ceramic production in July 2018.

China Wire Gauze Metal Structured Packing Metal Structured Wire Packing Factory, Factories

1 / 1

China Wire Gauze Metal Structured Packing Metal Structured Wire Packing Factory, Factories

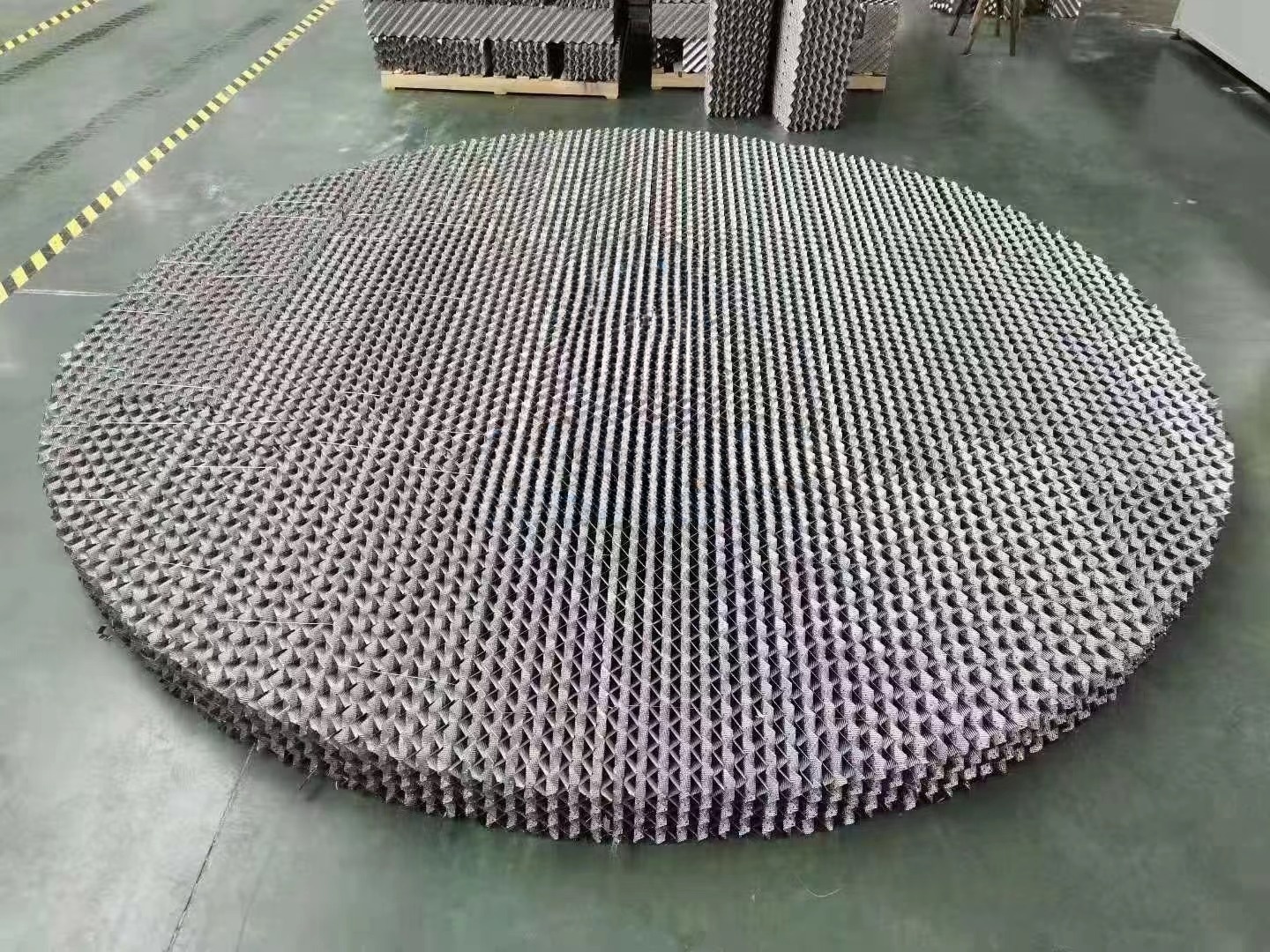

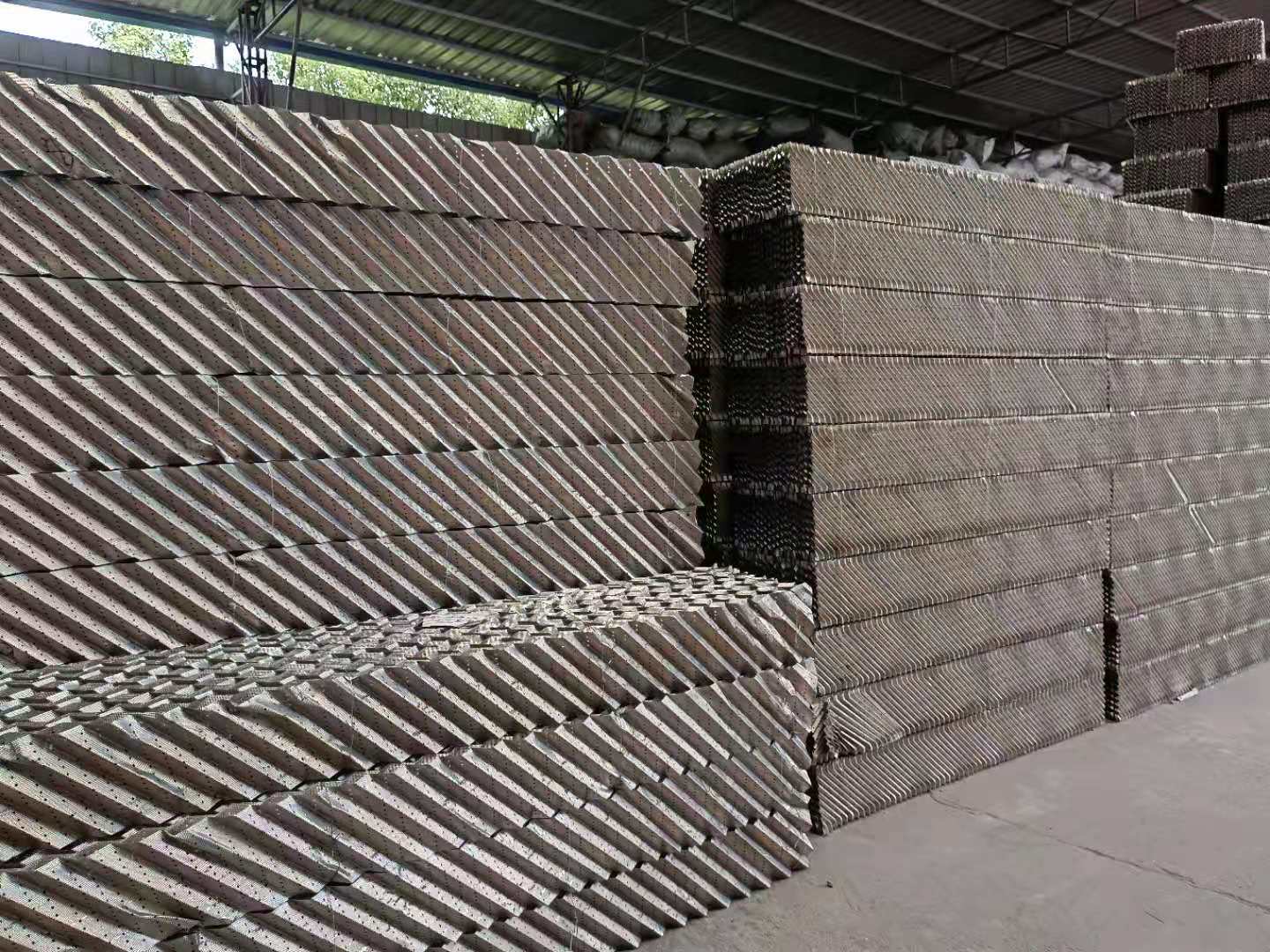

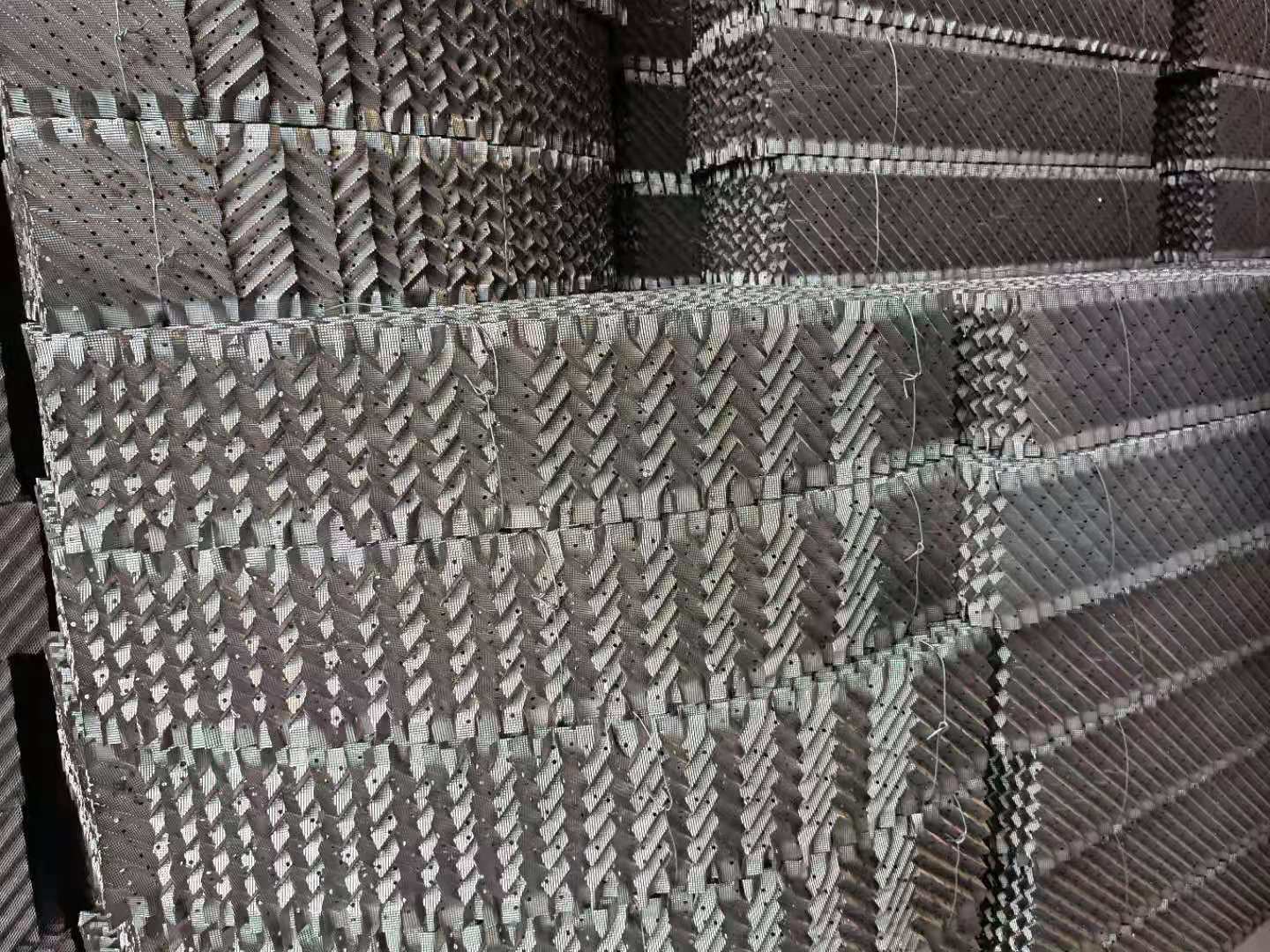

Metal structured packing typically consists of metallic wires and corrugated metallic sheets, which at uniform geometry arranged and neatly piled in the tower. It is widely used in the reactors in fine chemical industry, petrochemical industry, and fertilizer industry as mass transfer media and often used in difficult separation and the vacuum distillation of heat content, atmospheric distillation and absorption process. Technical Parameter

Model		Perforated Plate Corrugated Packing
Material		carbon steel, stainless steel 304, 304L, 410, 316, 316L, etc.
Model		125Y	250Y	350Y	500Y	125X	250X	350X	500X
Specific surface	(m2/m3)	125	250	350	500	125	250	350	500
Bulk density	(kg/m3)	100	200	280	360	100	200	280	360
Void ratio	(%)	98	97	94	92	98	97	94	92
Obl.	angle	45°	45°	45°	45°	30°	30°	30°	30°
P	(Pa/plate)	200	300	350	400	140	180	230	280
Theo. plate	(piece/m)	1~1.2	2~2.5	3.5~4	4~4.5	0.8~0.9	1.6~2	2.3~2.8	2.8~3.2

Model		Wire Gauze Packing
Model	Specific surface	Bulk density	Void ratio	Obl.	ΔP	Theo. plate	HETP/mm	F factor m/s (kg/m3)0.5
	(m2/m3)	(kg/m3)	(%)	angle	(Pa/plate)	(piece/m)
250AX	250	125	95	30	100-400	2.5~3	100	2.5-3.5
500BX	500	250	90	30	400	4~5	200	2.0-2.4
700CY	700	350	85	45	600-700	8~10	333-400	1.5-2.0
Typical Application		Absorption, scrubbing and stripping services

Application Perforated plate corrugated packing with the wide range of applications. Diameter: 0.1-12m;Pressure: Vacuum to high pressure; Liquid lood: 0.2 to more than 300 m3/m2.h; System: Ethylbenzene/ styrene, Fatty acide, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.

Send Inquiry

Product Description

Products Description

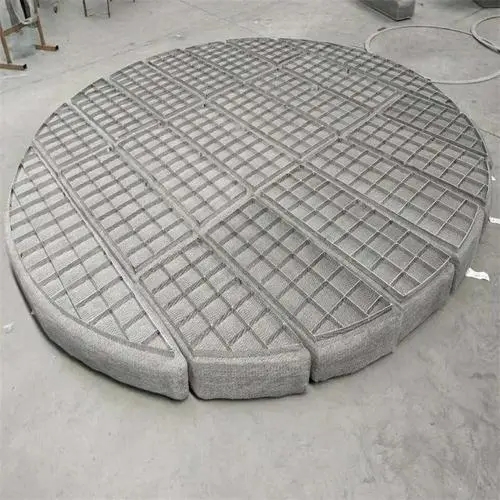

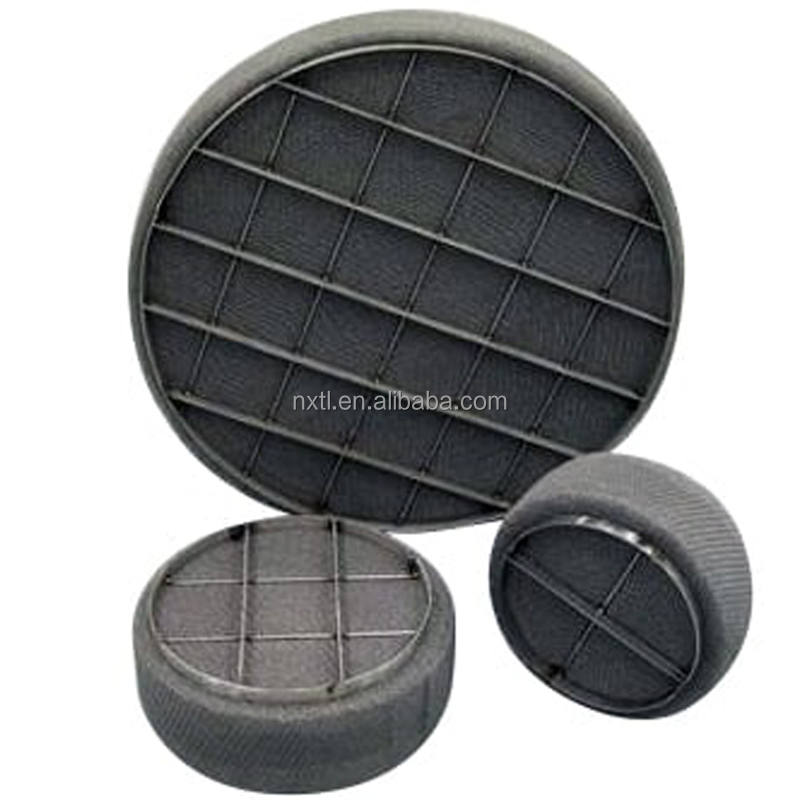

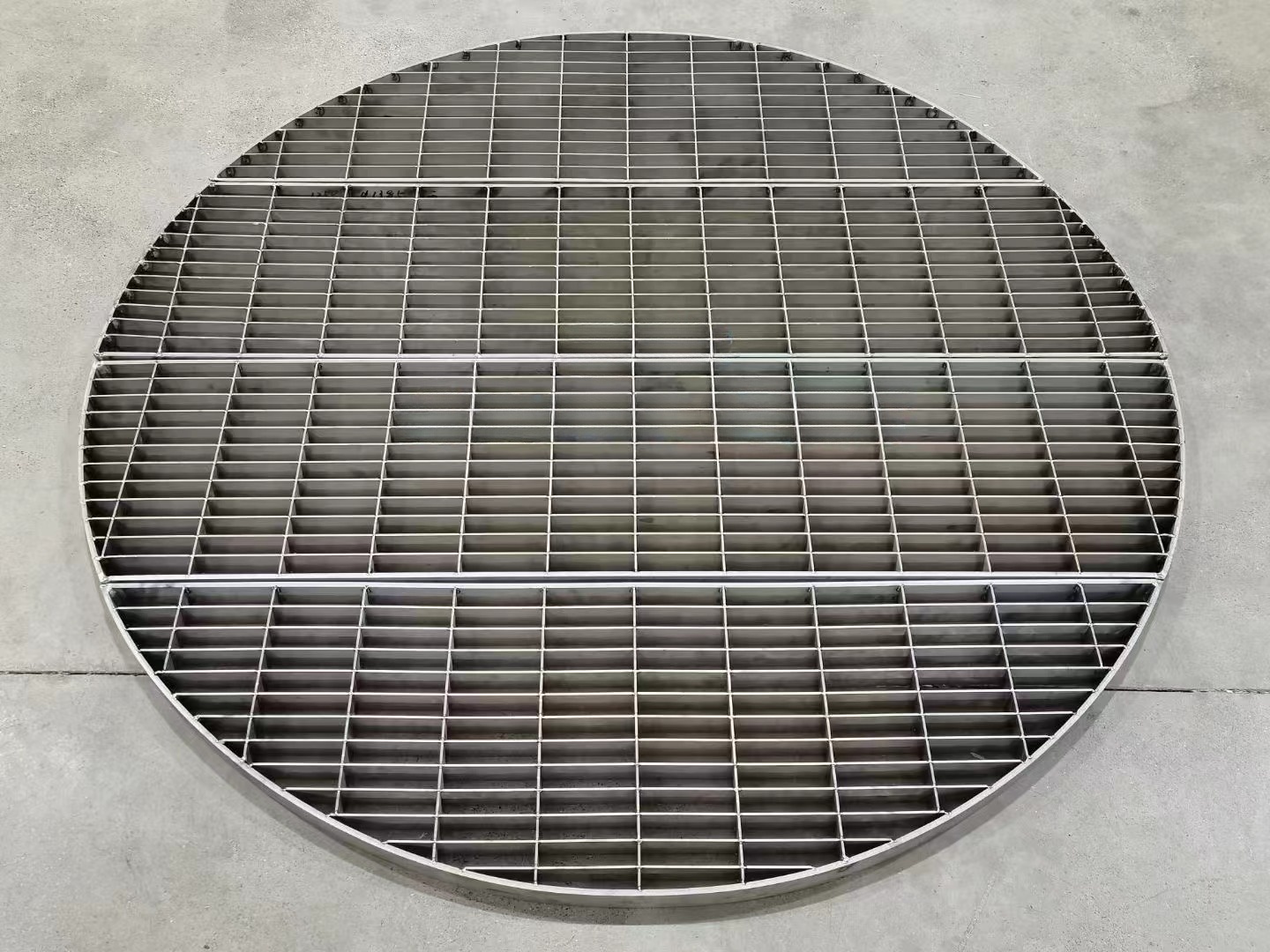

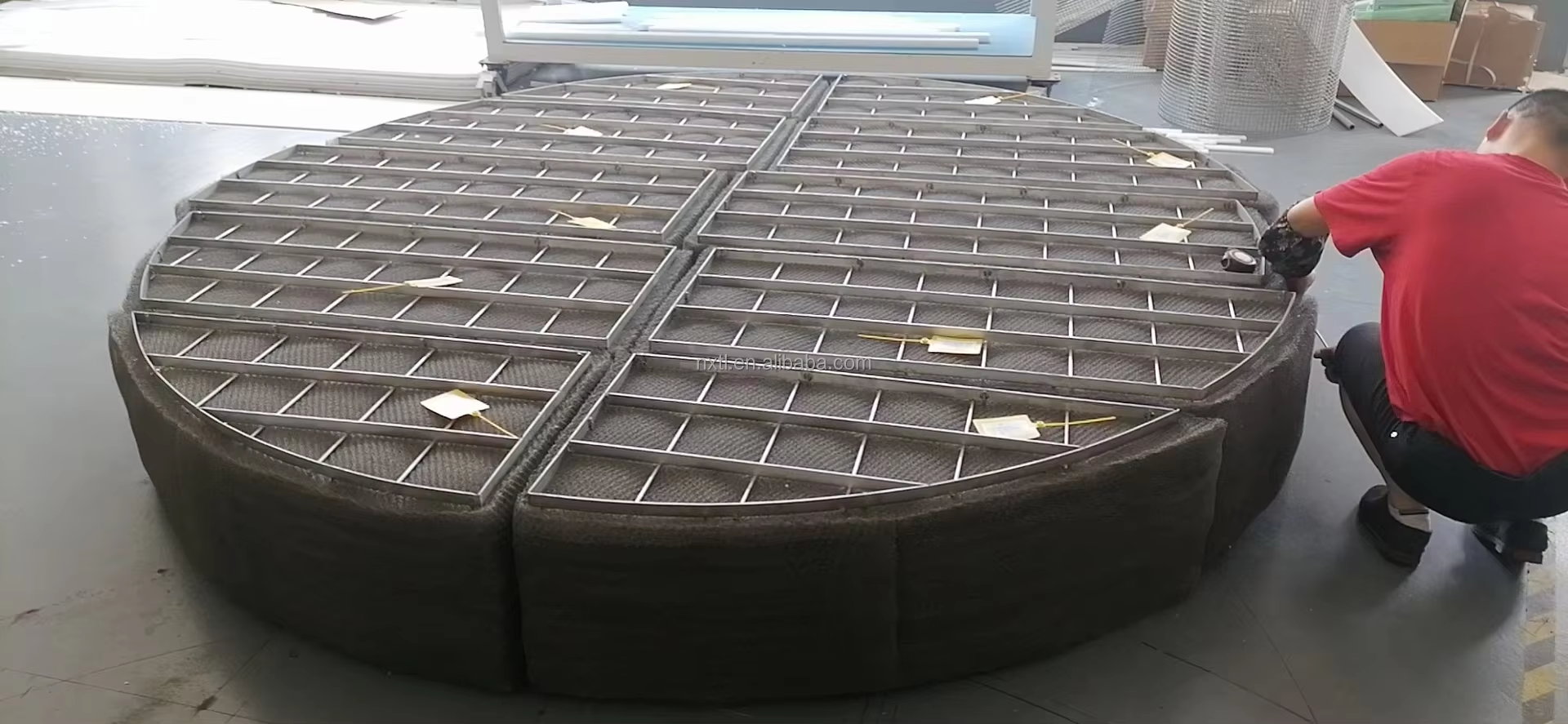

Mist eliminator is used for wire mesh demister, oil-gas separator, dust remover, dedusting apparatus, environmental protection device, various separating and filtering devices, filtering eliminate for auto and tractor, sealing, shock absorption, muffling and purifying components for auto, as well as used for electromagnetic interference and shielding devices for electric apparatus.

Wire Size: 0.08mm - 0.30mm flat wire or round wire. Single-strand knitted, multi-strand knitted, metal & non-metal (various fibers) knitted wires may be pressed into various specification of corrugated wire as require.

Product Paramenters

Type	Specification Parameters
Standard type	40-100 60-150 105-300 140-400 160-400 200-570
High-efficiency type	60-100 80-100 80-150 90-150 150-300 200-400 300-600
High-penetration type	20-100 30-150 70-400 100-600 170-560
Damping type	33-30 38-40 20-40 26-40 30-40 30-50 48-50 30-60 30-80 50-120

Standard Stype
Wire diameter dw(mm)		Width Tolerance (mm)	Density (kg/m3)	Surface Area (m2/m3)		Void Fraction
Flat Wire	Round Wire			Flat Wire	Round Wire
0.1*0.4	0.23	±20	150	475	320	0.981
High Penetration
Wire Diameter dw(mm)		Width Tolerance (mm)	Density (kg/m3)	Surface Area (m2/m3)		Void Fraction
Flat Wire	Round Wire			Flat Wire	Round Wire
0.1*0.4	0.23	±20	98	313	217	0.9875
High Efficiency
Wire Diameter dw(mm)		Width Tolerance (mm)	Density (kg/m3)	Surface Area (m2/m3)		Void Fraction
Flat Wire	Round Wire			Flat Wire	Round Wire
0.1*0.28	0.19	±20	182	626	484	0.977

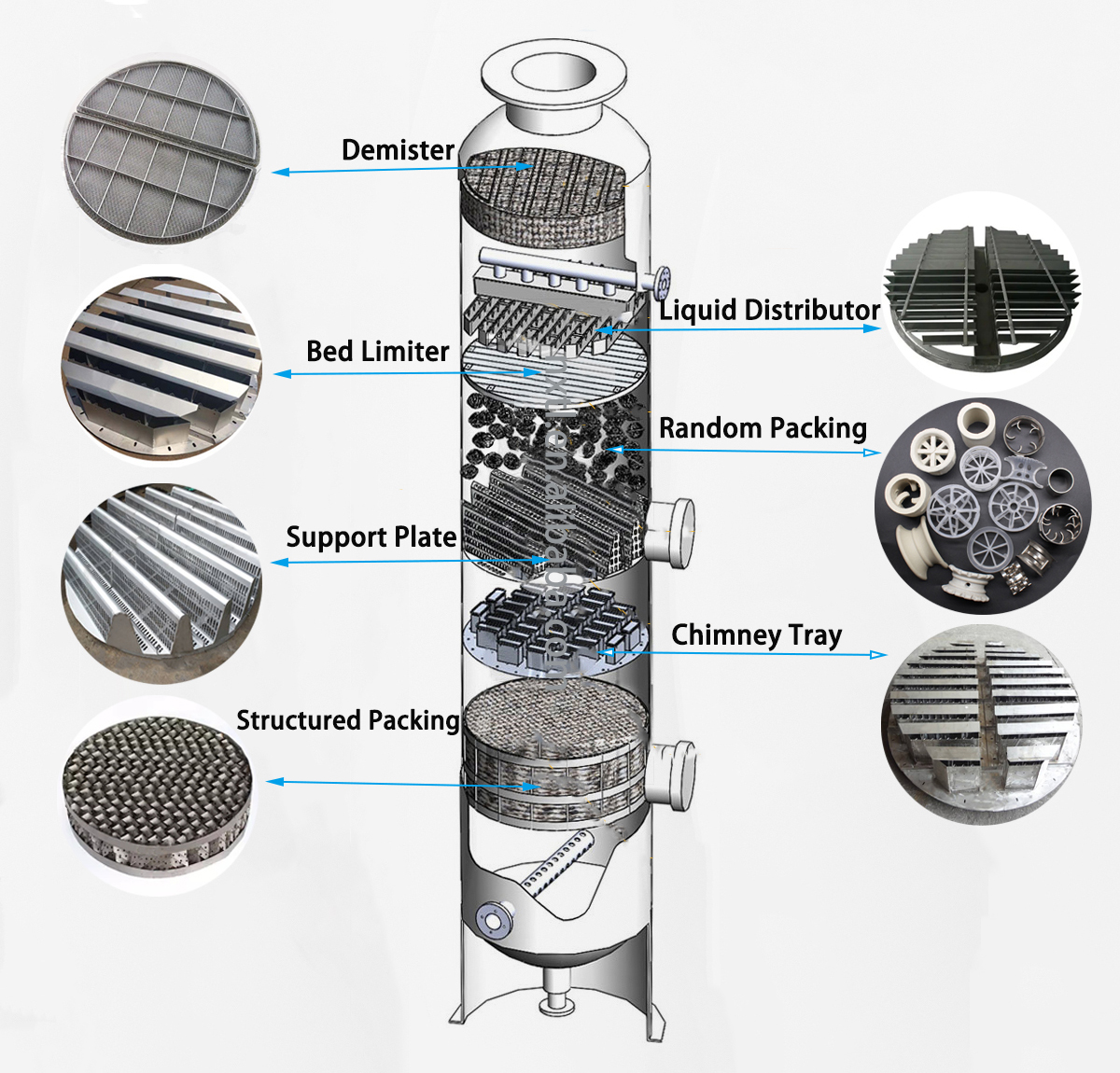

Application

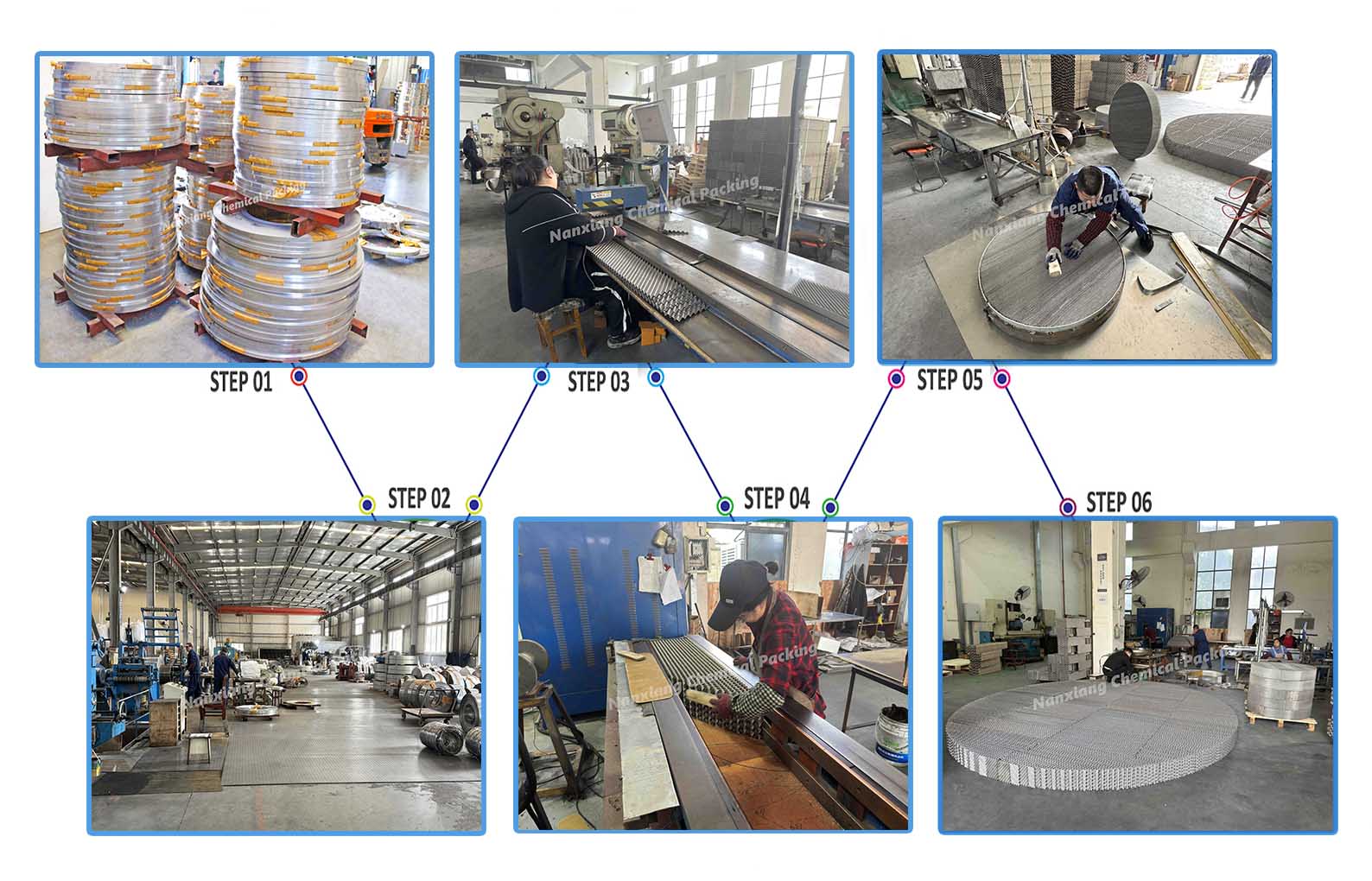

Production workshop

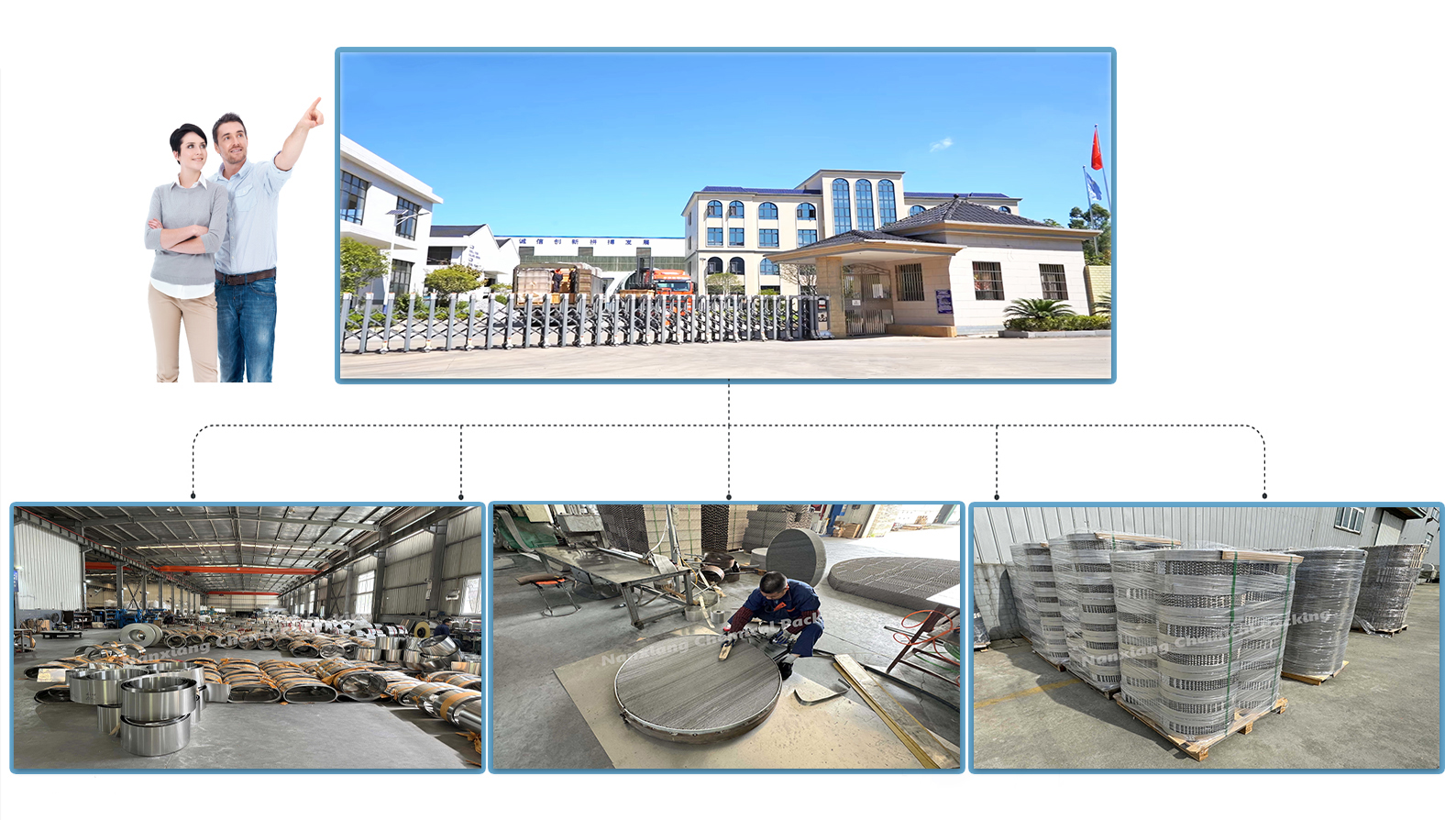

Company Profile

Pingxiang Nanxiang Chemical Packing Co., Ltd was established in 2003, It is a professional manufacturer and exporter that has more than 30 years experience in Chemical Packing. Main products are Alumina Ceramic Ball, Tower Packings in Ceramic, plastic, and metal material, Molecular Sieve, Honeycomb Ceramics, can be used in all types of petrochemical chemical processes and environmental application.

Our company keeps living up to the belief of "honest selling ,best quality ,people-orientation and benefits to customers" We are doing everything to offer our customers with best services and best products .

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to establish successful business relationships with you, also warmly welcome to visit our factory.

Customer Visiting

Frequently Asked Questions (FAQ)

What primary applications are mist eliminators used for?

Mist eliminators are widely used in wire mesh demisters, oil-gas separators, dust removers, dedusting apparatus, automotive sealing, vibration damping, acoustic muffling, and electromagnetic interference shielding.

What wire sizes and types are available?

We supply wire sizes ranging from 0.08mm to 0.30mm in both flat and round profiles. Options include single-strand or multi-strand knitting, and metal or non-metal blended knitted wires pressed into corrugated shapes.

What product types can be selected according to application needs?

Standard type, High-efficiency type, High-penetration type, and Damping type are available, each engineered with specific densities, surface areas, and void fractions to balance separation efficiency and pressure drop.

Can specifications be customized for specific equipment?

Yes, knitted mesh configurations, materials, wire dimensions, and corrugated patterns can be custom-tailored to suit specific petrochemical, automotive, or industrial filtering requirements.

What other chemical packing products do you manufacture?

Besides demisters, Pingxiang Nanxiang Chemical Packing specializes in Alumina Ceramic Balls, Tower Packings in ceramic, plastic, and metal materials, Molecular Sieves, and Honeycomb Ceramics.

Can international clients visit the manufacturing workshop?

Yes, customers are warmly invited to visit our production facility to inspect manufacturing workshops, view product testing, and hold technical discussions on custom orders.
