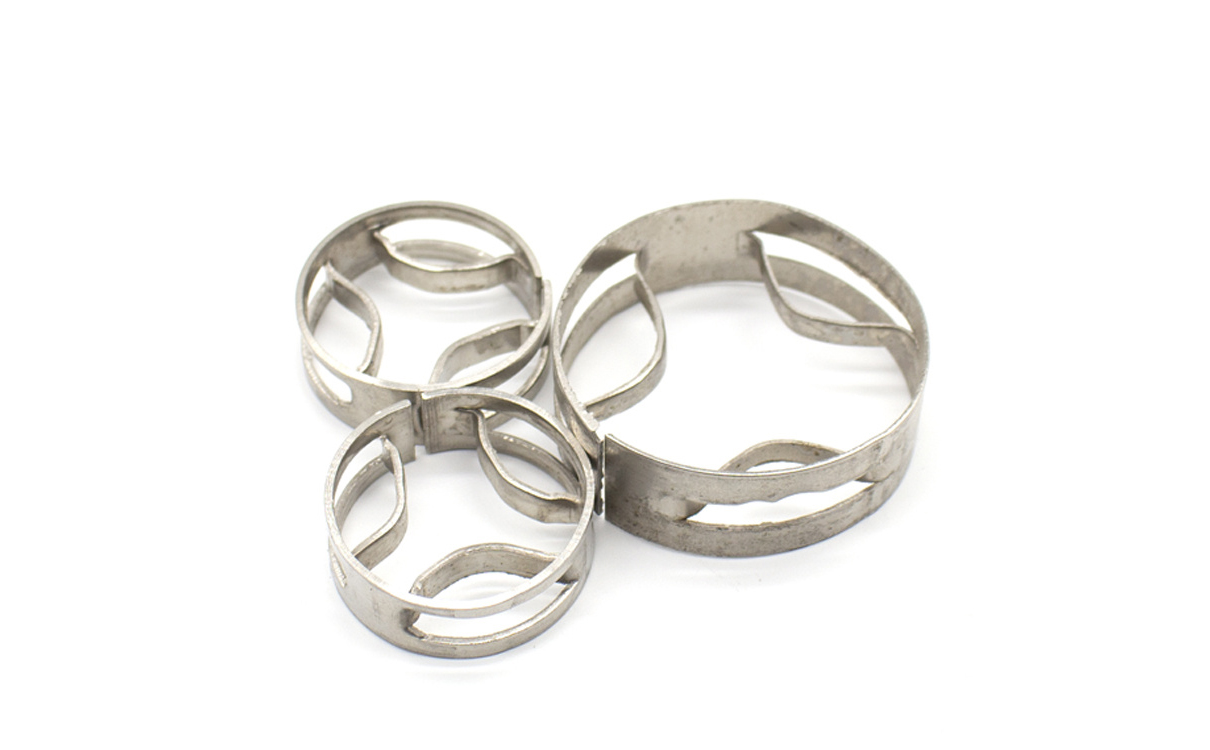

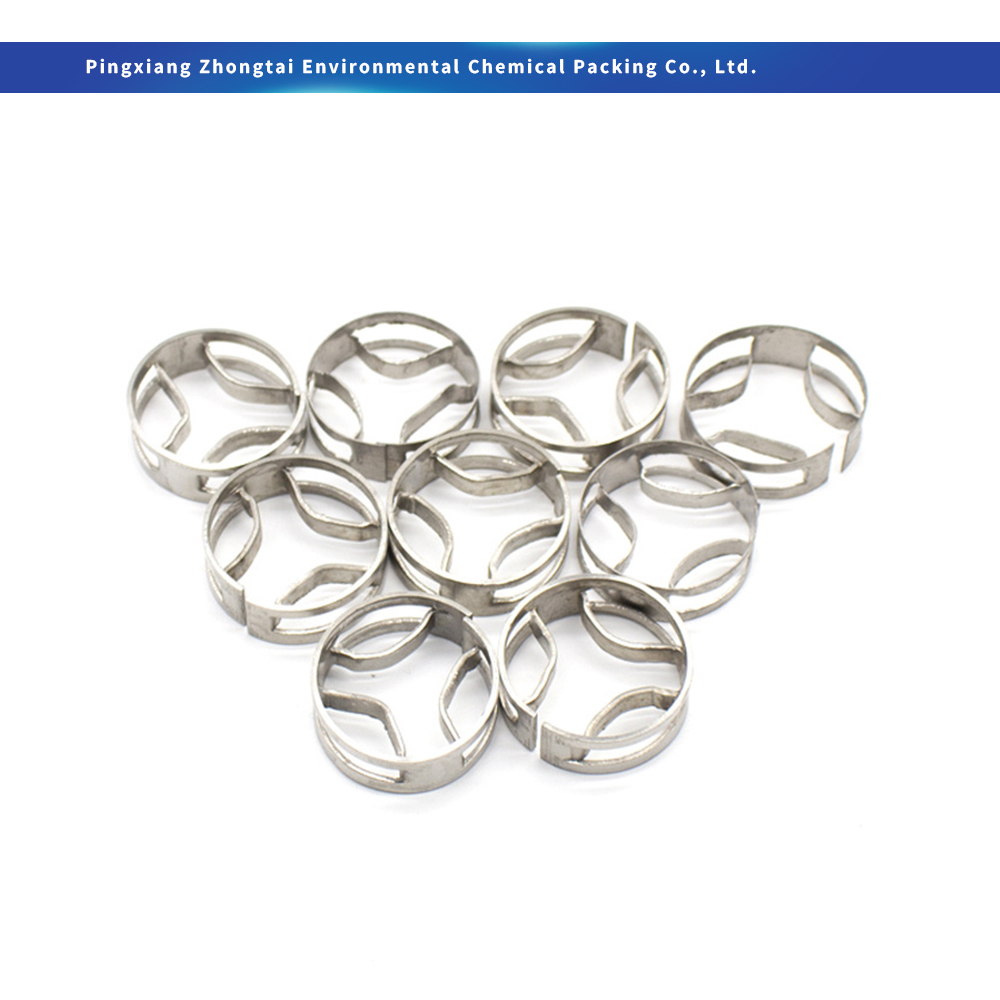

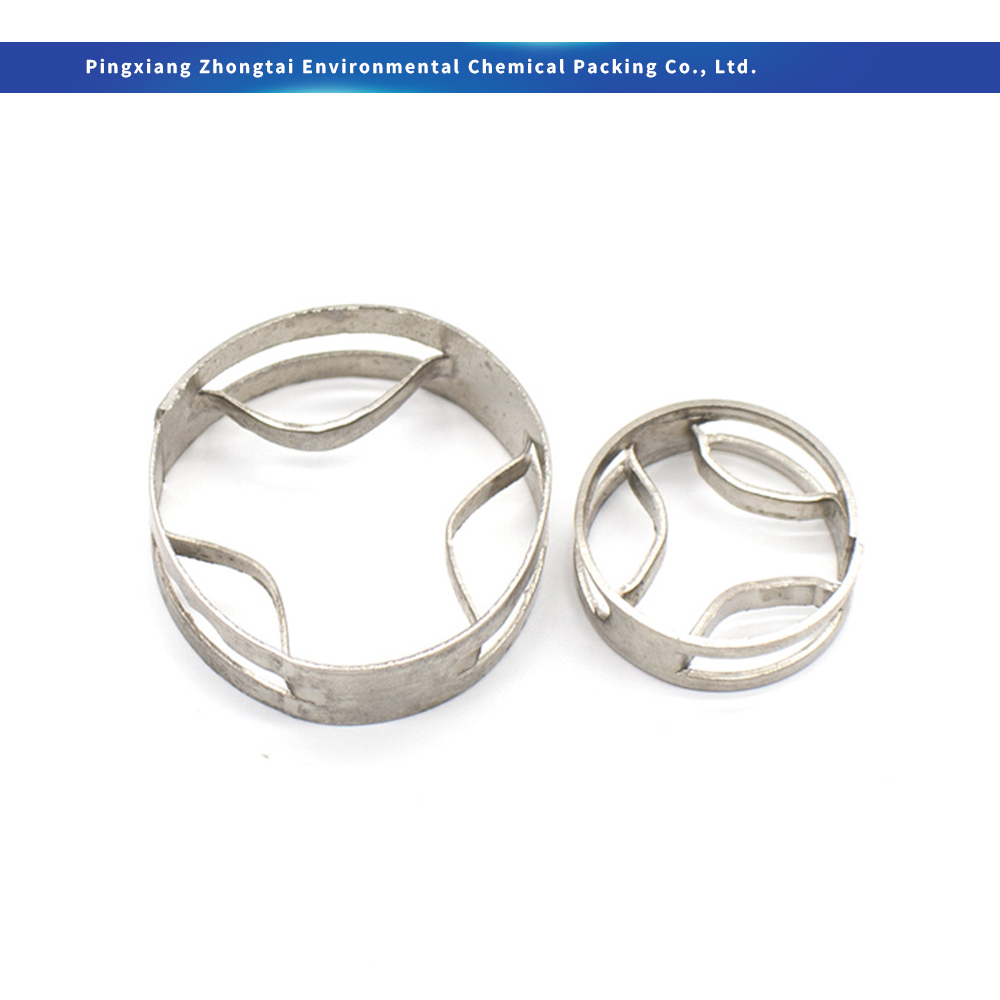

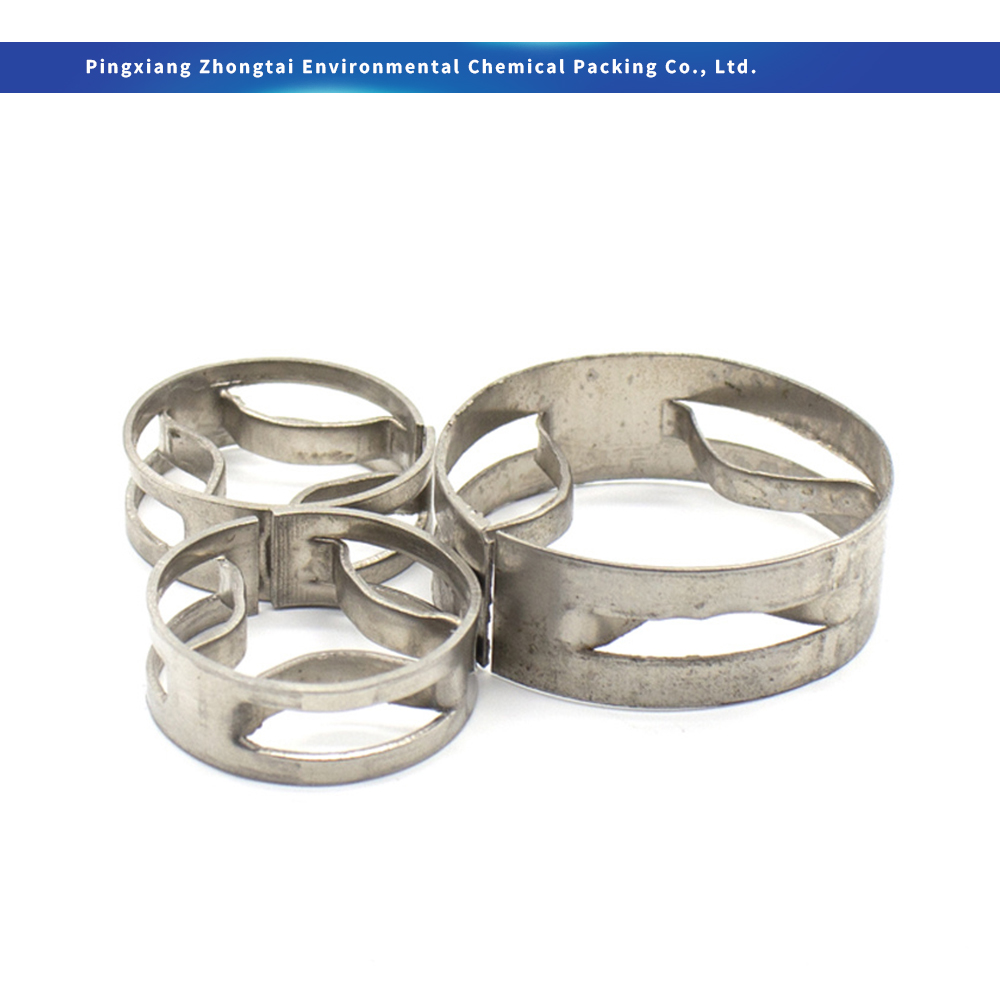

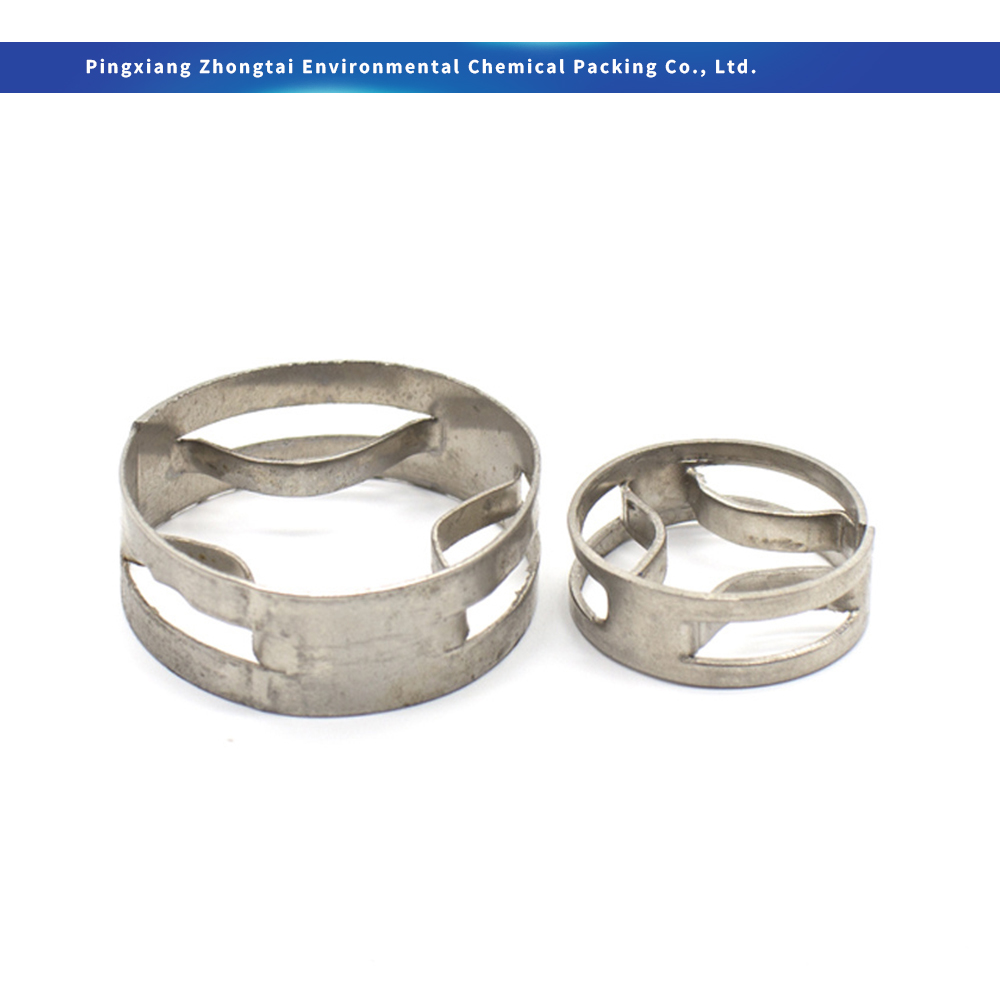

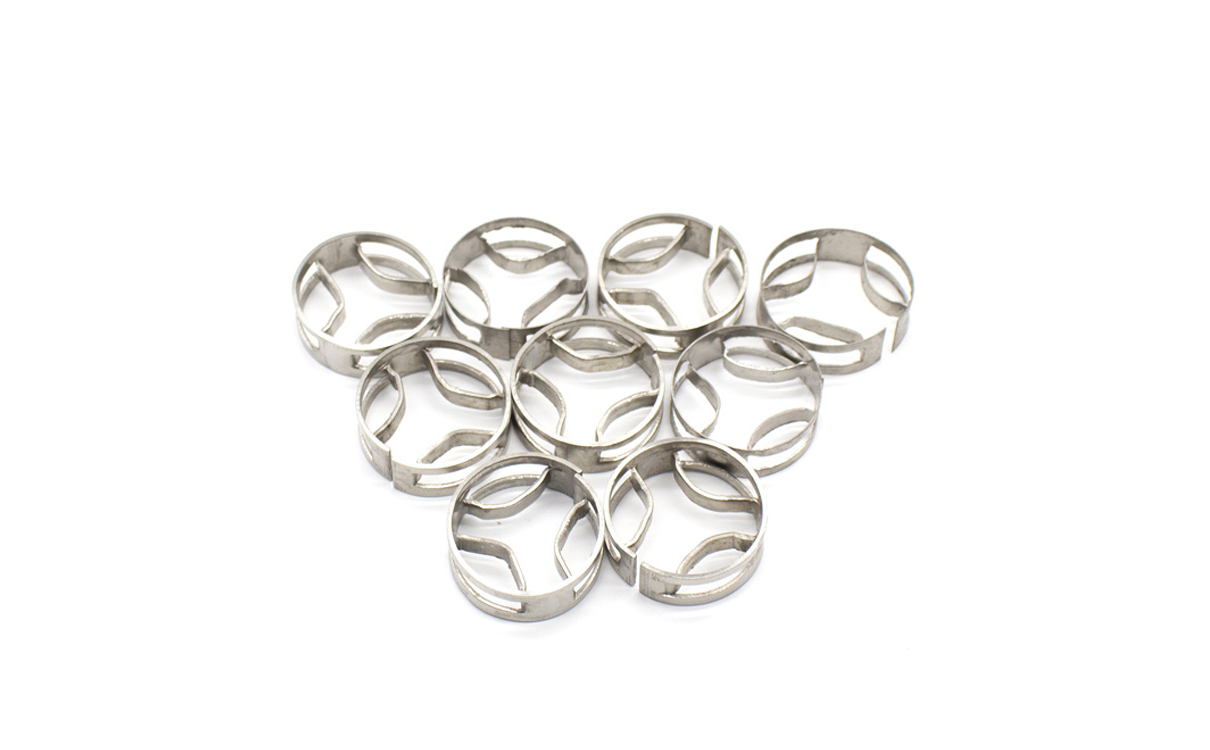

Adopts optimized flat ring compact structure with reasonable gap design, which prevents mutual overlapping and disordered accumulation during stacking.

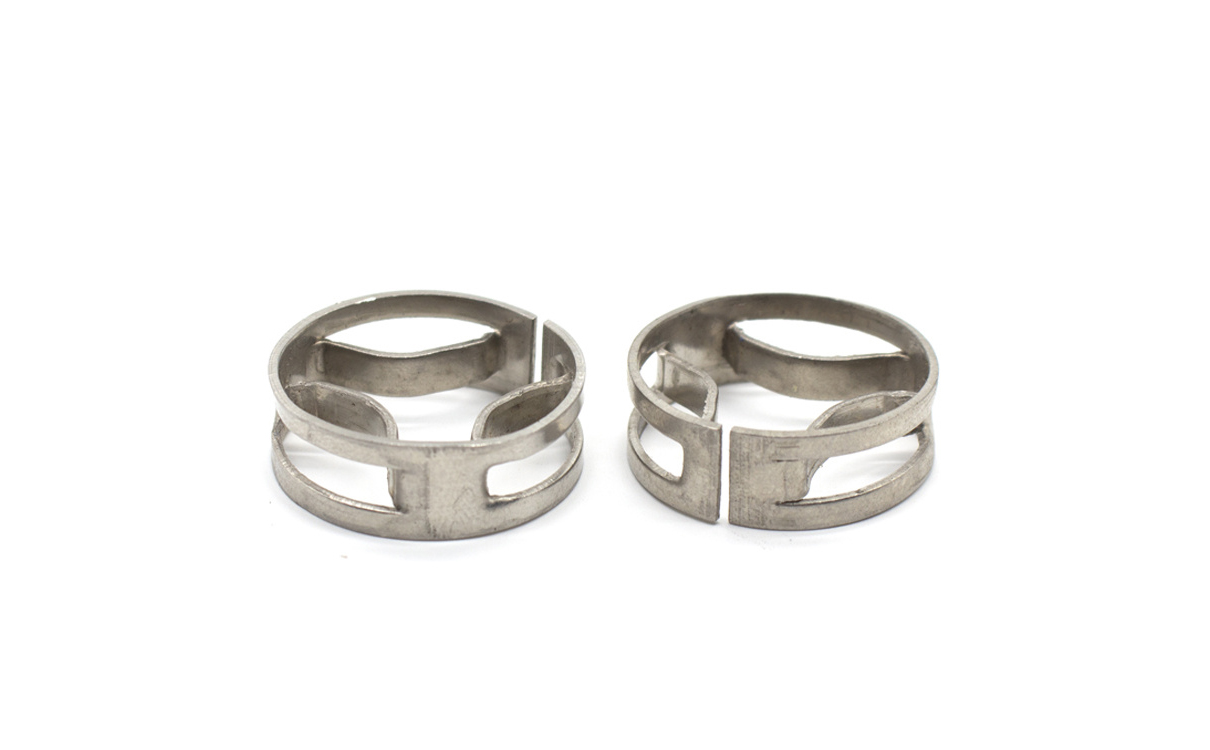

Made of high quality 304 & 316 stainless steel, ensuring outstanding corrosion resistance, high temperature resistance, and stable mechanical performance.
Features larger flux, lower pressure drop, and higher separation efficiency, perfectly tailored for fine distillation, absorption, and waste gas treatment projects.
| Size (mm) | Bulk Density (304, kg/m³) | Number (per m³) | Surface Area (m²/m³) | Free Volume (%) | Dry Packing Factor (m⁻¹) | |
|---|---|---|---|---|---|---|
| 0.5” | 16.5*5.5*0.3 | 333 | 600000 | 330 | 95.8 | 375.6 |
| 0.5” | 16.5*5.5*0.4 | 462 | 600000 | 330 | 94.2 | 395.3 |
| 0.5” | 16.5*5.5*0.6 | 718 | 600000 | 330 | 90.9 | 439.2 |
| 1” | 25*9*0.3 | 221 | 155000 | 219 | 95.5 | 238.5 |
| 1” | 25*9*0.4 | 306 | 155000 | 219 | 96.6 | 246.6 |
| 1” | 25*9*0.6 | 477 | 155000 | 219 | 98.4 | 264.0 |
| 1.5” | 38*12.7*0.6 | 316 | 48000 | 145 | 98.1 | 156.9 |
| 1.5” | 38*12.7*0.8 | 423 | 48000 | 145 | 97.4 | 164.0 |
| 2” | 50*17*0.6 | 250 | 21500 | 115 | 98.3 | 126.4 |
| 2” | 50*17*0.8 | 334 | 21500 | 115 | 97.9 | 130.7 |
| 3” | 76*25*0.8 | 202 | 5800 | 69 | 98.6 | 74.9 |
| 3” | 76*25*1.0 | 256 | 5800 | 69 | 98.2 | 76.5 |
| 3” | 76*25*1.2 | 310 | 5800 | 69 | 99.0 | 78.1 |
It is primarily engineered for industrial mass transfer processes, notably high-precision distillation columns, gas absorption towers, stripping towers, and waste gas scrubbing units.

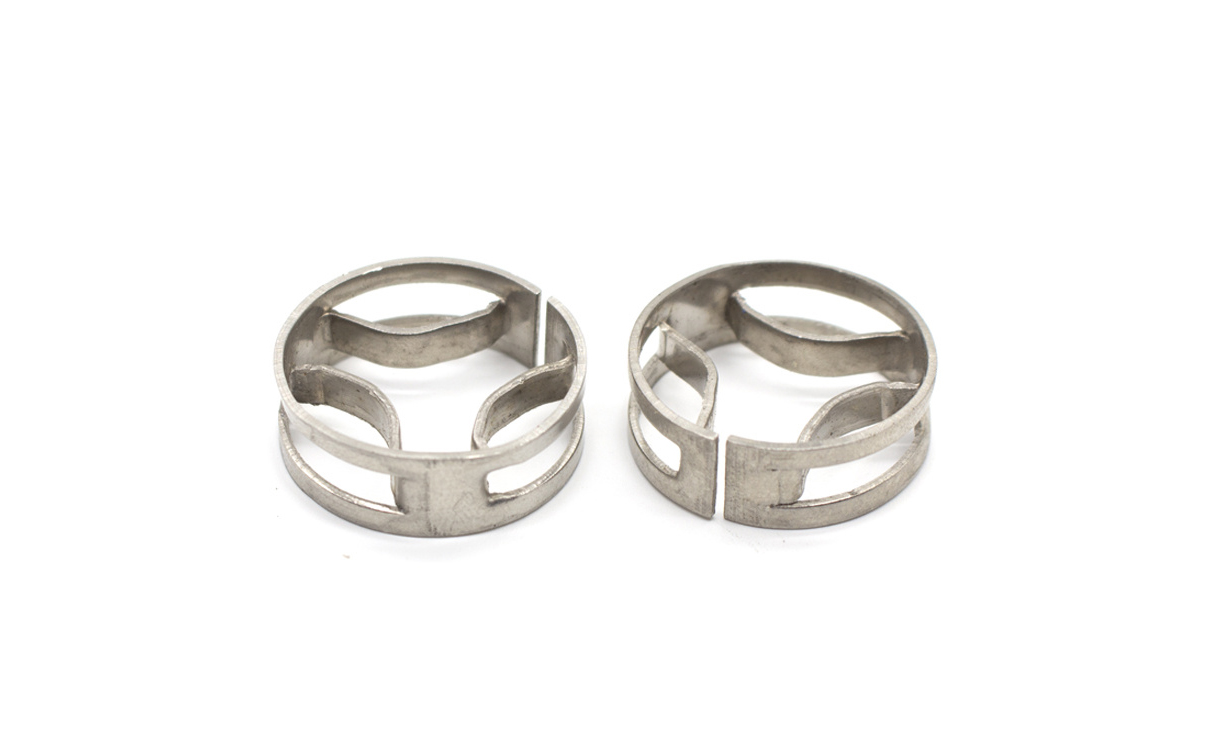

The packing adopts an optimized flat ring design with calculated gap dimensions. This geometric structure effectively eliminates interlocking and overlapping when dumped randomly into columns.
The standard production utilizes high-grade 304 and 316 stainless steel, offering outstanding anti-corrosion features and thermal endurance across extreme operating conditions.
Due to its ultra-high void fraction (up to 99%) and specialized surface profile, it provides significantly larger operational flux, remarkably lower pressure drop, and improved gas-liquid contact efficiency.
Standard diameters range from 0.5 inch up to 3 inches, with customizable wall thicknesses from 0.3 mm to 1.2 mm to adapt to varying mechanical load and flow requirements.
