Which alumina grade of inert ceramic ball should I choose for catalyst bed support?

Standard 17–23% Al2O3 inert balls suit most hydrotreating and reforming catalyst supports. Choose 23–30% for higher crush strength, and 99% alumina where high-temperature steam could cause silica leaching that would poison downstream catalysts.

What information do you need to recommend tower packing?

Please share the tower diameter and bed height, the service (distillation, absorption, stripping or scrubbing), the medium and its corrosivity, operating temperature and pressure, and any pressure-drop or capacity targets. Our engineers then propose packing type, material and size.

Can I receive samples and technical data sheets before ordering?

Yes. Samples of standard sizes and technical data sheets covering chemical composition, bulk density, crush strength and other key properties can be provided for evaluation before a production order.

How are ceramic and metal packing products packed for export?

Depending on product and volume, we use cartons, jumbo bags, plastic drums or wooden cases on fumigation-free or fumigated pallets, with clear marking for each size and batch to simplify site receiving.

Where is Zhongtai located and can buyers visit the factory?

We are based in Pingxiang, Jiangxi Province, a recognized Chinese hub for industrial ceramics and chemical packing. Buyers and third-party inspectors are welcome to visit; Korean customers audited our ceramic production in July 2018.

China High Capacity 304 & 316 SS Metal Super Raschig Ring (RSR) for Low Pressure Drop & Efficient Mass Transfer Factories, Pricelist

1 / 5

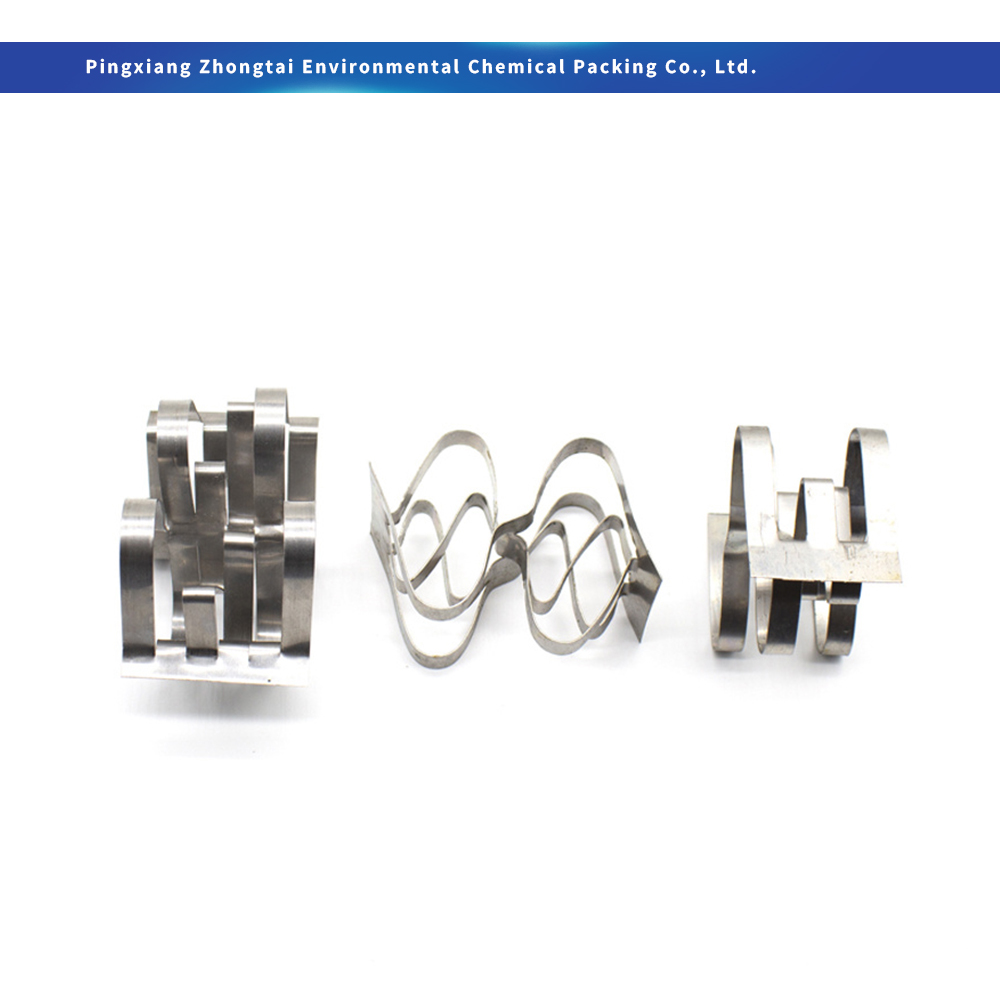

China High Capacity 304 & 316 SS Metal Super Raschig Ring (RSR) for Low Pressure Drop & Efficient Mass Transfer Factories, Pricelist

Send Inquiry

Product Description

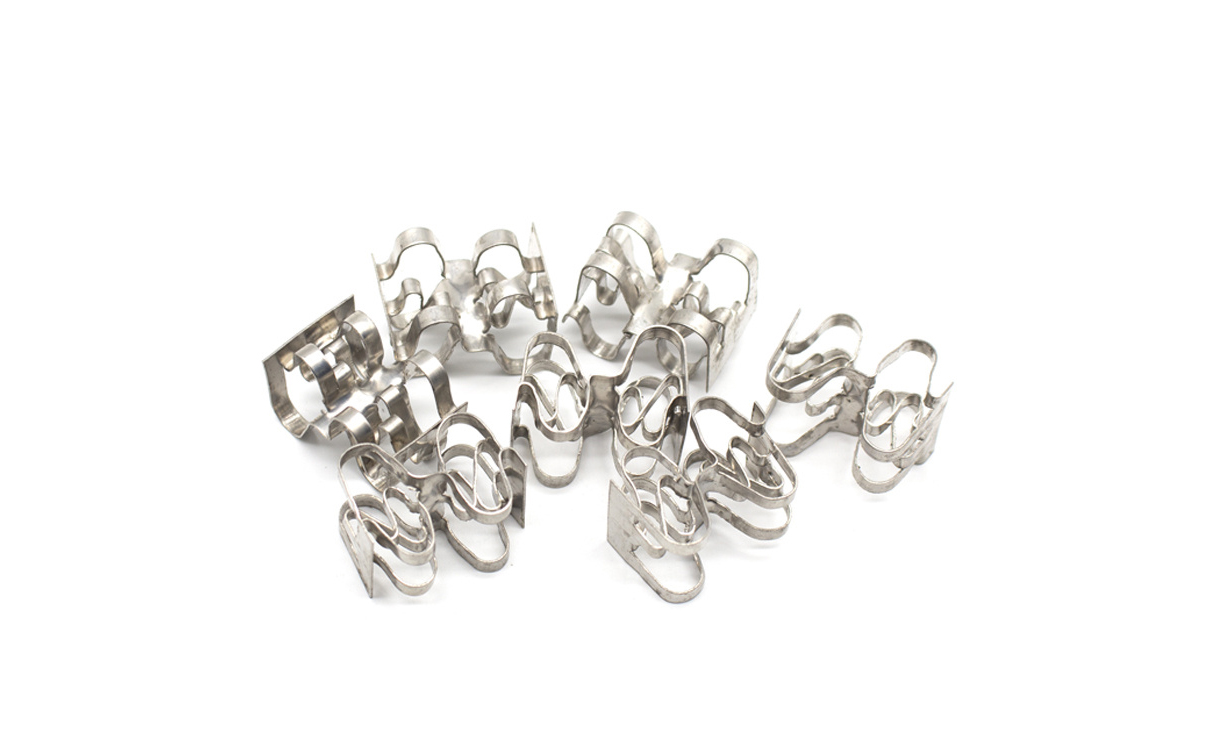

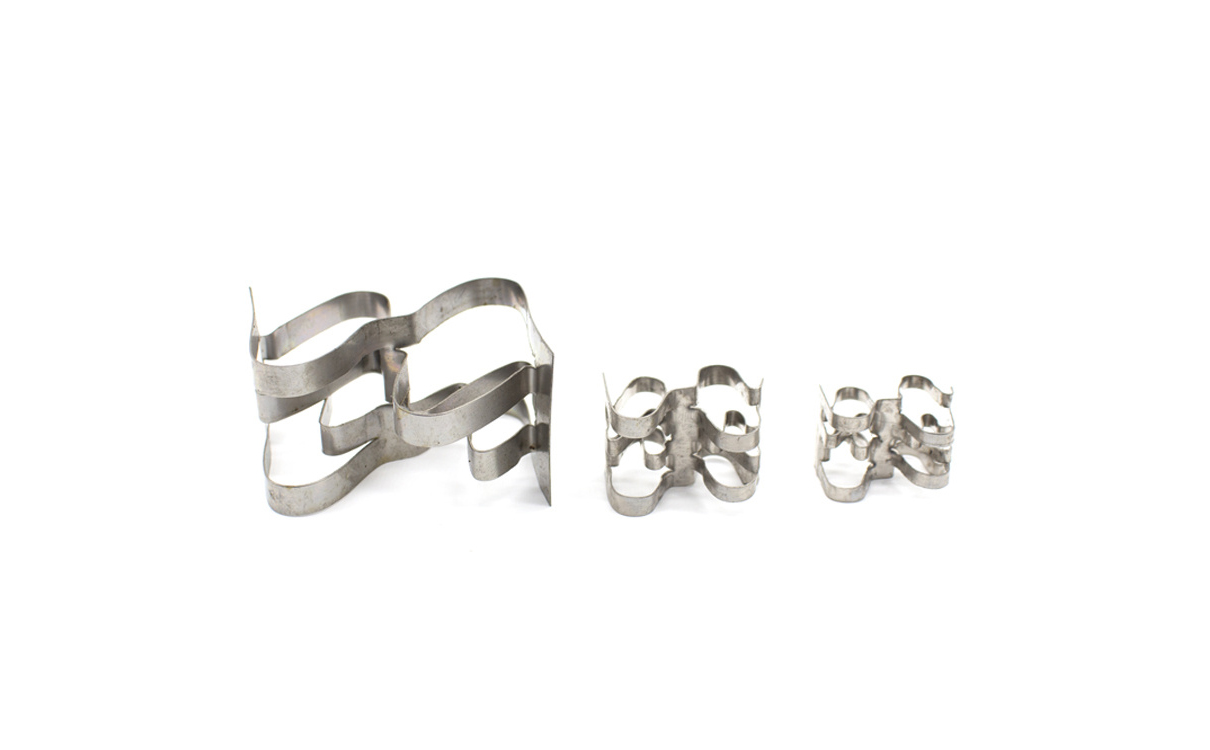

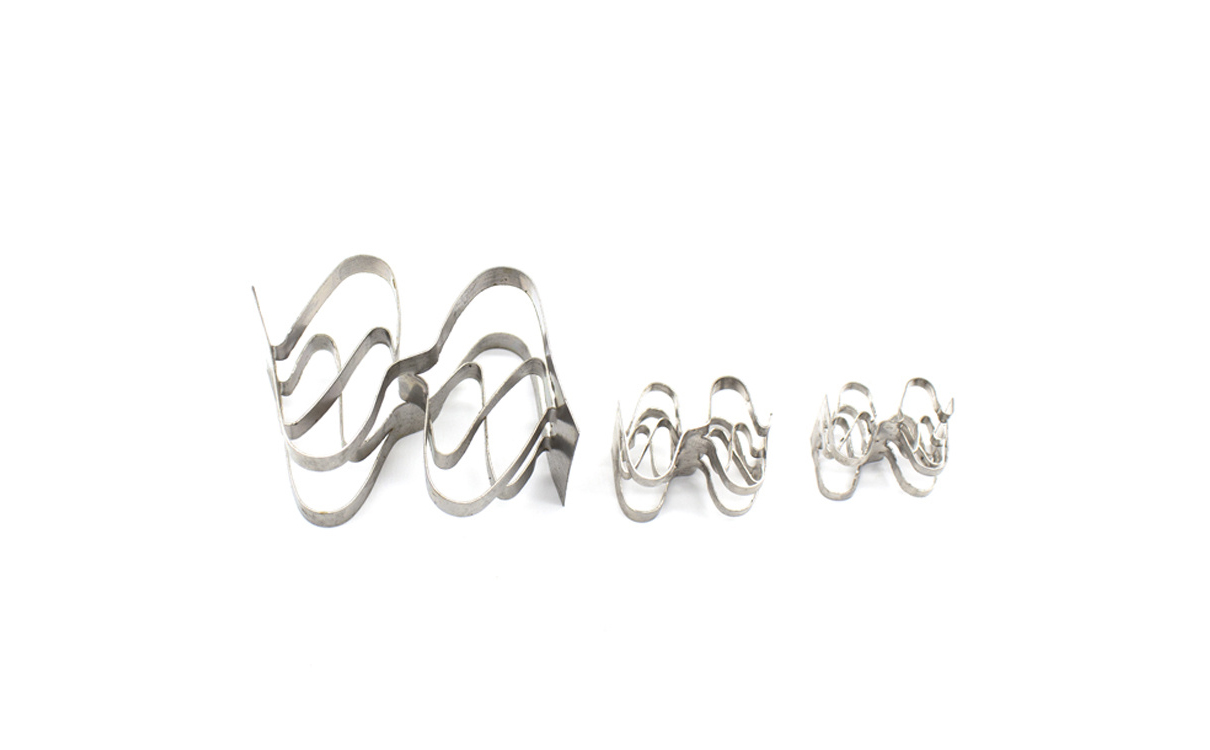

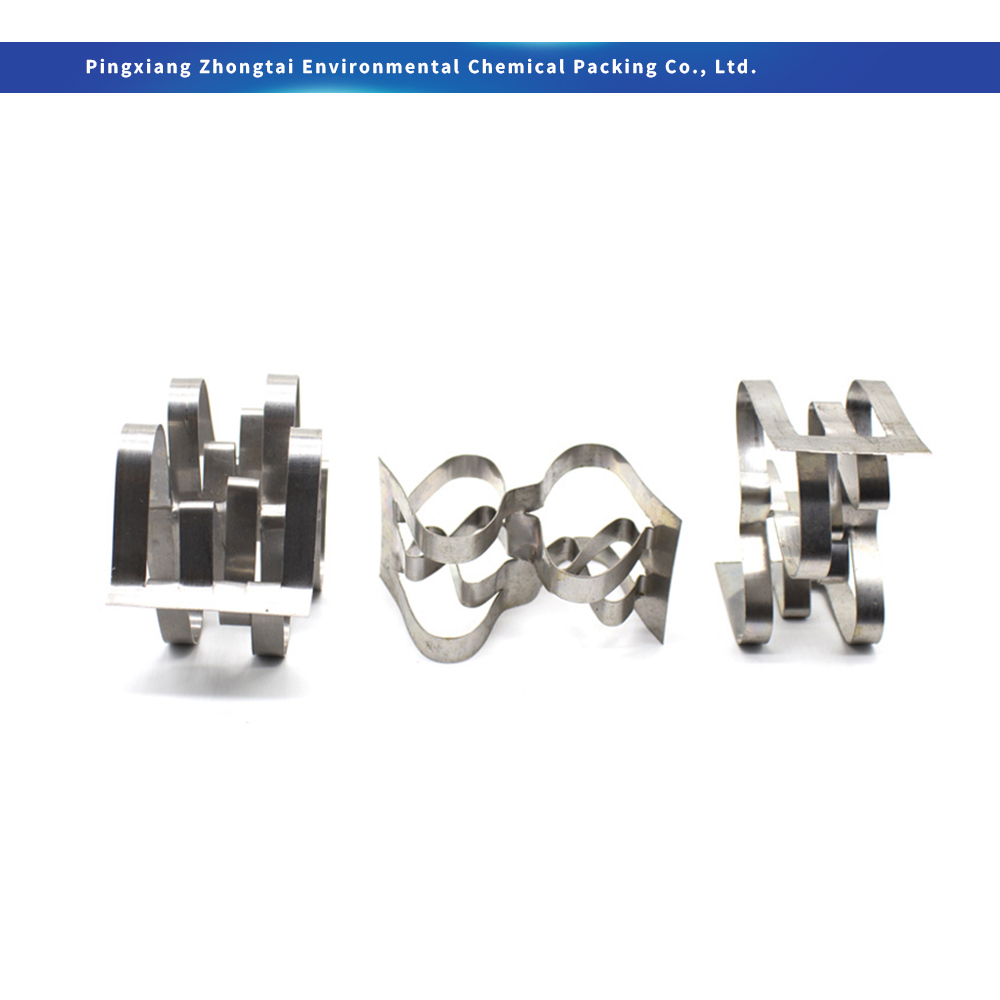

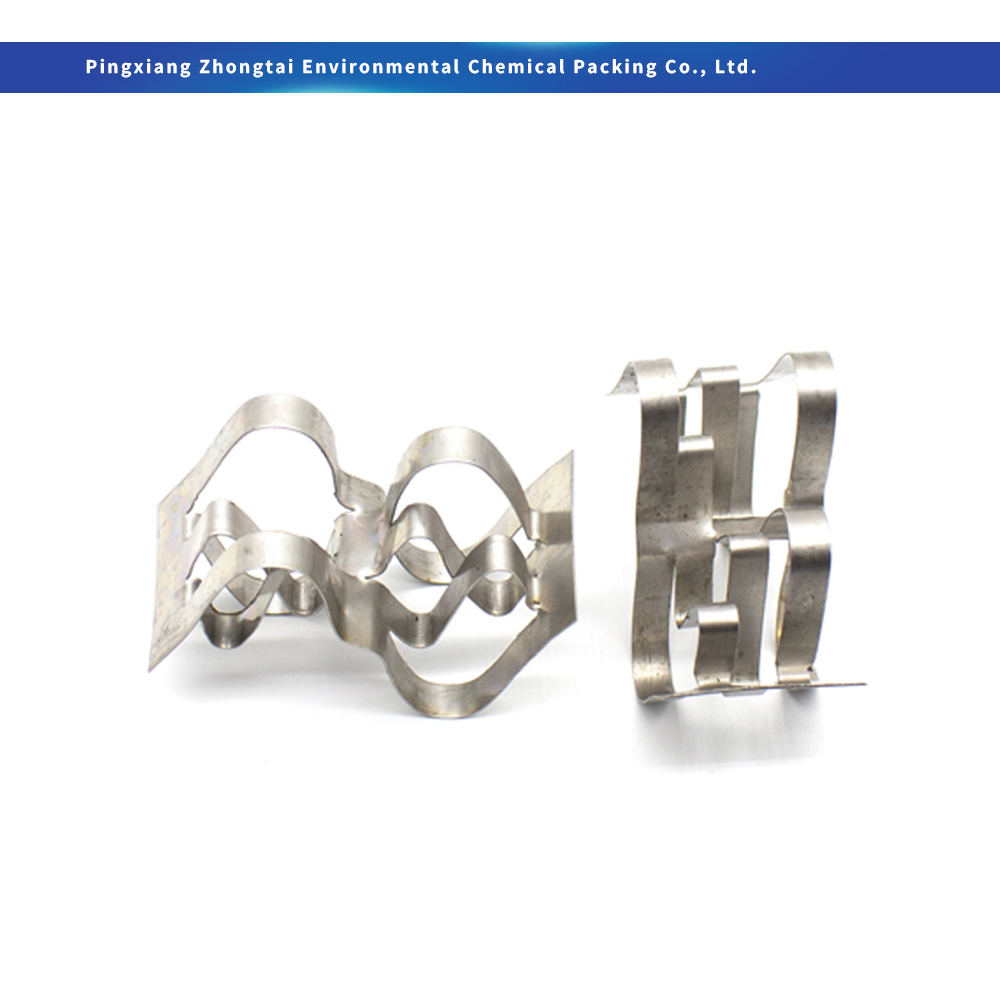

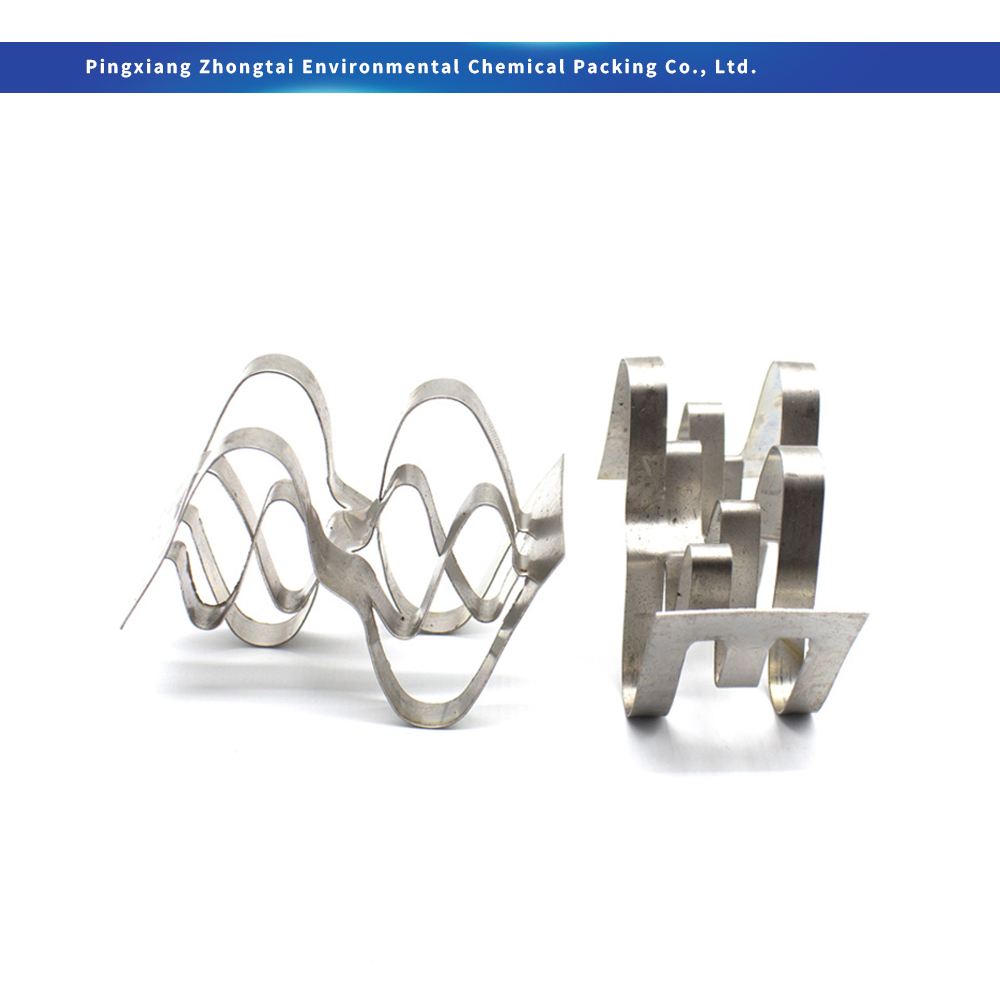

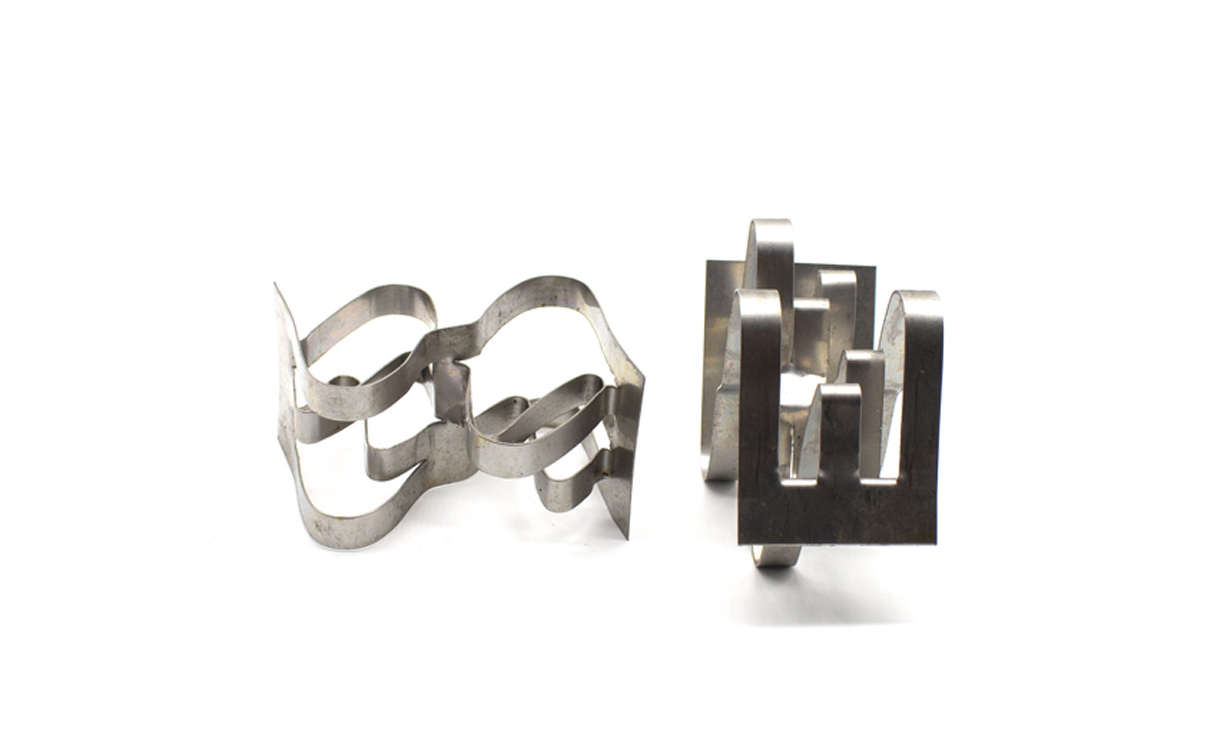

The Metal Super Raschig Ring, widely known as Raschig Super-Ring (RSR) or Conjugate Ring, represents the fourth generation of random tower packing. It combines the advantages of ring and saddle packings, engineered to deliver an optimal solution for high-performance, heavy-duty applications in the petrochemical, fertilizer, and environmental protection industries.

A key differentiator is its double-layer conjugated curved rib structure with alternating wave swings, which promotes turbulent film-type flow and effectively prevents droplet formation that typically interferes with large gas loads. Performance data shows it offers over 30% greater load capacity, almost 70% lower pressure drop, and more than 10% higher mass transfer efficiency compared to conventional packings.

Product Highlights

Exceptional Capacity & Efficiency: Over 30% greater load capacity and more than 10% higher mass transfer efficiency compared to conventional metal packings.
Ultra-Low Pressure Drop: Special alternating wave structure reduces resistance by almost 70%, significantly cutting energy consumption and operating costs.
Semi-Structured Packing Behavior: Unique alternating wave swings and open geometry promote homogeneous liquid film flow, preventing channeling and minimizing redistributor needs.
Anti-Fouling & Clogging Resistance: Smooth, open geometry effectively avoids droplet formation and is suitable for handling liquids contaminated with solids.
Superior Mechanical Strength: Robust double-layer design ensures high crushing strength and long-term structural stability under heavy loads.
High-Performance Material Options: Manufactured in 304, 316L, and specialty alloys including titanium and nickel for superior corrosion and heat resistance in aggressive environments.

Size (mm)	Bulk Quantity (pcs/m³)	Surface Area (m²/m³)	Void Ratio (%)	Bulk Density (kg/m³)	Packing Factor (m⁻¹)
15	180,000	315	96	340	356
20	145,000	250	97	275	274
25	46,500	180	98	250	191
30	32,000	150	98	220	159
38	13,750	120	98	190	127
50	9,500	100	98	165	106
76	4,300	80	98	150	85

Frequently Asked Questions

What is a Metal Super Raschig Ring?

The Metal Super Raschig Ring, also known as Raschig Super-Ring (RSR) or Conjugate Ring, is a fourth-generation random tower packing engineered with alternating wave swings to offer high mass transfer efficiency and low pressure drop.

How does the alternating wave design enhance performance?

The alternating wave and double-layer rib design creates a turbulent, homogeneous liquid film flow while preventing droplet formation, significantly lowering flow resistance and reducing liquid channeling.

What are the primary operational benefits over conventional packings?

Compared to conventional random packings, it delivers over 30% greater loading capacity, reduces pressure drop by nearly 70%, and provides more than 10% higher mass transfer efficiency.

Which industries commonly utilize this tower packing?

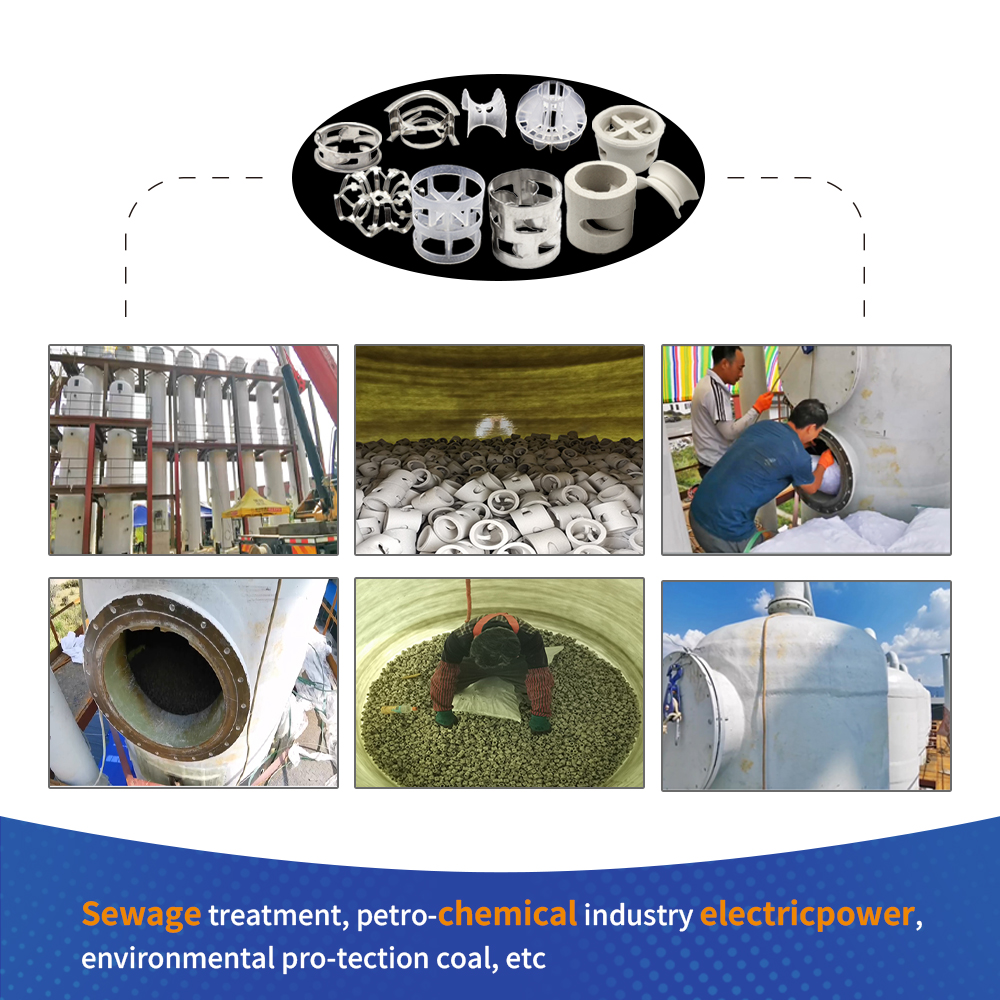

It is broadly utilized across petrochemical processing, chemical refining, fertilizer plants, gas separation systems, and environmental protection absorption columns.

What materials are available for Metal Super Raschig Rings?

It can be manufactured in a wide selection of metallic materials including standard stainless steel grades (304, 316L) as well as advanced alloys like titanium and nickel to meet harsh corrosion and thermal demands.
