Metal Bubble Cap Tray Product Description

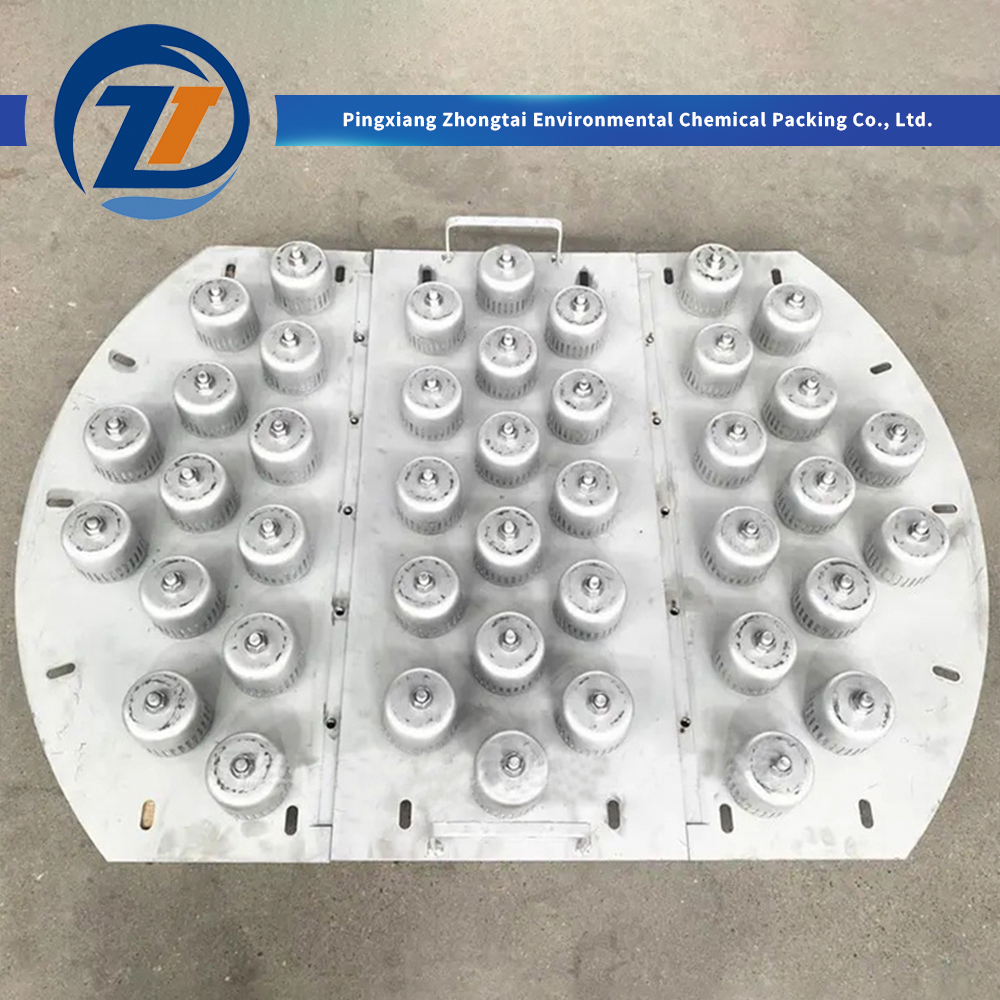

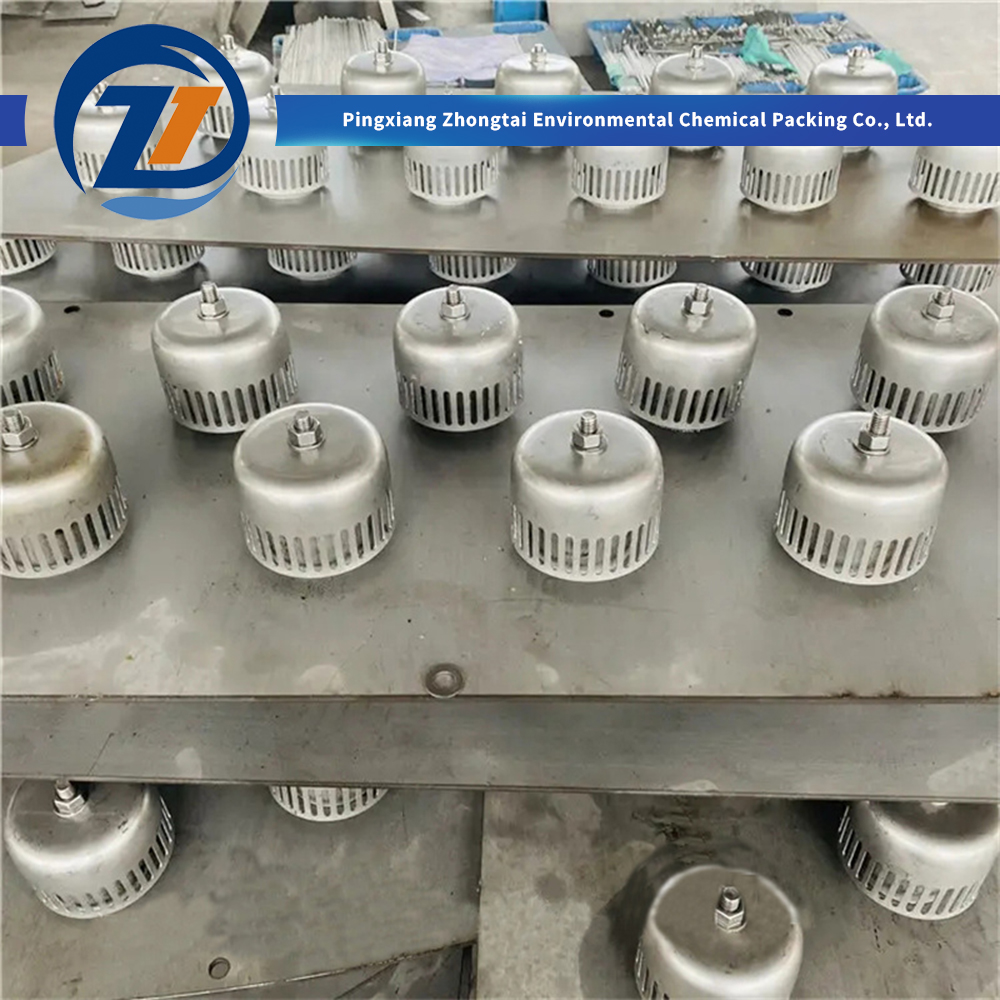

The Metal Bubble Cap Tray is the most traditional and reliable type of column tray, widely used in refining, chemical, and gas processing industries for over a century. Each tray consists of a deck with multiple risers (chimneys) and bubble caps mounted above. Vapor rises through the risers and is turned downward by the cap, then dispersed through slots or serrations into the surrounding liquid. This design ensures positive liquid seal and stable gas‑liquid contact across an extremely wide operating range. Although modern trays may offer higher capacity, the Bubble Cap Tray remains unsurpassed for ultra‑high turndown ratios, low‑vapor‑rate operations, and applications where weeping cannot be tolerated, such as in batch distillation, reactive distillation, and heavily fluctuating feed conditions.
Product Highlights
-
Ultra‑High Turndown Ratio: Maintains stable tray efficiency from less than 10% to full design load, achieving turndown ratios up to 5:1 or higher, far exceeding all other tray types.
-
Zero Weeping Operation: The built‑in liquid seal provided by the bubble caps prevents liquid from leaking through the tray deck even at minimal vapor rates, ensuring consistent product purity and yield.
-
Stable at Extremely Low Vapor Rates: Ideal for vacuum distillation, start‑up/shutdown scenarios, and operations with widely varying throughput, where sieve or valve trays would fail.
-
Excellent Liquid Distribution: The caps force vapor to pass through the liquid in a controlled manner, creating uniform frothing and mass transfer across the entire tray deck.
-
Robust & Long Service Life: All‑metal construction with no loose moving parts; caps are securely fastened and can withstand fouling, corrosion, and thermal cycling.
-
Flexible Design Options: Available with round caps for smaller columns and rectangular (tunnel) caps for larger diameters, with fully customizable riser heights and slot openings.
| Cap Type |
Cap Diameter (mm) |
Riser ID (mm) |
Slot Height (mm) |
Slot Width (mm) |
Typical Cap Spacing (mm) |
Tray Turndown Ratio |
| Round Bubble Cap |
50 |
32 |
15–25 |
3–6 |
75–125 |
Up to 5:1 |
| Round Bubble Cap |
80 |
50 |
20–30 |
4–8 |
120–180 |
Up to 5:1 |
| Round Bubble Cap |
100 |
65 |
25–40 |
5–10 |
150–200 |
Up to 5:1 |
| Rectangular (Tunnel) Cap |
100×250 |
– |
25–35 |
5–8 |
150–300 |
Up to 5:1 |
| Rectangular (Tunnel) Cap |
150×400 |
– |
30–45 |
6–10 |
200–400 |
Up to 5:1 |
Frequently Asked Questions
What is the primary advantage of a Metal Bubble Cap Tray over sieve or valve trays?
The main advantage is its ability to prevent weeping entirely even at exceptionally low vapor flow rates, maintaining high tray efficiency across a wide turndown ratio of up to 5:1 or higher.
How does a bubble cap tray prevent liquid from weeping?
Risers extend above the tray deck, covered by inverted caps. This configuration creates a permanent liquid seal that forces vapor to turn downward into the liquid, ensuring liquid cannot drain through the vapor passages even when vapor flow is halted.
In which applications are bubble cap trays preferred?
They are ideally suited for processes requiring wide turndown ratios, low liquid or vapor loads, batch distillation, vacuum operations, reactive distillation with high liquid holdup requirements, and systems subject to extreme feed rate variations.
What types of bubble caps are commonly available?
The two most common styles are standard round bubble caps, typically utilized in small to medium columns, and rectangular (tunnel) caps, which are ideal for larger column diameters and higher liquid capacities.
Can bubble cap trays handle corrosive or high-temperature environments?
Yes, they are manufactured using an all-metal construction without loose moving components, allowing fabrication from various grades of stainless steel and special alloys to resist severe corrosion, fouling, and thermal cycling.
